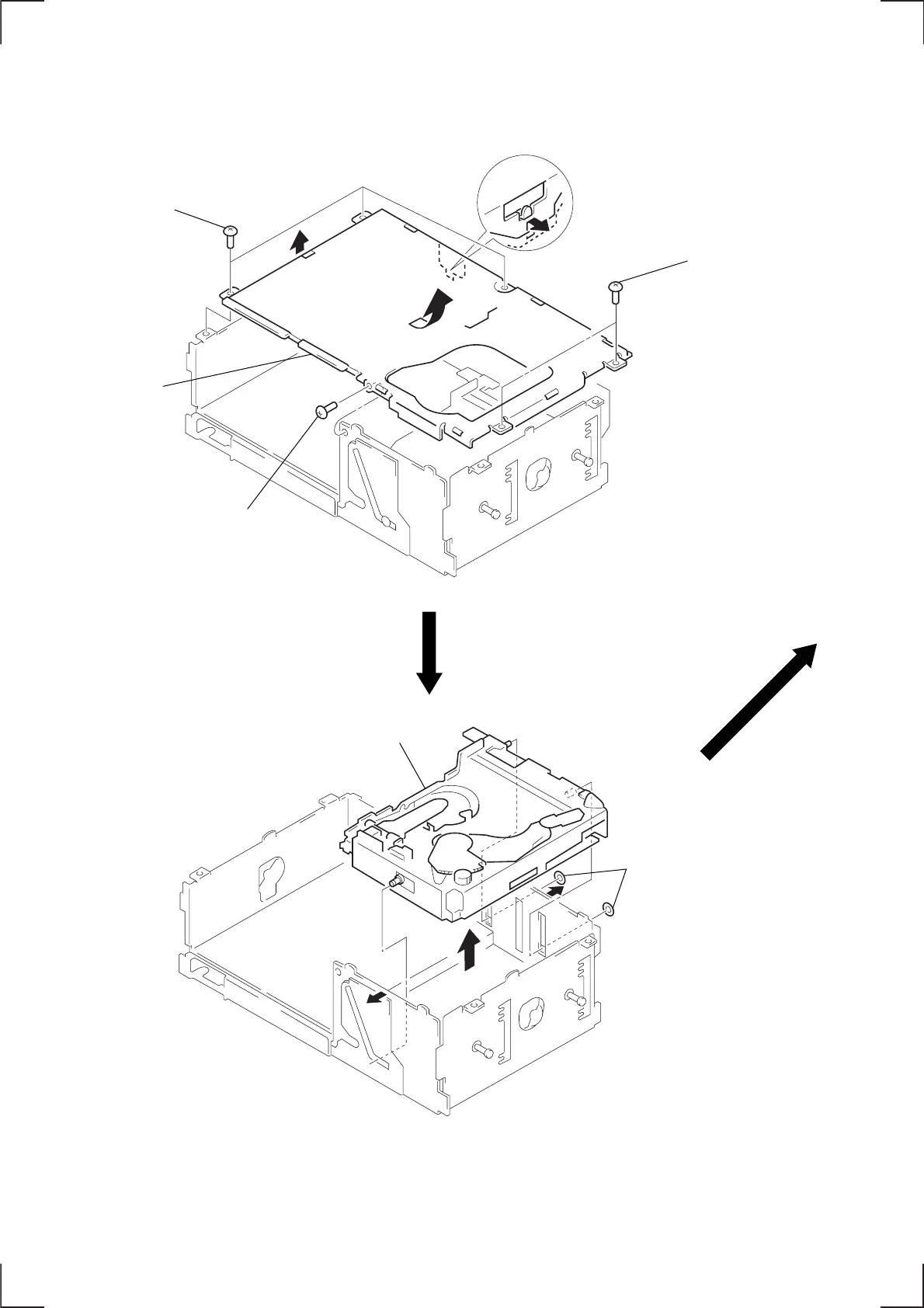

CASE (UPPER) ASS’Y
CHASSIS ASS’Y
1 three screws
(PTT2
× 4)
1 two screws
(PTT2 × 4)
2
4
Remove the case
(upper) ass’y of
the arrow
B .
3 Remove the edge
of the arrow A .
1 screw
(PTT2 × 4)
A
B
3 chassis ass’y
1 two polyethylene washers
2
2
