Sony CDX-CA650 - Schematic Diagrams; CD Mechanism Section Schematic

2020
CDX-CA650/CA650V/CA650X
IC B/D
IC B/D
• Refer to page 17 for Waveforms.

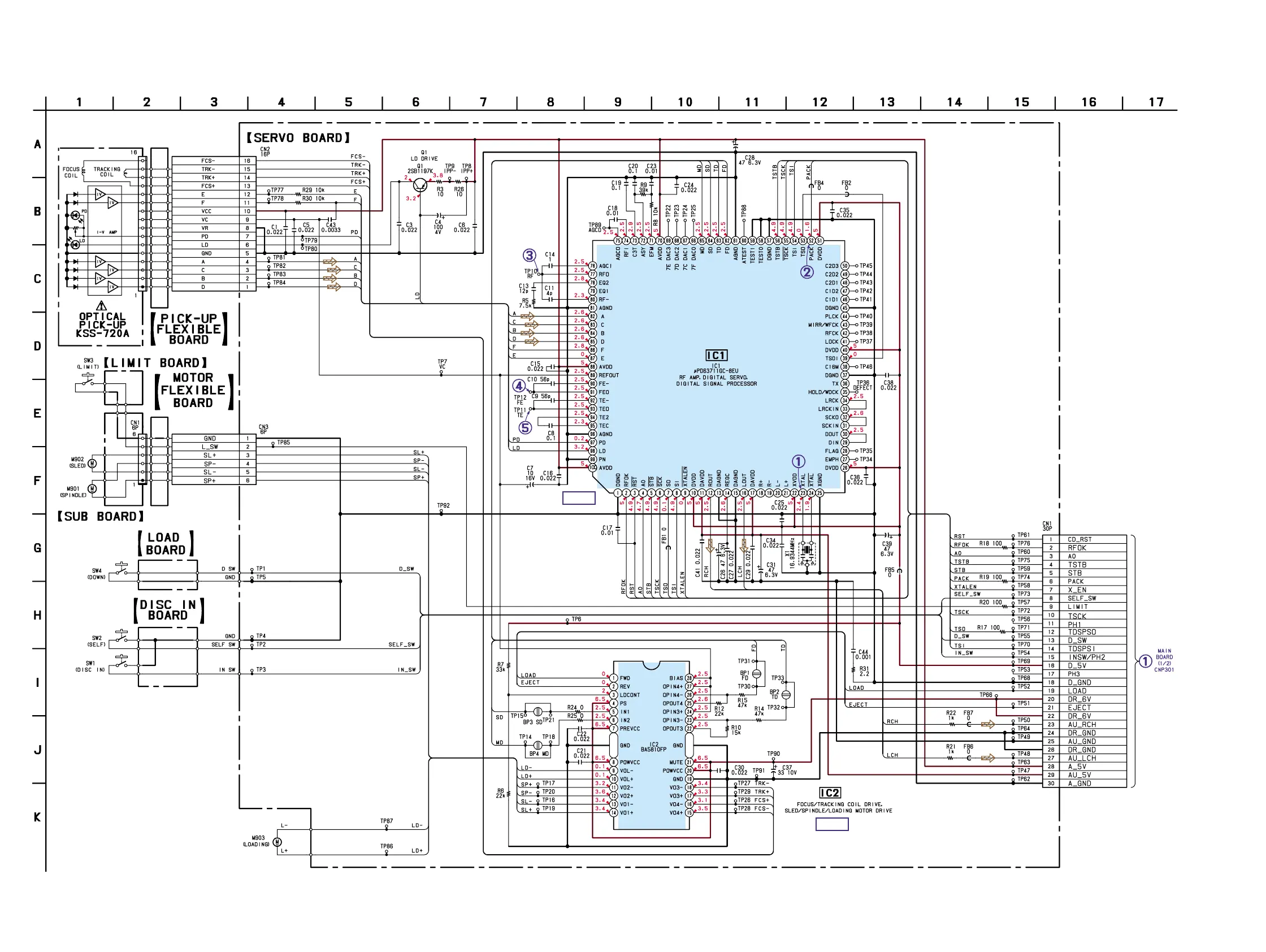

3-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION — • Refer to page 29 for IC Block Diagrams.
Note:
• Voltage is dc with respect to
ground under no-signal conditions.
no mark : CD PLAY
(Page 22)
