Sony CDX-CA650 - CD Mechanism Views

34
CDX-CA650/CA650V/CA650X
103
101
102
104
105
108
107
109
106
#9
#9
#11
#11
#11
#9
#10
M903
C
C

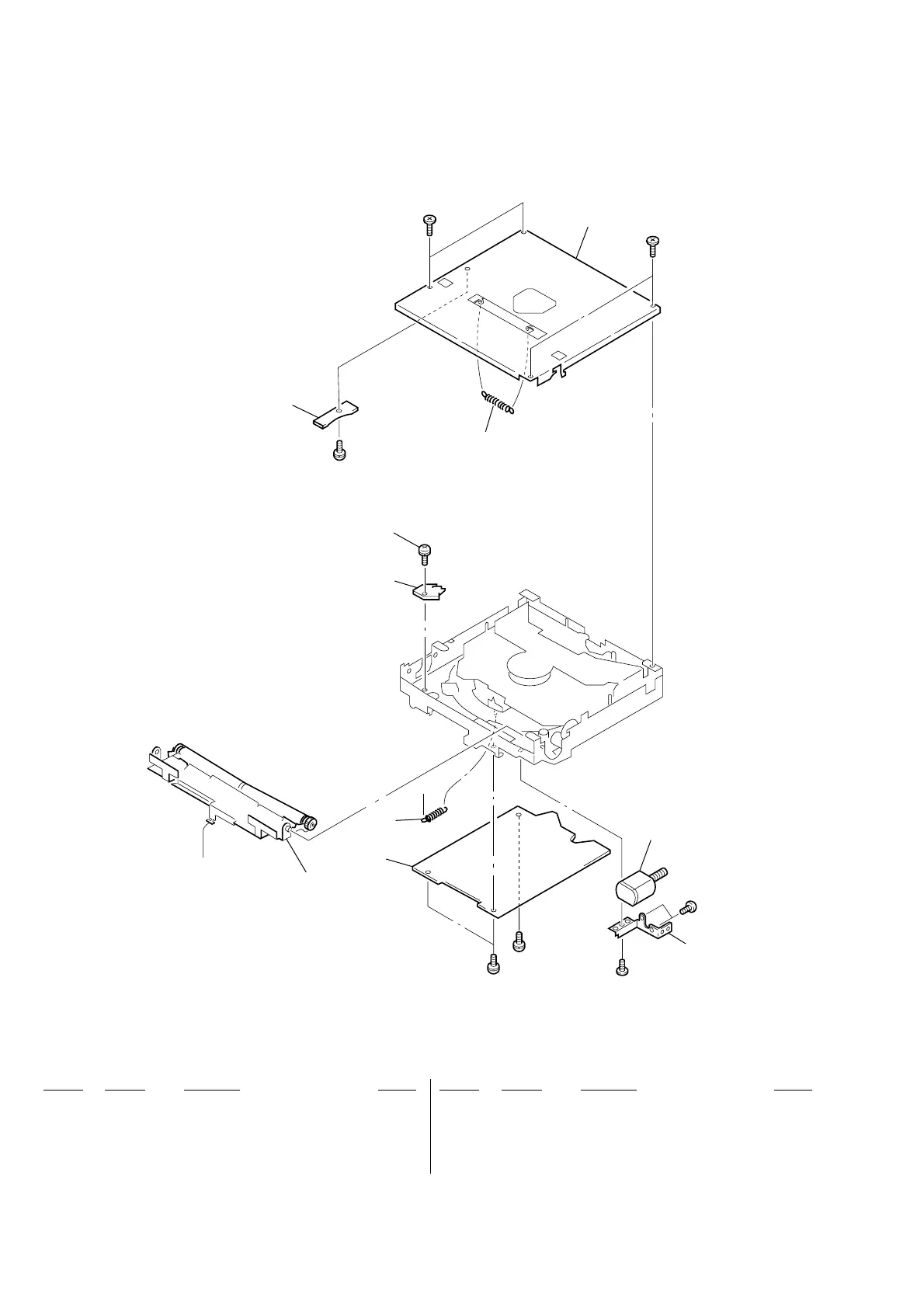

4-3. CD MECHANISM SECTION (1)
(MG-393X-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3315-247-A CHASSIS (T.U) ASSY
102 3-931-909-01 SPRING (LR), TENSION
* 103 1-659-836-11 DISC IN BOARD
104 3-338-737-01 SCREW (2X3), +PS
* 105 1-659-837-11 LOAD BOARD
* 106 3-039-629-01 BRACKET (MOTOR)
* 107 A-3283-047-A SERVO BOARD, COMPLETE
108 3-225-784-01 SPRING (RA3), TENSION
109 A-3315-040-A ROLLER ASSY, ARM
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
