Sony CDX-CA650 - Printed Wiring Board -Key Section (CA650 V)

2828
CDX-CA650/CA650V/CA650X

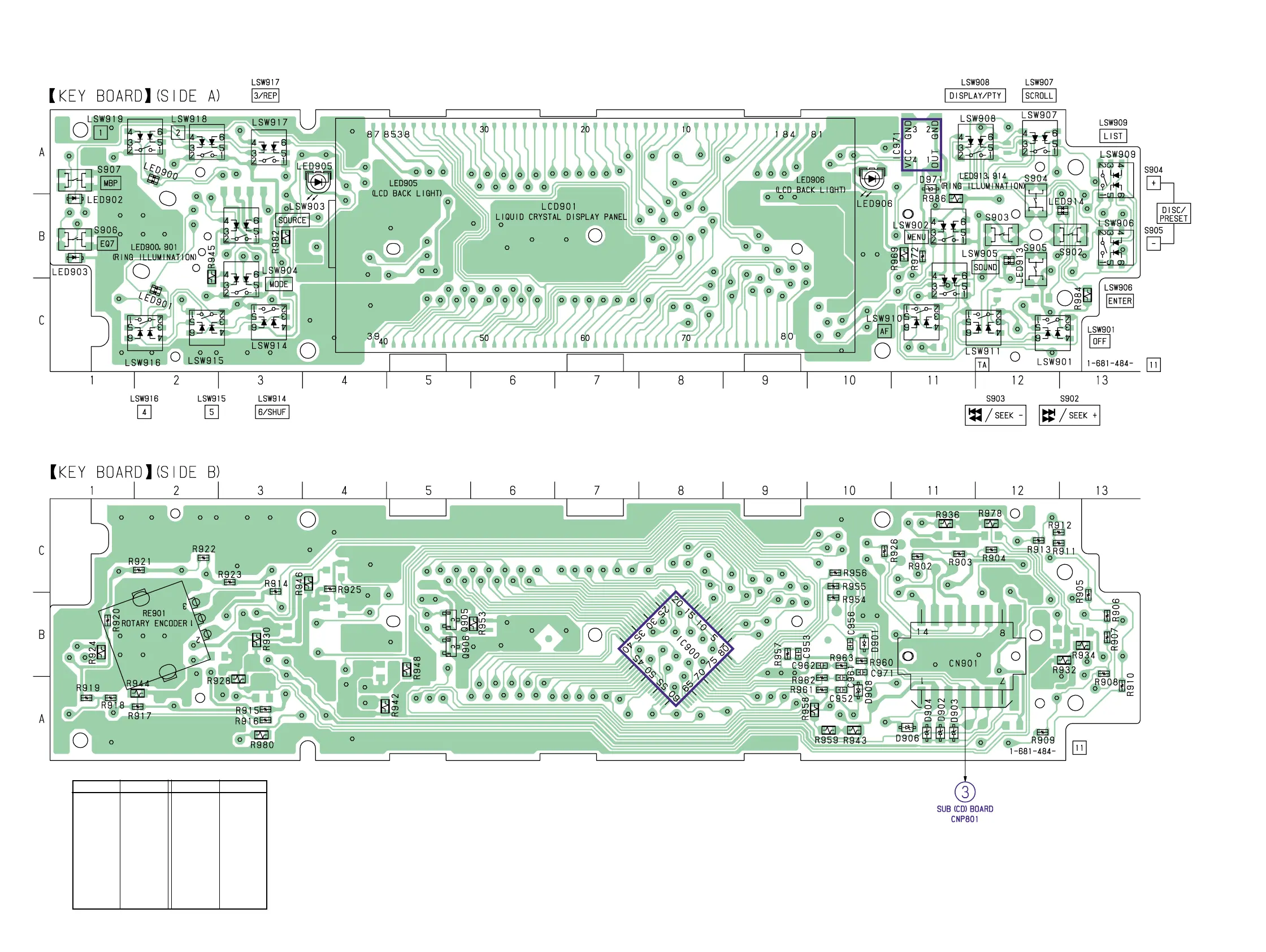

3-15. PRINTED WIRING BOARD — KEY SECTION (CA650V) —
(Page 24)
Ref. No. Location
(D901) B-10
(D902) C-11
(D903) C-11
(D904) C-11
(D906) C-11
(D908) C-10
D971 A-11
(IC900) B-8
IC971 A-10
• Semiconductor Location
Ref. No. Location
LED900 A-2
LED901 C-2
LED902 B-1
LED903 B-1
LED905 A-4
LED906 A-10
LED913 B-12
LED914 B-13
(Q905) B-5
(Q906) B-5
( ) : SIDE B
