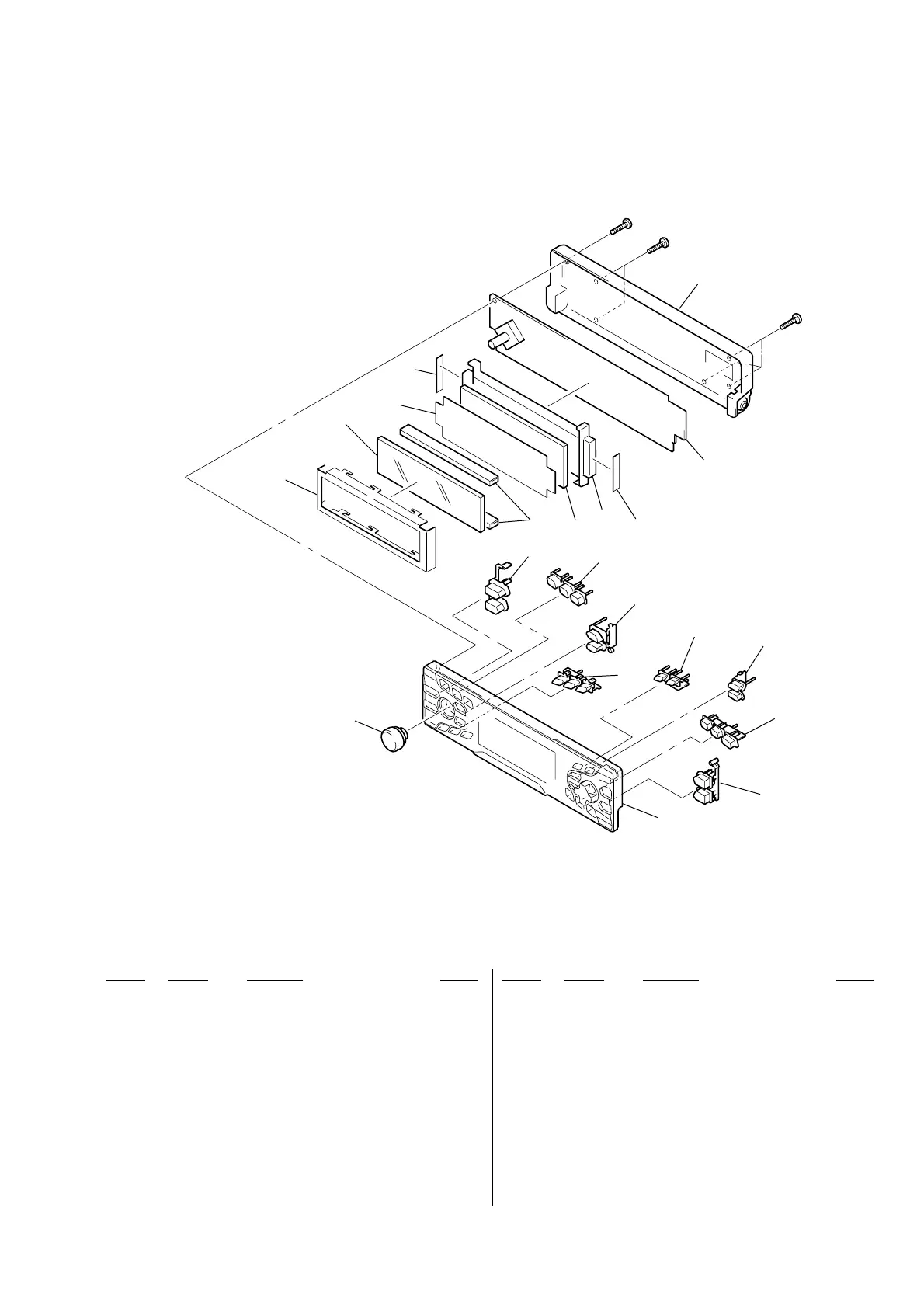

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 3-223-789-01 BUTTON (DSPL/SCRL)
52 3-223-791-01 BUTTON (MENU/SOUND)
53 3-223-792-01 BUTTON (AF/TA/OFF)
54 3-223-790-01 BUTTON (LIST/ENTER)
55 X-3380-529-1 SUB ASSY, PANEL (CA650X)
55 X-3380-530-1 SUB ASSY, PANEL (CA650)
55 X-3380-531-1 SUB ASSY, PANEL (CA650V)
* 56 3-223-798-01 HOLDER (LCD)
57 X-3380-079-1 PANEL ASSY, FRONT BACK
58 X-3380-080-1 KNOB (VOL) ASSY (CA650V/CA650X)
58 X-3380-081-1 KNOB (VOL) ASSY (CA650)
59 3-223-751-01 BUTTON (4-6)
60 3-223-753-01 BUTTON (SOURCE/MODE)
61 3-223-750-01 BUTTON (1-3)
62 3-223-752-11 BUTTON (DSO/EQ7)
* 63 3-223-799-01 PLATE (LCD), GROUND
64 1-694-780-11 CONDUCTIVE BOARD, CONNECTION
* 65 3-223-800-01 ILLUMINATOR (LCD) (CA650/CA650X)
* 65 3-231-293-01 ILLUMINATOR (LCD) (CA650V)
* 66 3-223-797-01 PLATE (LCD), LIGHT GUIDE
* 67 3-231-648-01 SHEET (LIGHT INTERCEPTION) (CA650V)
LCD901 1-804-292-11 DISPLAY PANEL, LIQUID CRYSTAL (CA650)
LCD901 1-804-292-31 DISPLAY PANEL, LIQUID CRYSTAL (CA650X)
LCD901 1-804-293-11 DISPLAY PANEL, LIQUID CRYSTAL (CA650V)
