Sony CDX-CA650 - Printed Wiring Board -Main Section

21 21
CDX-CA650/CA650V/CA650X

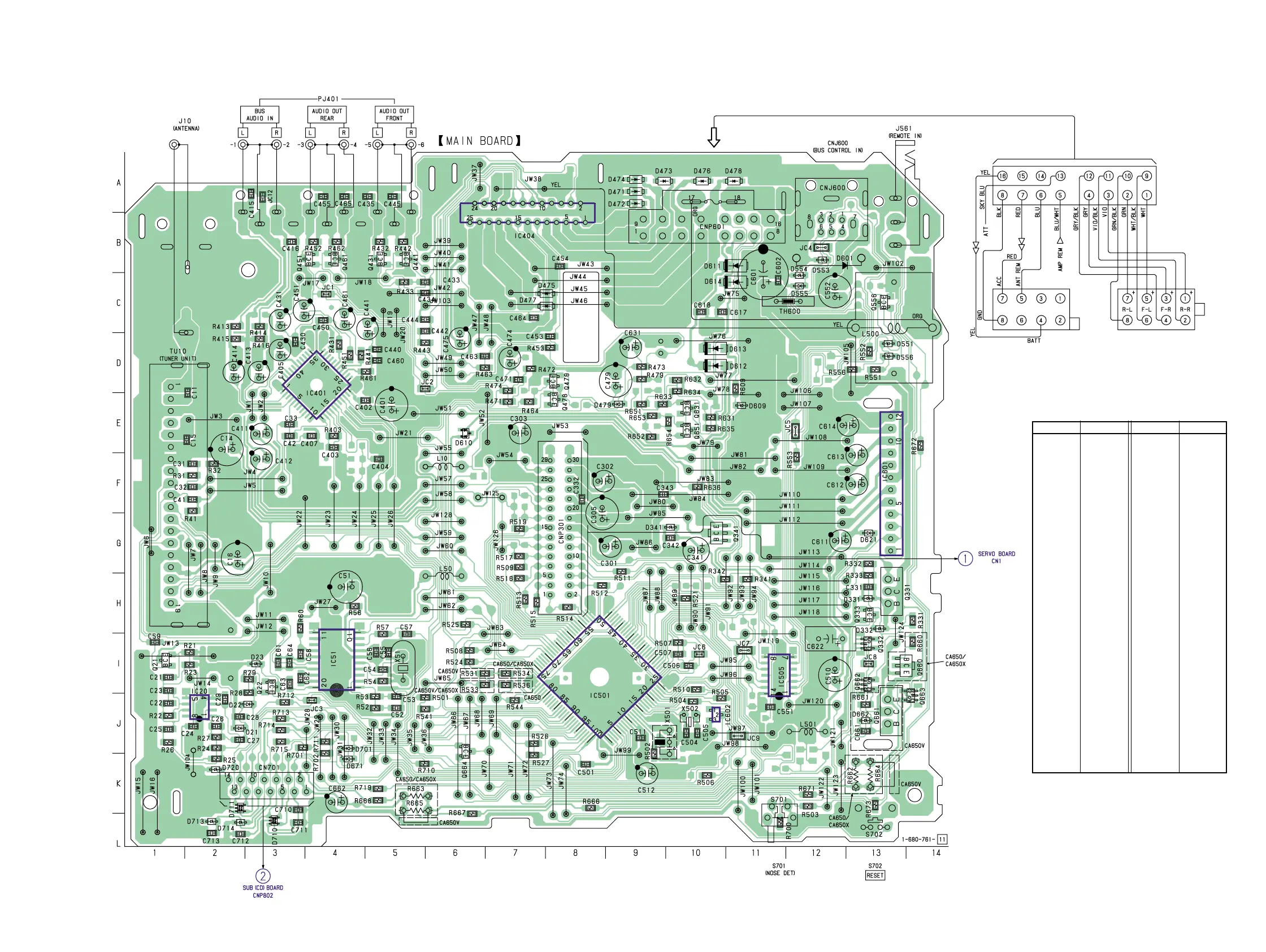

3-8. PRINTED WIRING BOARD — MAIN SECTION —
D713 L-2
D714 L-2
D720 K-2
IC20 I-1
IC51 I-4
IC401 D-4
IC404 B-7
IC501 I-8
IC505 I-11
IC601 F-13
IC602 J-10
Q21 J-2
Q22 I-3
Q331 H-13
Q332 I-13
Q333 H-13
Q341 G-10
Q431 B-5
Q441 B-5
Q451 B-4
Q461 B-4
Q478 E-8
Q479 E-9
Q556 C-13
Q631 E-10
Q651 E-10
Q660 I-14
Q661 J-13
Q662 I-13
Q663 J-14
Q664 J-6
Ref. No. Location
D21 J-2
D22 J-2
D23 I-3
D331 H-13
D332 H-13
D341 G-9
D471 A-9
D472 A-9
D473 A-9
D474 A-9
D475 C-8
D476 A-10
D477 C-8
D478 A-11
D479 D-8
D551 D-13
D553 B-12
D554 C-12
D555 C-12
D556 D-13
D601 B-12
D609 E-11
D610 E-6
D611 B-11
D612 D-10
D613 D-10
D614 C-11
D621 G-13
D662 J-13
D671 K-4
D701 J-4
D710 L-3
D711 K-2
• Semiconductor Location
Ref. No. Location
(Page 24)
(Page 19)
