5
CDX-GT30W/GT300/GT300EE/GT300S/GT350/GT350S
SECTION 1
GENERAL
6

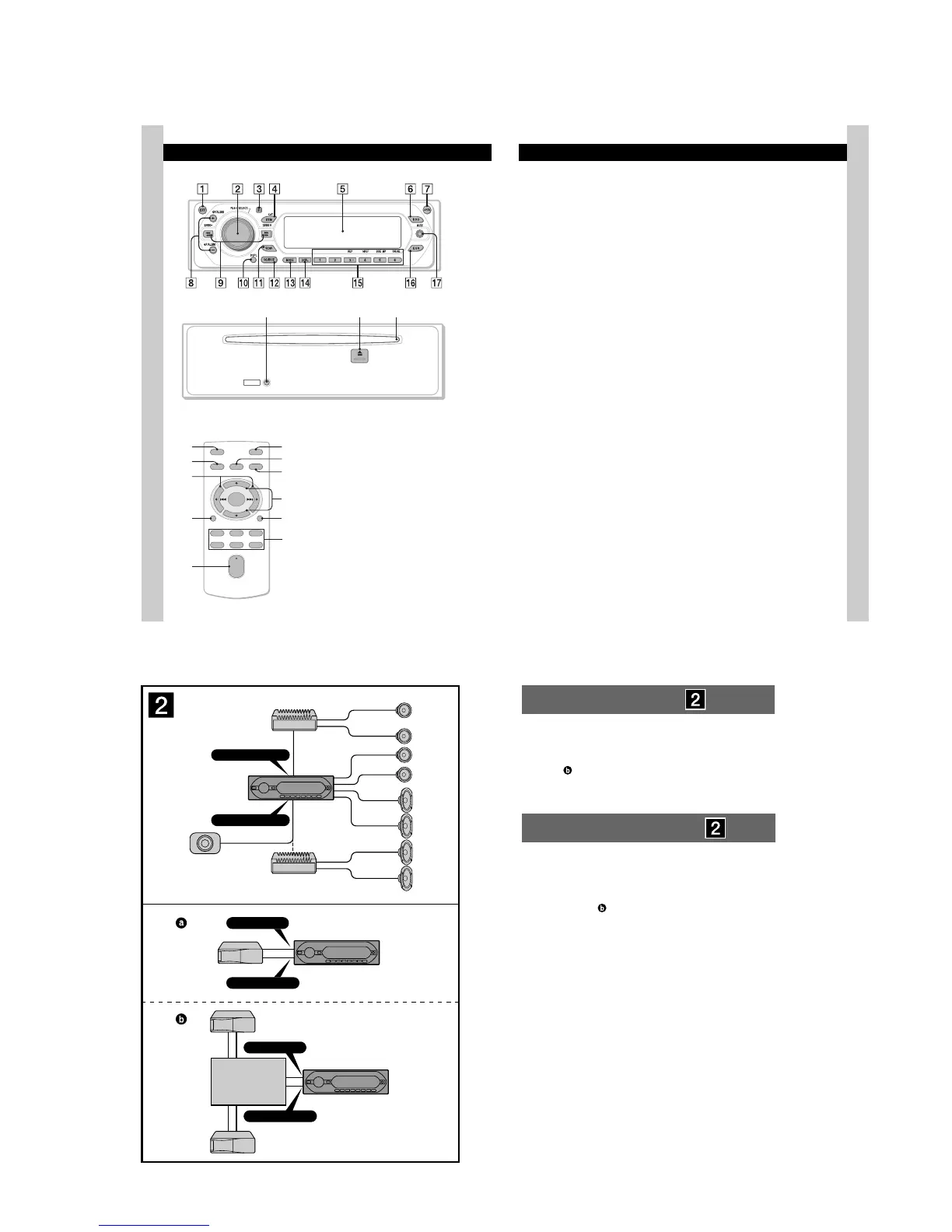

Location of controls and basic operations
Main unit
Front panel removed
Card remote commander
RM-X151
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To pow e r off; stop the source.
B Volume control dial/select button 9
To adjust volume (rotate); select setup items
(press and rotate).
C Receptor for the card remote
commander
D BTM/CAT*
1
button 8
To start the BTM function (press and hold).
E Display window
F DSO button 2
To select the DSO mode (1, 2, 3 or OFF).
The larger the number, the more enhanced
the effect.
G OPEN button 5
CDX-GT30W
RESET
ql w;qk
OFF
DSPL
SCRL
SEL
SOURCE
MODE
132
465
AT T
VO L
+
–
+
–
qs
wf
qd
1
qf
wa
q;
wd
ws
wh
wg
7
H GP*
2
/ALBM*
3
+/– buttons*
4
To skip groups/albums (press); skip groups/
albums continuously (press and hold).
I SEEK –/+ buttons
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fast-
forward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
J DSPL (display) button 8
To change display items.
K SENS button
To improv e we a k reception: LOCAL/
MONO.
L SOURCE button
To pow e r on; change the source (Radio/CD/
MD*
5
/AUX/XM*
1
).
M MODE button 8, 10
To select the radio band (FM/AM)/select the
XM tuner band (mode)*
1
/select the unit*
6
.
N SCRL (scroll) button 8
To scroll the display item.
O Number buttons
CD/MD*
5
:
(3): REP 8
(4): SHUF 8
(5): BBE MP*
7
3
To a c tiva te the BBE MP function, set
“BBEMP-ON.” To cancel, set
“BBEMP-OFF.”
(6): PA U S E *
7
To p a use playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
P EQ3 (equalizer) button 9
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
Q AUX input jack 10
To connect a portable audio device.
R RESET button 4
S Z (eject) button 5
To eject the disc.
T Disc slot 5
To insert the disc.
The following buttons on the card remote
commander have also different buttons/functions
from the unit.
wa < (.)/, (>) buttons
To control CD/radio, the same as (SEEK)
–/+ on the unit.
ws VOL (volume) +/– button
To adjust volume.
wd ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wf SEL (select) button
The same as the select button on the unit.
wg M (+)/m (–) buttons
To control CD, the same as
(GP/ALBM) +/– on the unit.
wh Number buttons
To receive stored stations (press); store
stations (press and hold).
*1
When the XM tuner is connected.
*2
When an ATRAC CD is played.
*3
When an MP3/WMA is played.
*4
If the changer is connected, the operation is
different, see page 10.
*5
When an MD changer is connected.
*6
When a CD/MD changer is connected.
*7
When playing back on this unit.
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless
(SOURCE)
on the unit is pressed, or a disc is
inserted to activate the unit first.
Tip
For details on how to replace the battery, see
“Replacing the lithium battery of the card remote
commander” on page 13.
A
B
AUDIO OUT FRONT
AUDIO OUT REAR
*
BUS AUDIO IN
BUS CONTROL IN
BUS AUDIO IN
BUS CONTROL IN
Source selector*
Selctor de fuente*
XA-C30
*
not supplied
no suministrado
*
AUDIO OUT SUB/REAR
Connection example
Notes
(2-
A
)
• Be sure to connect the ground lead before connecting the
amplifi er.
• The alarm will only sound if the built-in amplifi er is used.
Tip
(2-
B
-
)
For connecting two or more CD/MD changers, the source
selector XA-C30 (not supplied) is necessary.
Ejemplo de conexiones
Notas
(2-
A
)
• Asegúrese de conectar primero el cable de conexión a masa
antes de realizar la conexión del amplifi cador.
• La alarma sonará únicamente si se utiliza el amplifi cador
incorporado.
Sugerencia
(2-
B
-
)
Si desea conectar dos o más cambiadres de CD/MD, necesitará
el selector de fuente XA-C30 (no suministrado).
• LOCATION OF CONTROL (CDX-GT30W)
• CONNECTIONS (CDX-GT30W)
