28

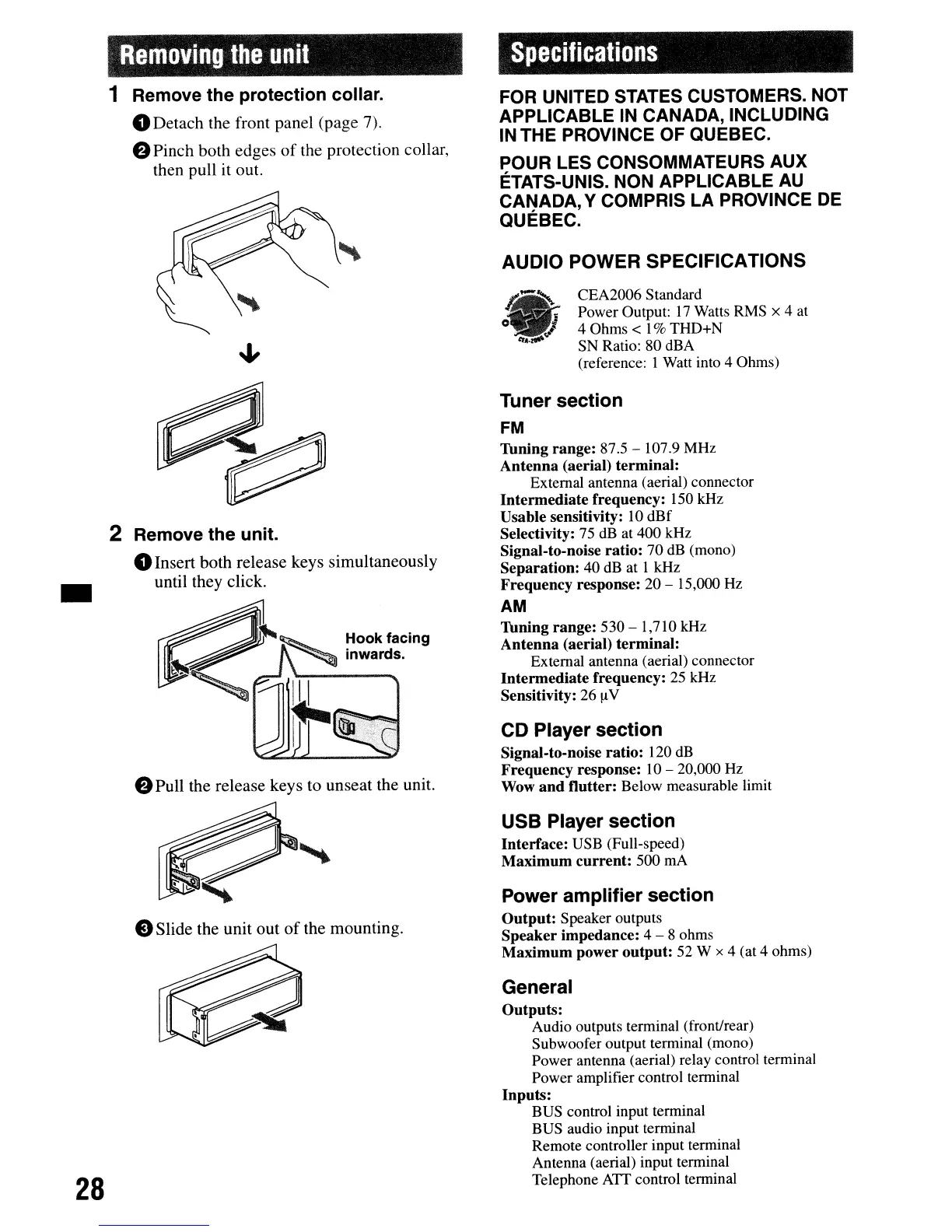

Removing
the
unit
1 Remove the protection collar.
oDetach the front panel (page 7).
8 Pinch both edges
of
the protection collar,
then pull
it
out.
2 Remove the unit.
oInsert both release keys simultaneously
until they click.
8 Pull the release keys to unseat the unit.
eSlide the unit out
of
the mounting.
Specifications
FOR UNITED STATES CUSTOMERS. NOT
APPLICABLE IN CANADA, INCLUDING
IN
THE
PROVINCE OF QUEBEC.
POUR LES CONSOMMATEURS AUX
ETATS-UNIS. NON APPLICABLE AU
CANADA,Y COMPRIS LA PROVINCE DE
QUEBEC.
AUDIO POWER SPECIFICATIONS
CEA2006
Standard
Power Output:
17
Watts RMS x 4 at
4 Ohms
< 1%
THD+N
SN Ratio:
80
dBA
(reference: 1 Watt into 4 Ohms)
Tuner section
FM
TIming range: 87.5 - 107.9
MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 150 kHz
Usable sensitivity: 10
dBf
Selectivity: 75 dB at
400
kHz
Signal-to-noise ratio:
70
dB (mono)
Separation:
40
dB at 1 kHz
Frequency response:
20
- 15,000 Hz
AM
Thning range: 530
-1,710
kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Sensitivity:
26
!l
V
CD Player section
Signal-to-noise ratio: 120 dB
Frequency response: 10 - 20,000 Hz
Wow
and
flutter: Below measurable limit
USB Player section
Interface: USB (Full-speed)
Maximum current: 500
rnA
Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 - 8 ohms
Maximum power output: 52 W x 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Inputs:
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna (aerial) input terminal
Telephone ATT control terminal
