Sony CDX-L250 - Printed Wiring Boards - Display Section; Display Section Printed Wiring Board Layout

2828
CDX-L250/L430X

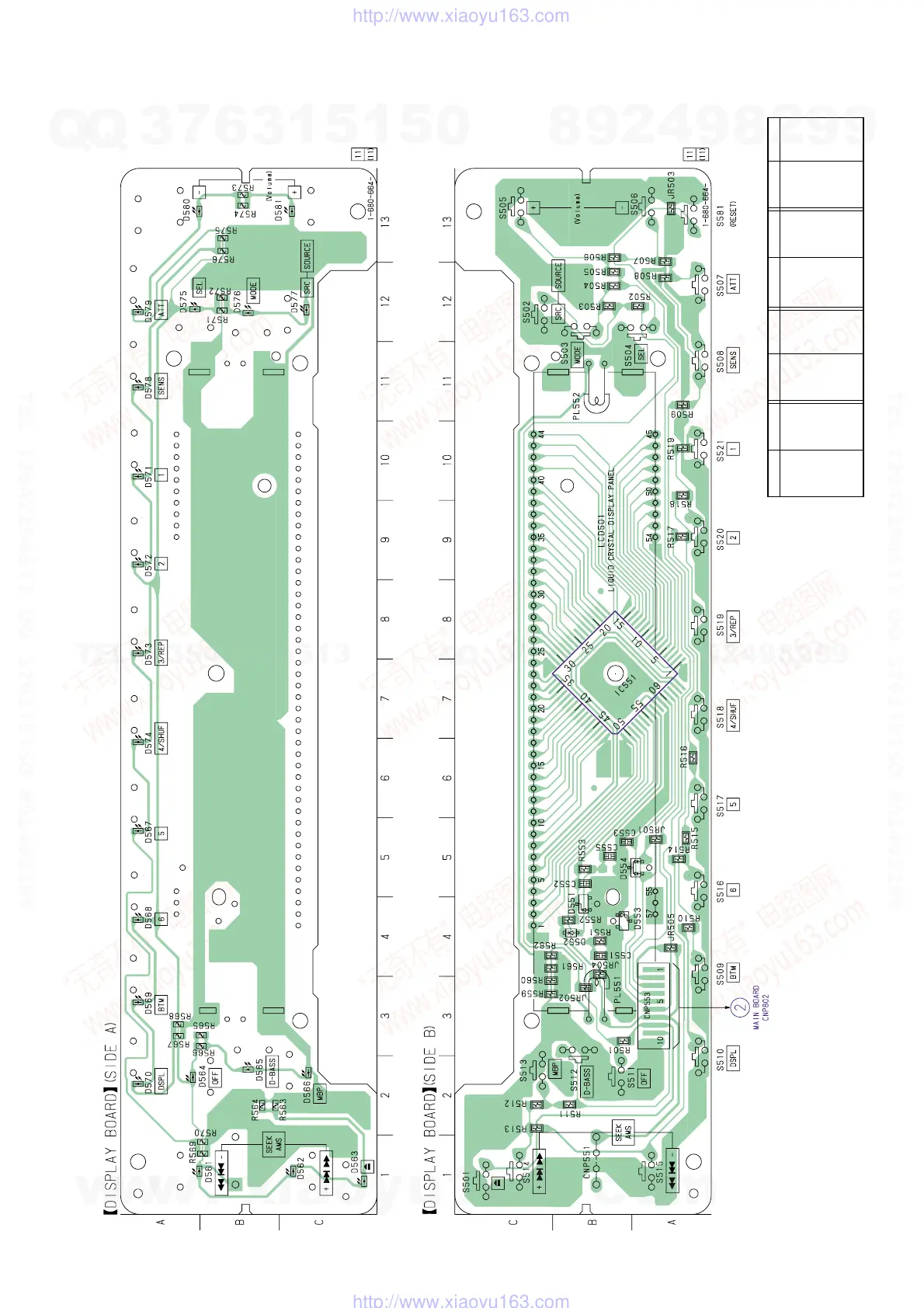

4-11. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 21 for Circuit Boards Location.
(Page 25)
(D551) B-4 D552 B-4 (D553) B-4 (D554) A-5 D555 B-13 D561 B-1 D562 C-1 D563 C-1 Ref. No. Location
• Semiconductor Location
Ref. No. Location
( ): SIDE B
D564 A-2 D565 B-2 D566 C-2 D567 A-5 D568 A-4 D569 A-3 D570 A-2 D571 A-10
Ref. No. Location
D572 A-9 D573 A-8 D574 A-6 D575 A-12 D576 B-12 D577 C-12 D578 A-11 D579 A-12
D580 A-13 D581 C-13 (IC551) B-7 IC552 C-13
Ref. No. Location
