32
CDX-L250/L430X
1
2
3
5
6
6
7
11
12
10
9
8
TU601
#1
#1
#1
#1
#2
#2
#2
#2
#2
#3
#2
F901
MG-393X-121//K
4
SECTION 5
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark

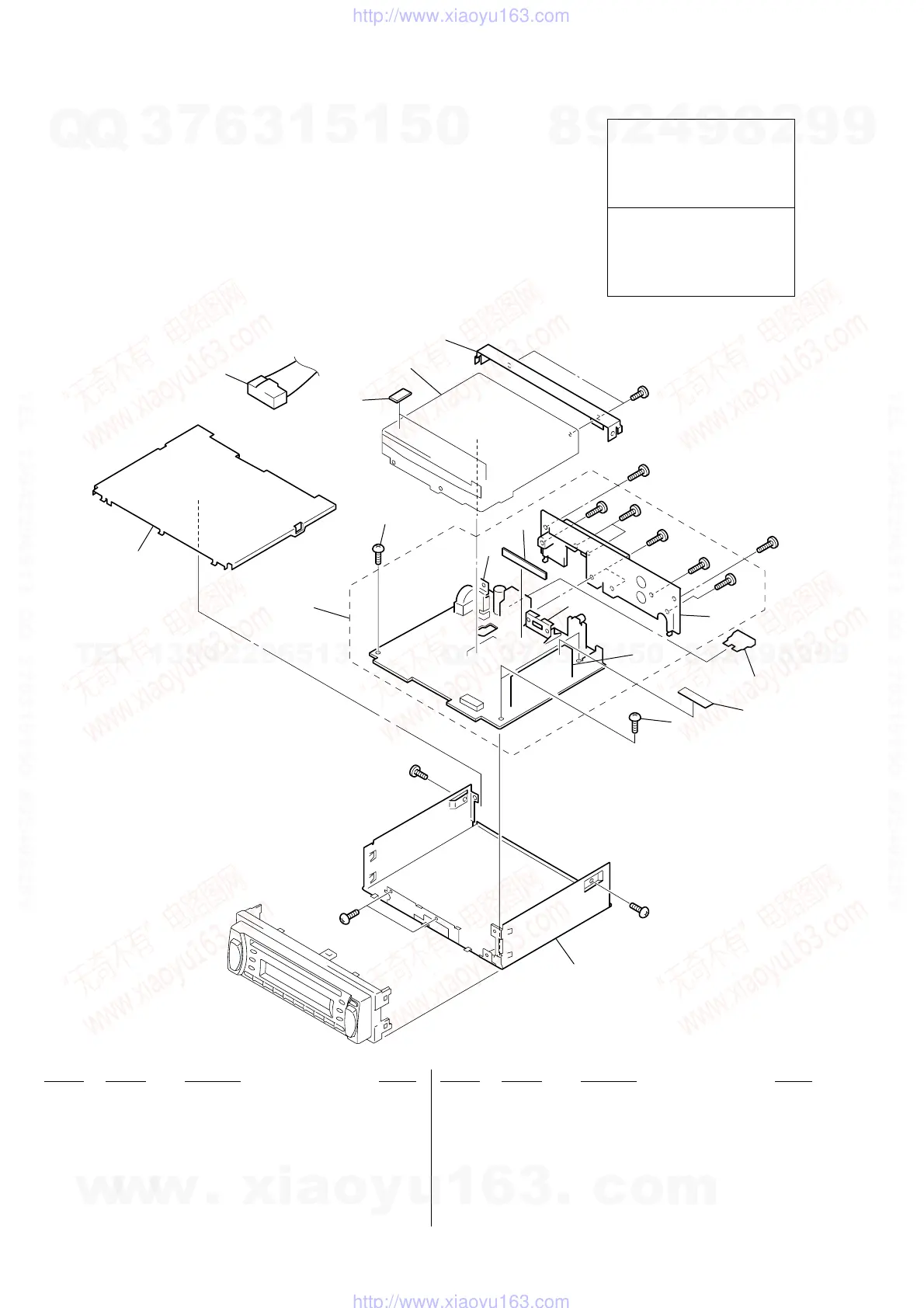

5-1. CHASSIS SECTION
R
Ref. No. Part No. Description Remark
R
* 1 3-224-612-11 CHASSIS (CD)
* 2 3-224-309-01 COVER
3 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
* 4 3-024-285-01 CUSHION (RUBBER)
* 5 3-041-173-11 BRACKET (CD)
6 3-922-535-11 SCREW (+BTT)
* 7 A-3283-109-A MAIN BOARD, COMPLETE (L250)
* 7 A-3283-111-A MAIN BOARD, COMPLETE (L430X)
* 8 3-224-613-01 HEAT SINK
* 9 3-019-565-01 BRACKET (IC)
* 10 1-680-663-11 SPEAKER BOARD
* 11 3-041-261-01 BRACKET (TR)
* 12 3-048-259-01 SHEET (E)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 1-693-511-11 TUNER UNIT
