CDX-L250/L430X

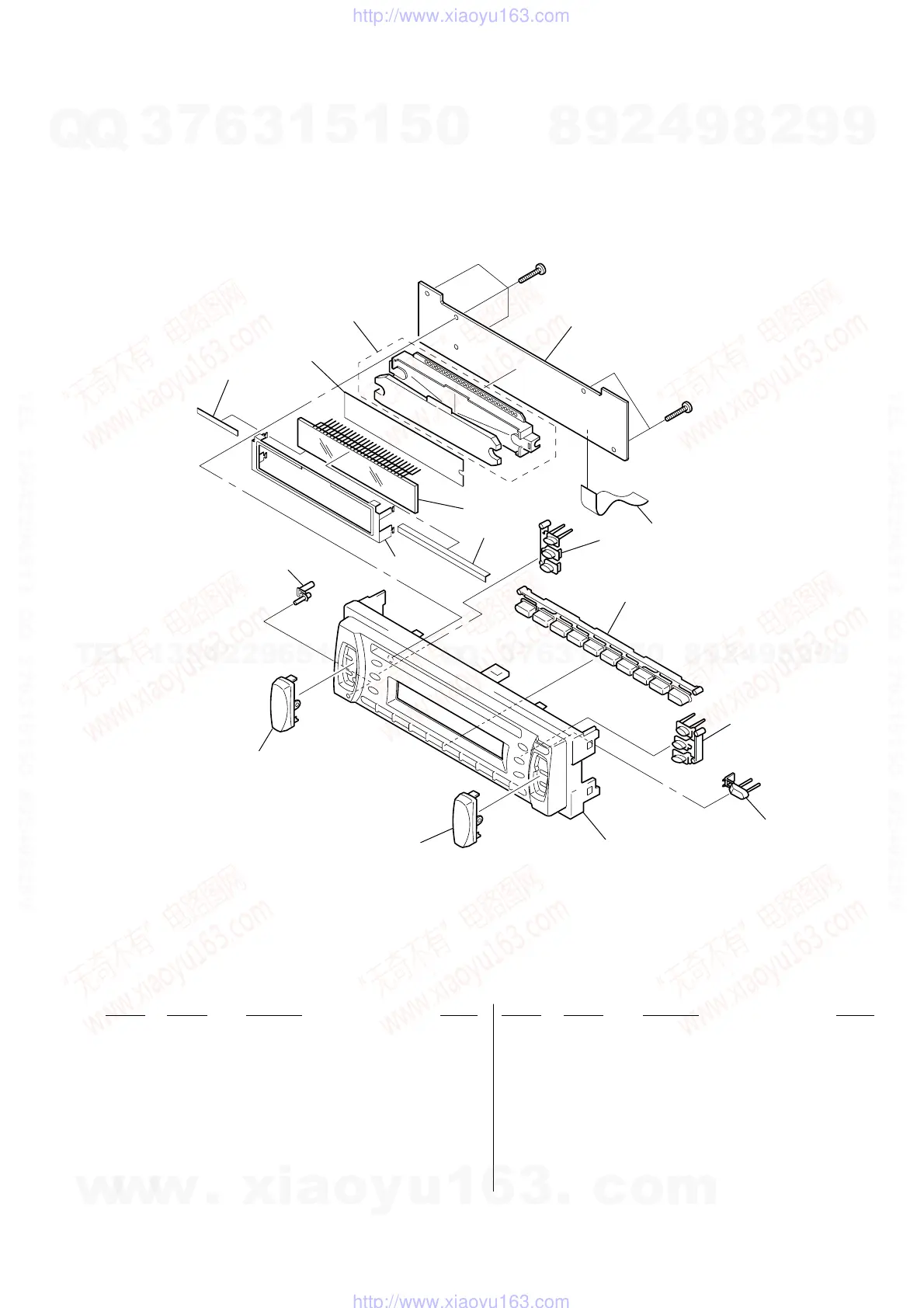

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51
53
52
57
56
55
54
58
62
59
60
61
63
64
LCD501
CNP553
#4
#4
51 X-3379-987-1 PANEL SUB ASSY, FRONT (L250)
51 X-3379-988-1 PANEL SUB ASSY, FRONT (L430X)
52 3-224-605-01 BUTTON (SEEK/AMS)
53 3-224-604-01 BUTTON (+/–) (L250)
53 3-224-604-11 BUTTON (+/–) (L430X)
54 3-224-601-01 BUTTON (EJECT)
55 3-224-603-01 BUTTON (OFF)
56 3-224-600-01 BUTTON (1-6)
57 3-224-602-01 BUTTON (SOURCE)
* 58 3-224-609-01 PLATE (LCD), GROUND
* 59 3-224-610-01 SHEET (LCD), DIFFUSION
* 60 X-3379-734-1 HOLDER (LCD) ASSY
* 61 A-3283-110-A DISPLAY BOARD, COMPLETE (L250)
* 61 A-3283-112-A DISPLAY BOARD, COMPLETE (L430X)
62 3-224-617-01 BUTTON (RESET)
* 63 3-227-293-01 SHEET (LCD)
* 64 3-229-751-01 SHEET (LCD, UP)
CNP553 1-783-268-21 CABLE, FLAT 10P
LCD501 1-804-300-11 DISPLAY PANEL, LIQUID CRYSTAL
