CDX-R3000/RW300

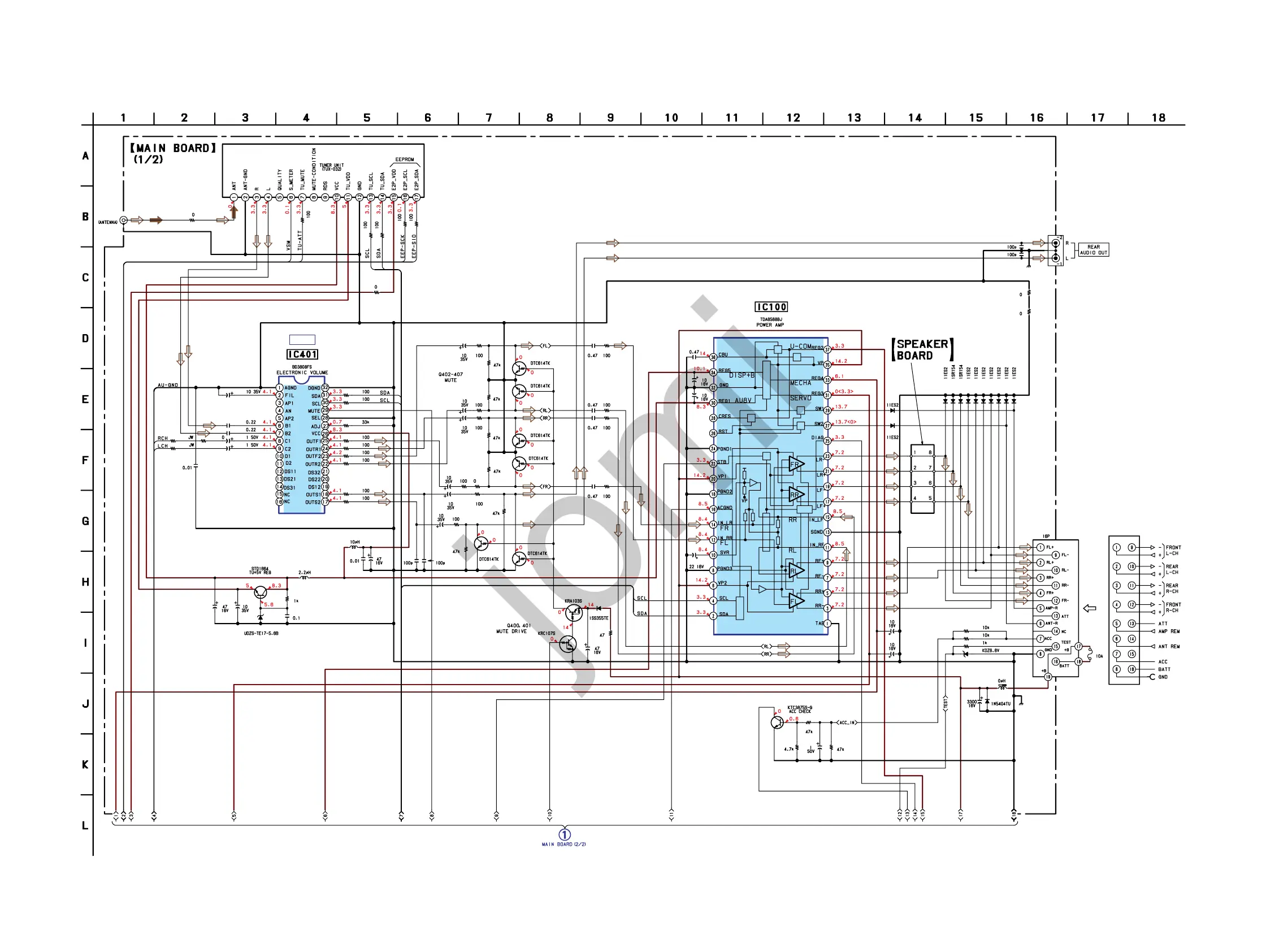

3-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 30 for IC Block Diagram.
(Page 25)
IC B/D
C416
C417
C424
C425
C426
C428
C452
C453
C908
D902
D903
D904
D905
D906
D907
D908
D909
D916
D917
D919
D921
D922
JR6
L400
L602
Q401
Q402
Q403
Q404
Q405
Q406
Q407
R401
R414
R415
R416
R417
R418
R419
R420
R421
R424
R427
R429
R431
R432
R440
R441
R442
R443
R615
R902
R903
R904
R913
C108
C619C618
C620
C400
C437
C438
C444
C440
C113
L900
R400
R608
R607
R603
R604
R606
R412
R411
R409
R407
R406
R405
R404
R435
R436
C414
C409
C408
C411
C410
JR103
TUX601
F900
R932
R931
C436
C435
PJ601
C303
IC401
D600
D400
Q400
C430
Q601
C101
C107
C106
IC100
CNP901
D914
C111
C109
C922
PJ401
Q900
JR10
C600
C451 C450
