Sony CDX-R3000 - CD Mechanism Section (1)

33
CDX-R3000/RW300

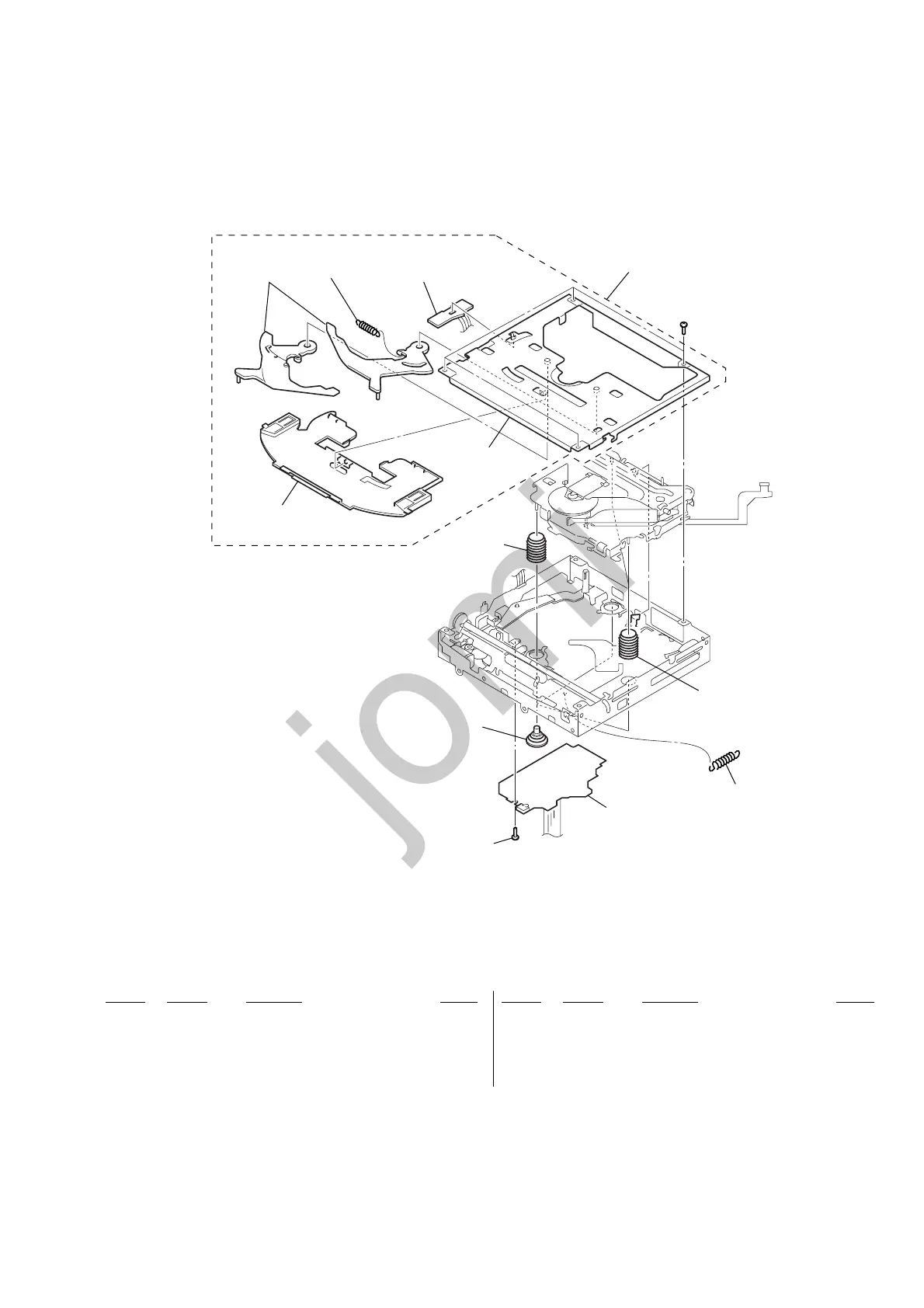

4-3. CD MECHANISM SECTION (1)
(MG-611XA-186//K)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3372-455-A CHASSIS (T) SUB ASSY
102 3-253-729-01 SPRING (LTR), TENSION COIL
103 3-253-746-01 SPRING (DAMPER), COMPRESSION
104 3-253-746-11 SPRING (DAMPER), COMPRESSION
105 3-253-695-01 SPRING (KF), TENSION COIL
106 3-253-748-01 DAMPER(S)
107 3-352-758-31 SCREW (M1.7), TOOTHED LOCK
108 A-3283-350-A SERVO BOARD, COMPLETE
#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
not supplied
(SENSOR board)
not supplied
not supplied
not supplied
#4
101
102
103
104
105
106
107
108
