CDX-R3000/RW300
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

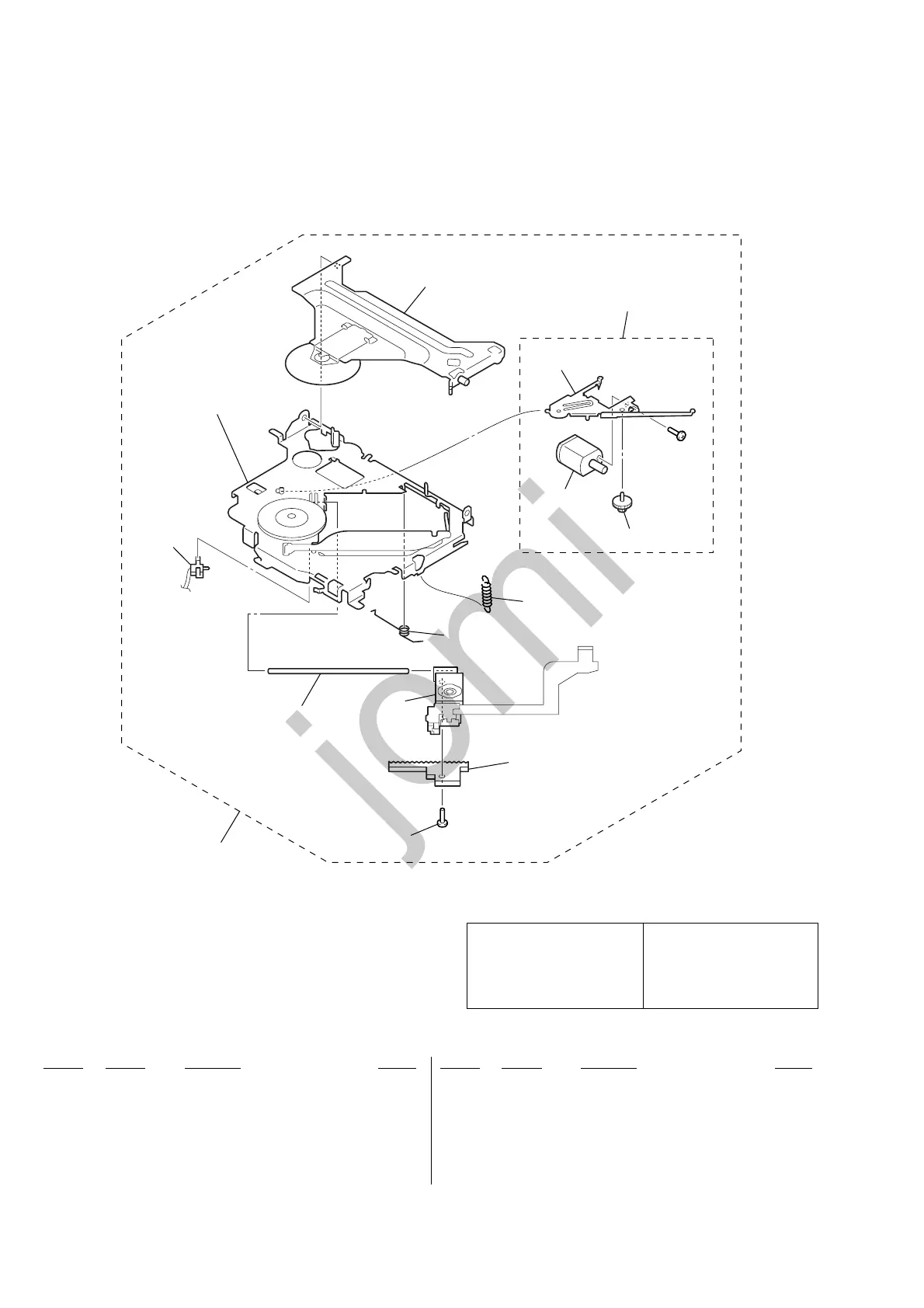

4-4. CD MECHANISM SECTION (2)
(MG-611XA-186//K)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
151 A-3337-637-A CHASSIS (OP) COMPLETE ASSY
152 4-912-432-01 SCREW (B1.4X5), TAPPING
0153 8-820-207-02 OPTICAL PICK-UP KSS1000E/K1RP
154 A-3337-640-A CHASSIS (OP) SUB ASSY (including M901)
155 A-3337-641-A ARM SUB ASSY, CHUCKING
156 A-3337-639-A LEVER (SL) SUB ASSY
157 X-3383-454-2 LEVER (SL) ASSY
158 3-261-959-01 SPRING (SL), TORSION
M902 A-3337-638-A MOTOR ASSY, SL (SLED)
SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT)
#5 7-627-850-77 SCREW, PRECISION +P 1.4X1.8
not supplied
SW4
not supplied
not supplied
#5
not supplied
M902
151
152
153
158
154
(including M901)
155
156
157
To Next Page
