Sony CDX-R3000 - CD Mechanism Section (3)

35
CDX-R3000/RW300
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

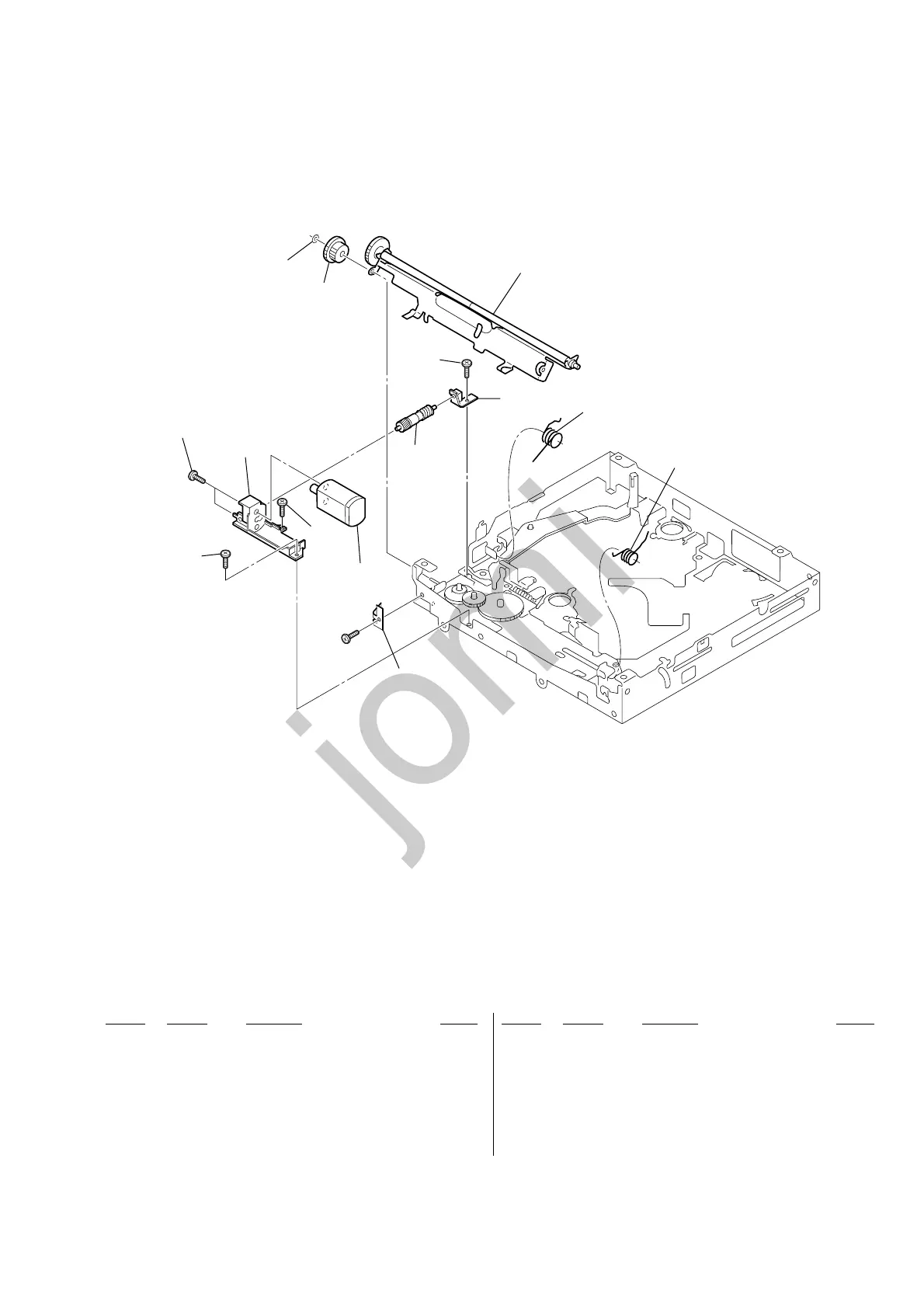

4-5. CD MECHANISM SECTION (3)
(MG-611XA-186//K)
201 3-338-647-31 WASHER (1.0-2.5)
202 3-259-024-01 WHEEL (RA), WORM
203 A-3337-633-A ARM ASSY, ROLLER
204 3-259-455-01 SPRING (RAL)
205 3-253-713-01 SPRING (RAR)
206 3-259-469-01 SPRING (LE), LEAF
207 2-134-636-31 SCREW (M1.7X2.5)
208 3-259-467-01 BRACKET (LEM)
209 3-345-648-91 SCREW (M1.4), TOOTHED LOCK
210 A-3372-456-A WORM (LEB) ASSY
211 3-259-468-01 BEARING (LEB)
M903 A-3372-454-A MOTOR ASSY, LE (LOADING)
#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
#4
M903
208
210
211
209
207
207
207
201
202
203
204
205
206
