CDX-R3000/RW300

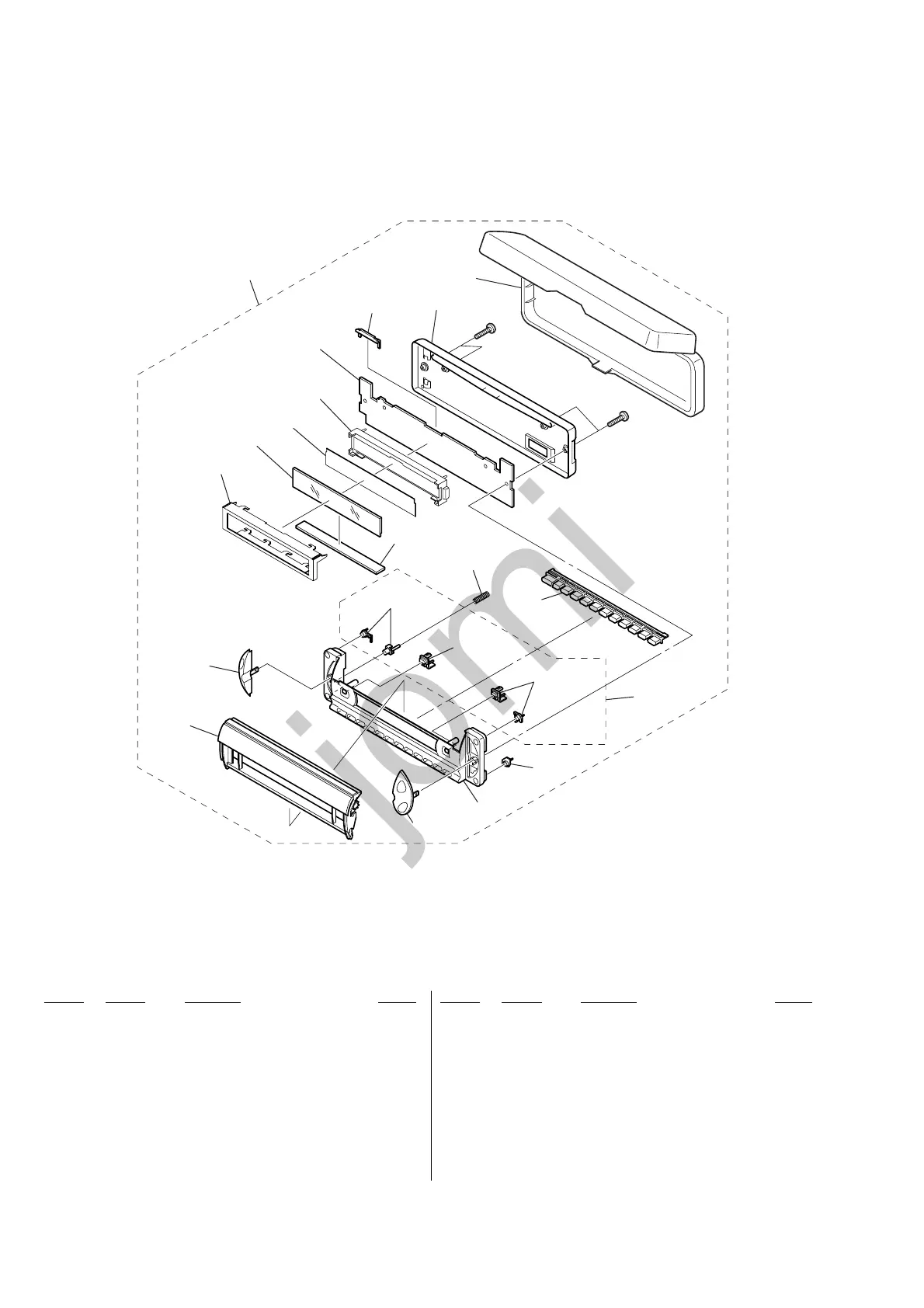

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-3384-410-1 PANEL (BASE) ASSY, FRONT (R3000:US,CND)
51 X-3384-617-1 PANEL (BASE) ASSY, FRONT (RW300)
51 X-3384-687-1 PANEL (BASE) ASSY, FRONT (R3000:E)
52 3-258-879-01 FILTER (IR)
53 3-258-874-01 BUTTON (SEEK)
54 X-3384-070-1 RETRACTABLE ASSY
55 3-258-873-01 BUTTON (+,–)
56 3-246-211-01 SPRING (RELEASE)
57 3-258-884-01 SHEET (ILLUMINATOR)
58 3-258-880-01 PLATE (CD), LIGHT GUIDE
59 3-258-869-01 PANEL, FRONT BACK
60 X-3378-390-3 CASE ASSY (for FRONT PANEL)
61 A-3372-585-A PANEL OVERALL ASSY, FRONT (R3000:US,CND)
61 A-3372-726-A PANEL OVERALL ASSY, FRONT (RW300)
61 A-3372-777-A PANEL OVERALL ASSY, FRONT (R3000:E)
62 3-258-875-01 BUTTON (PRESET)
63 X-3384-457-1 BUTTON ASSY (S)
64 1-780-120-11 CONDUCTIVE BOARD, CONNECTION
LCD901 1-805-450-11 DISPLAY PANEL, LIQUID CRYSTAL
#3 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
LCD901
not supplied
not supplied
not supplied
not supplied
not supplied
(DISPLAY board)
not
supplied
#3
#3
51
52
53
54
55
56
57
58
59
60
61
62
63
64
To Next Page
