34
CDX-R3350/R3350C

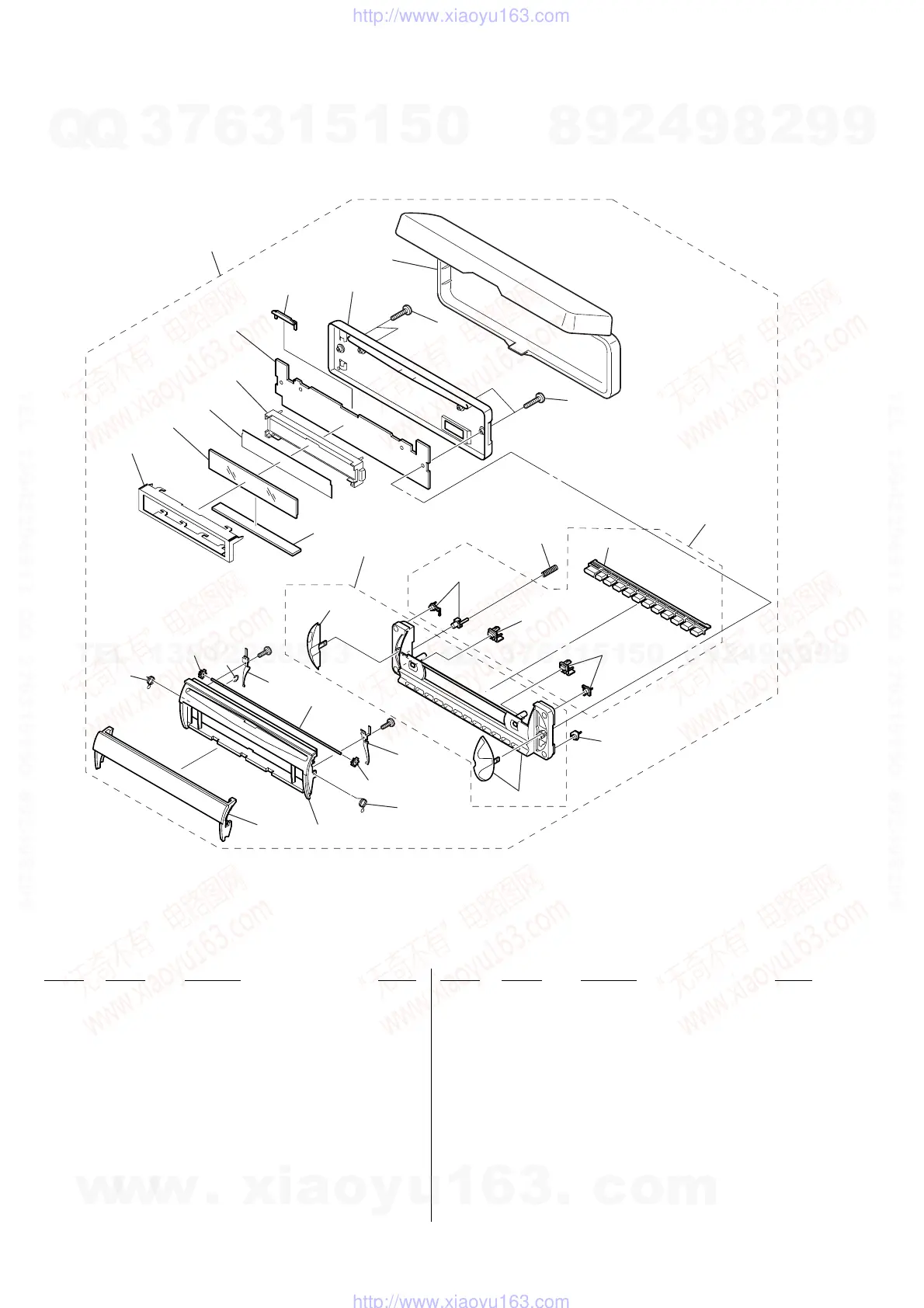

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-2050-730-1 PANEL ASSY, FRONT (SV) (R3350)
51 X-2050-755-1 PANEL ASSY, FRONT (SV) (R3350C)
52 3-258-947-02 FILTER (IR)
53 1-780-096-11 CONDUCTIVE BOARD, CONNECTION
54 X-2024-966-1 SHUTTER (SV) ASSY (R3350C)
54 X-2024-968-1 SHUTTER (SV) ASSY (R3350)
55 X-2050-729-1 BUTTON ASSY (SV) (R3350)
55 X-2050-754-1 BUTTON ASSY (SV) (R3350C)
56 3-246-479-01 SPRING (RELEASE)
57 2-515-402-11 SHEET (ILLUMINATOR)
58 2-188-139-01 PLATE (CD), LIGHT GUIDE
59 2-179-623-01 PANEL, FRONT BACK
60 X-3385-071-1 CASE ASSY (for FRONT PANEL)
61 A-1085-114-A PANEL OVERALL ASSY, FRONT (R3350)
61 A-1086-186-A PANEL OVERALL ASSY, FRONT (R3350C)
62 3-250-543-21 SCREW (+B P-TITE M2)
63 3-258-960-01 SPRING (R), TORSION
64 3-258-956-01 GEAR (SYNCHRONIZE)
65 3-258-958-01 SPRING (R), LEAF
66 3-258-961-01 SPRING (L), TORSION
67 3-258-959-01 SPRING (L), LEAF
68 3-258-957-01 SHAFT (DRIVE)
69 2-318-504-01 PANEL (SLOT), FRONT
LCD901 1-805-733-11 DISPLAY PANEL, LIQUID CRYSTAL
#6 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT
#7 7-624-104-04 STOP RING 2.0, TYPE -E
LCD901
not supplied
not supplied
not supplied
not supplied
#6
#6
#7
not supplied
not supplied
not supplied
not supplied
(KEY board)
not
supplied
51
52
54
56
55
53
57
58
59
60
61
69
63
64
64
65
68
66
67
62
62
