36
CDX-R3350/R3350C
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

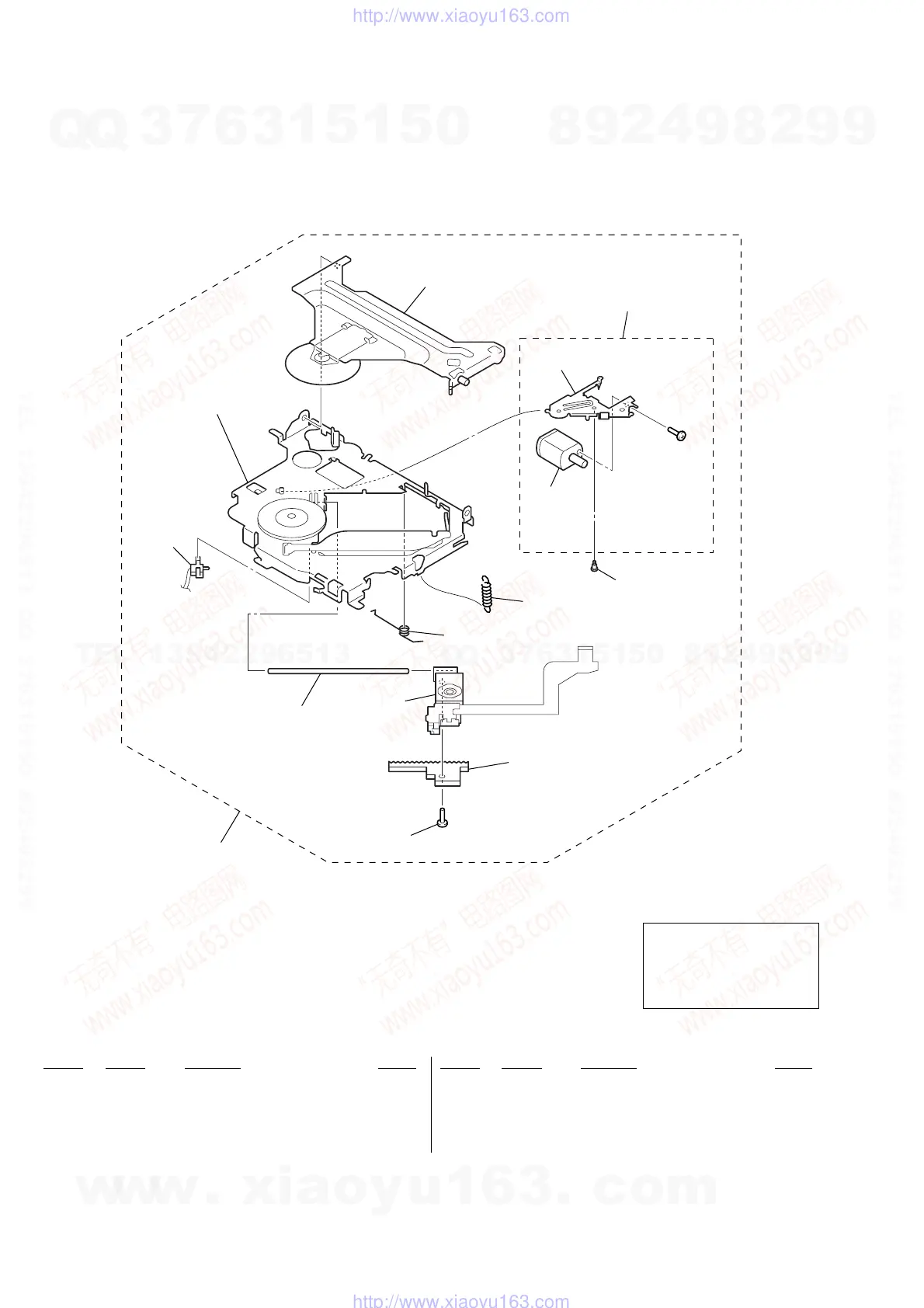

4-4. CD MECHANISM SECTION (2)
(MG-611TA-186//Q)
151 A-1075-644-A CHASSIS (OP) COMPLETE ASSY
152 3-316-938-91 SCREW (B1.4X5), TAPPING
0153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)
154 A-1075-645-A CHASSIS (OP) SUB ASSY (including M901)
155 A-3372-449-A ARM SUB ASSY, CHUCKING
156 A-3372-446-A LEVER (SL) SUB ASSY
157 X-3384-090-2 LEVER (SL) ASSY
M902 A-3372-447-A MOTOR ASSY, SL (SLED)
SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT)
#5 7-627-850-77 SCREW, PRECISION +P 1.4X1.8
not supplied
SW4
not supplied
not supplied
not supplied
not supplied
#5
M902
151
152
153
154
(including M901)
155
156
157
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
