CDX-R3350/R3350C

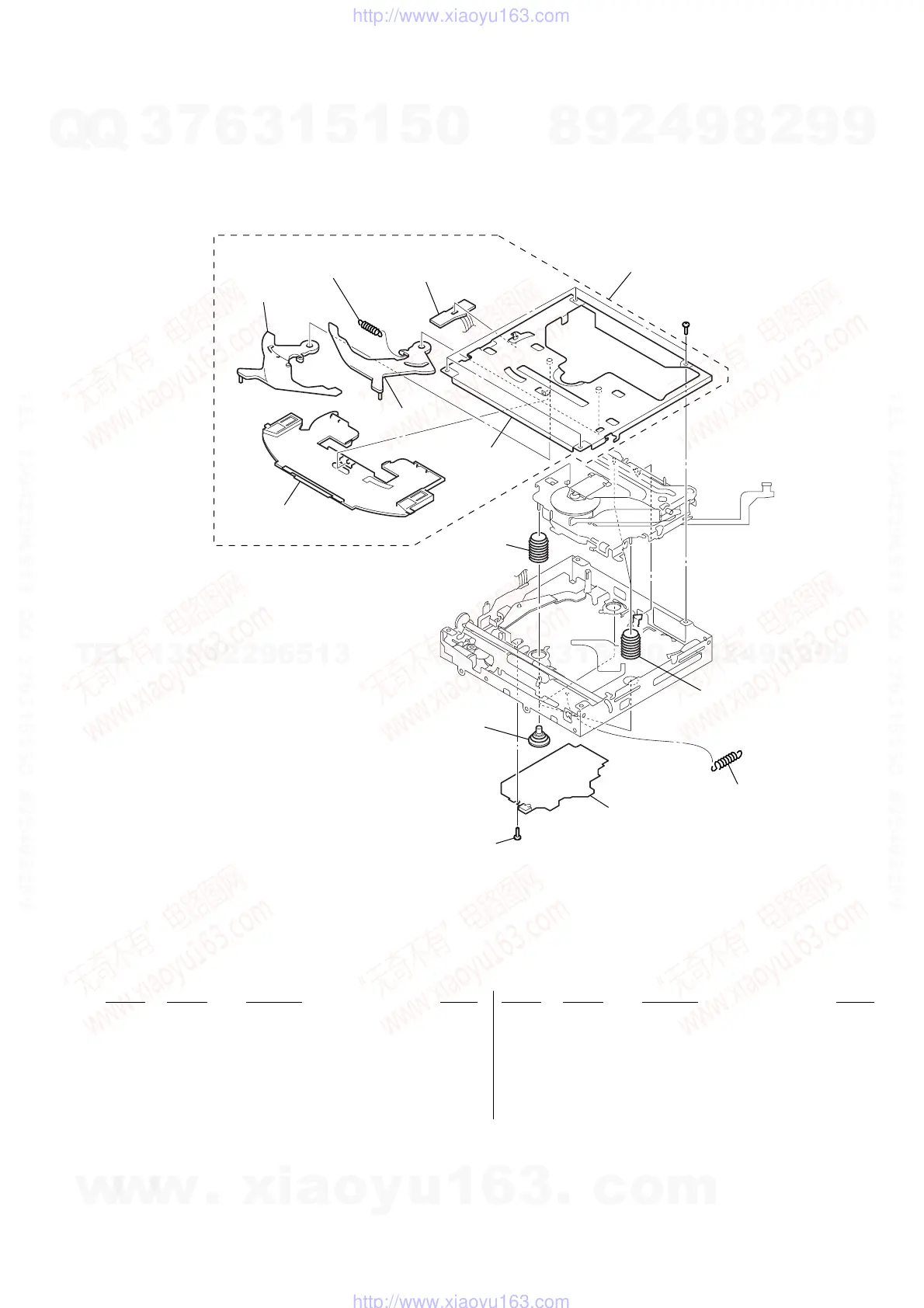

4-3. CD MECHANISM SECTION (1)
(MG-611TA-186//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-3372-444-A CHASSIS (T) SUB ASSY
102 3-253-729-11 SPRING (LTR), TENSION COIL
103 3-257-892-12 SPRING (DAMPER), COIL
104 3-257-892-01 SPRING (DAMPER), COIL
105 2-345-767-11 SPRING (KF60), TENSION
106 3-259-033-01 DAMPER (S)
107 3-352-758-31 SCREW (M1.7), TOOTHED LOCK
108 A-1082-772-A SERVO BOARD, COMPLETE
109 X-3384-088-2 LEVER (L) ASSY
110 X-3384-089-2 LEVER (R) ASSY
#4 7-627-552-87 SCREW, PRECISION +P 1.7X2.2
not supplied
(SENSOR board)
not supplied
not supplied
#4
101
102
109
110
103
104
105
106
107
108
