CDX-R3350/R3350C
R78 1-218-941-81 RES-CHIP 100 5% 1/16W
R80 1-218-941-81 RES-CHIP 100 5% 1/16W
R81 1-218-973-11 RES-CHIP 47K 5% 1/16W
R82 1-218-973-11 RES-CHIP 47K 5% 1/16W
R83 1-218-973-11 RES-CHIP 47K 5% 1/16W
R84 1-218-953-11 RES-CHIP 1K 5% 1/16W
R86 1-218-969-11 RES-CHIP 22K 5% 1/16W
R90 1-218-941-81 RES-CHIP 100 5% 1/16W
R91 1-218-941-81 RES-CHIP 100 5% 1/16W
R100 1-220-200-81 RES-CHIP 30K 5% 1/16W
R101 1-218-971-11 RES-CHIP 33K 5% 1/16W
R112 1-218-990-11 SHORT CHIP 0
R113 1-218-990-11 SHORT CHIP 0
R116 1-218-977-11 RES-CHIP 100K 5% 1/16W
R117 1-218-977-11 RES-CHIP 100K 5% 1/16W
R118 1-218-977-11 RES-CHIP 100K 5% 1/16W
R119 1-218-977-11 RES-CHIP 100K 5% 1/16W
R120 1-218-990-11 SHORT CHIP 0
R121 1-218-990-11 SHORT CHIP 0
R122 1-218-990-11 SHORT CHIP 0
R123 1-218-990-11 SHORT CHIP 0
R125 1-218-941-81 RES-CHIP 100 5% 1/16W
R126 1-218-941-81 RES-CHIP 100 5% 1/16W
R127 1-218-941-81 RES-CHIP 100 5% 1/16W
R128 1-218-941-81 RES-CHIP 100 5% 1/16W
R131 1-216-864-11 SHORT CHIP 0
R132 1-218-962-11 RES-CHIP 5.6K 5% 1/16W
< SWITCH >
SW1 1-529-565-61 SWITCH, PUSH (1 KEY) (DOWN)
< VIBRATOR >
X1 1-813-371-21 VIBRATOR, CERAMIC (12MHz)
X2 1-795-561-21 VIBRATOR, CERAMIC (16.9344MHz)
*************************************************************
MISCELLANEOUS
***************
7 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
0153 8-820-207-12 OPTICAL PICK-UP (KSS1000E/K1RP)
154 A-1075-645-A CHASSIS (OP) SUB ASSY (including M901)
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3372-447-A MOTOR ASSY, SL (SLED)
M903 A-1075-643-A MOTOR ASSY, LE (LOADING)
SW4 1-571-099-11 SWITCH (1 KEY) (LIMIT)
*************************************************************
ACCESSORIES
************
1-479-077-11 REMOTE COMMANDER (RM-X151)
2-515-510-21 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH)
2-548-729-01 LID, BATTERY CASE (for RM-X151)
2-560-438-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH)
X-3385-071-1 CASE ASSY (for FRONT PANEL)
*************************************************************
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

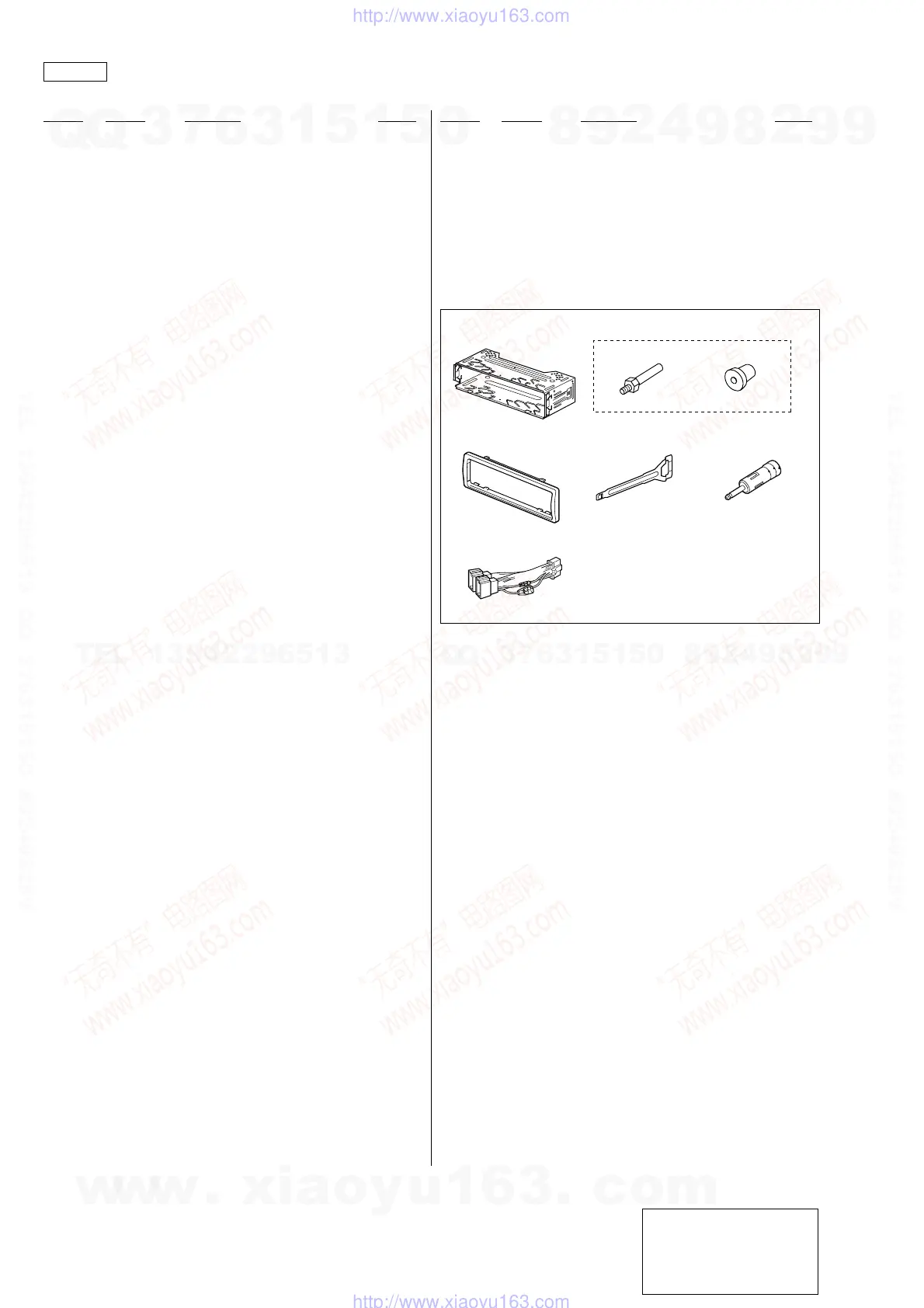

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
301 X-3382-647-1 FRAME ASSY, FITTING
302 X-3382-926-1 SCREW ASSY (BS), FITTING
303 3-349-410-11 BUSHING
304 2-318-513-01 COLLAR
305 3-246-471-01 KEY (FRAME)
306 1-465-459-31 ADAPTOR, ANTENNA
307 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
