Sony CFD-21 - Page 19

Qettee
: YM27X-407
Ref.No. Part No.
Description
201 4-894-969-01 N WASHER
202 4-894-999-01 SPRING
203 © 4-894-980-01 EJECT ARM
204 4 894-989-01 SPRING
* 205 4-894-986-01 PAUSE LEVER
* 206 4-894-987-01 S.E LEVER
* 207 3-391-052-01 FF LEVER
* 208 3-391-051-01 REW LEVER
* 209 3-391-053-01 PLAY LEVER
210 4-894-994-01 REC LEVER
211 3-390-811-01 LEVER, REC STOP
212 —3-390-827-01 SPRING
* 213 4-894-984-01 FUNCTION LEVER
214 = 4-894-983-01 C SPRING
215 —-X-3391-003-1 POWER ARM ASSY

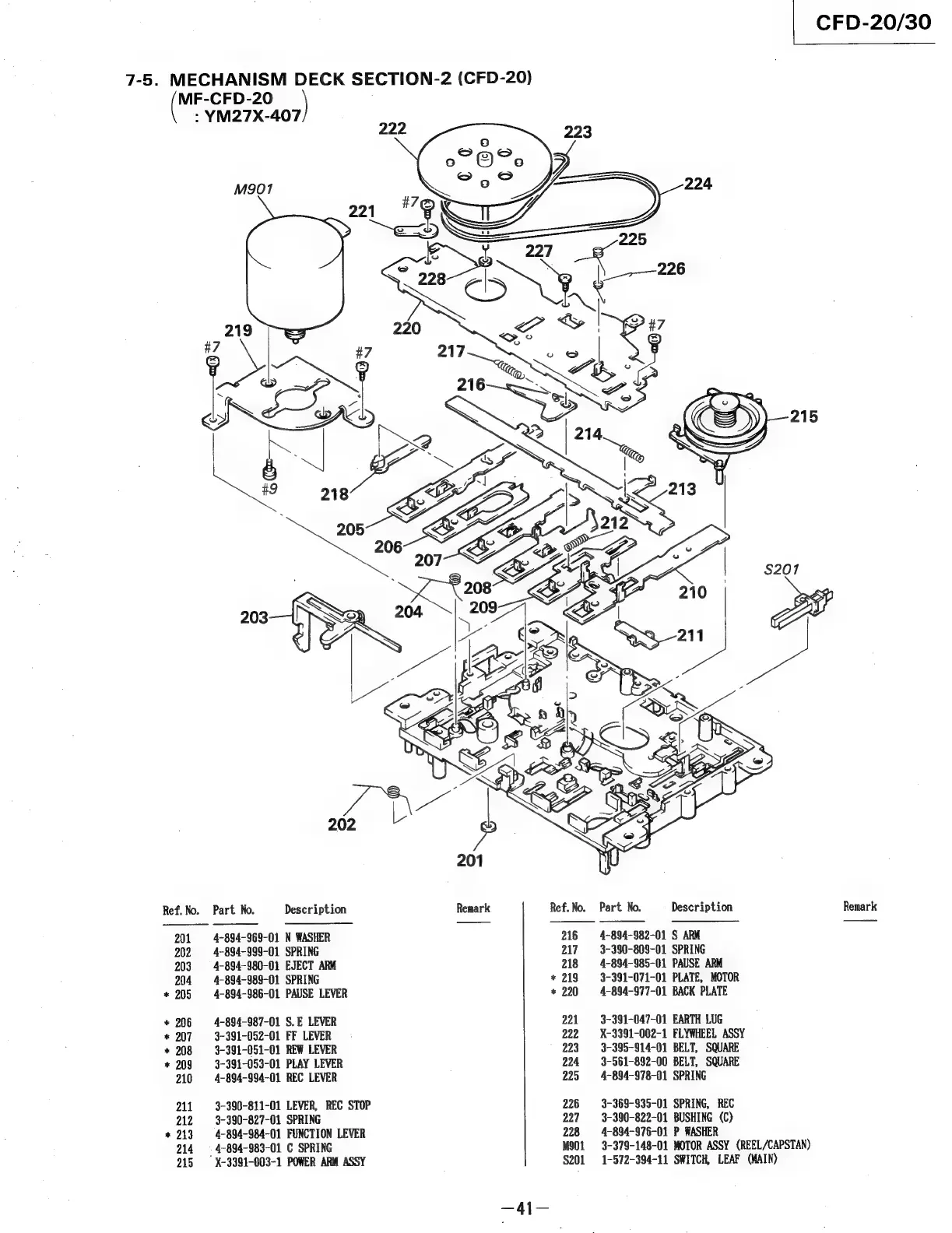

7-5. MECHANISM DECK SECTION-2 (CFD-20)
Ref. No.
216
217
218
* 219
* 220
221
222
223
224
225
226
227
228
M901
$201
—41—
CFD-20/30
Part No. Description Remark
4-894-982-01 S ARM
3-390-809-01 SPRING
4-894-985-01 PAUSE ARM
3-391-071-01 PLATE, MOTOR
4-894-977-01 BACK PLATE
3-391-047-01 EARTH LUG
X-3391-002-1 FLYWHEEL ASSY
3-395-914-01 BELT, SQUARE
3-561-892-00 BELT, SQUARE
4-894-978-01 SPRING
3-369-335-01 SPRING, REC
3-390-822-01 BUSHING (C)
4-894-976-01 P WASHER
3-379-148-01 MOTOR ASSY (REEL/CAPSTAN)
1-572-394-11 SWITCH, LEAF (MAIN)
