Sony CFD-21 - Deck Section

-. CFD-20/30

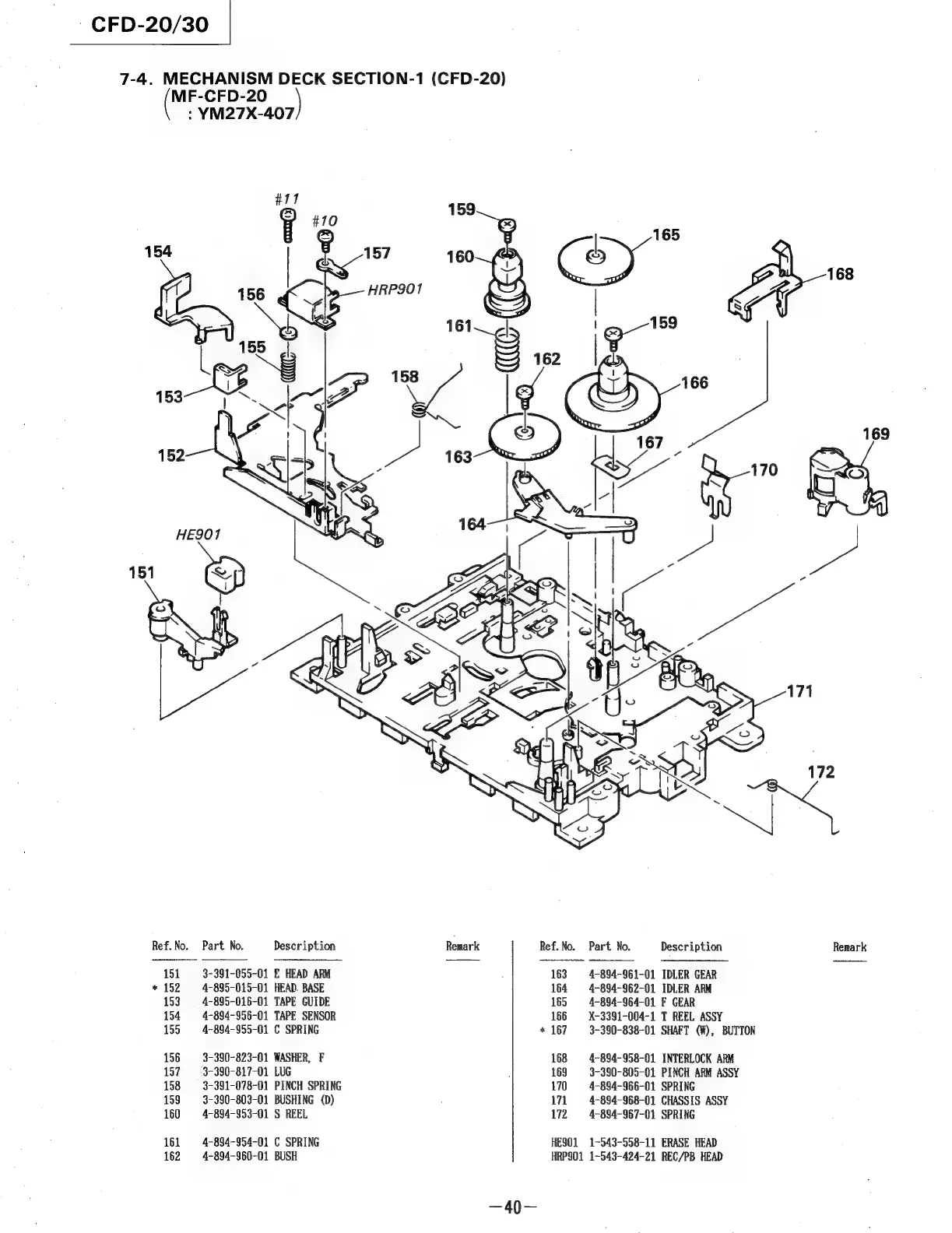

7-4. MECHANISM DECK SECTION-1 (CFD-20)
eee
: YM27X-407
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
151 3-391-055-01 E HEAD ARM , 163 4-894-961-01 IDLER GEAR
* 152 4-895-015-01 HEAD. BASE 164 4-894-962-01 IDLER ARM
153 4-895-016-01 TAPE GUIDE 165 4-894-964-01 F GEAR
154 4-894-956-01 TAPE SENSOR 166 X~3391-004-1 T REEL ASSY
155 4-894-955-01 C SPRING * 167 3-390-838-01 SHAFT (W), BUTTON
156 3-390-823-01 WASHER, F 168 4-894-958-01 INTERLOCK ARM
157 =. 3-390-817-01 LUG . 169 3-390-805-01 PINCH ARM ASSY
158 3-391-078-01 PINCH SPRING 170 4-894-966-01 SPRING
159 3-390-803-01 BUSHING (D) 171 4-894-968-01 CHASSIS ASSY
160 4-894-953-01 S REEL 172 4-894-967-01 SPRING
161 4-894-954-01 C SPRING HESO1 1-543-558-11 ERASE HEAD
162 4-894-960-01 BUSH HRP901 1-543-424-21 REC/PB HEAD
