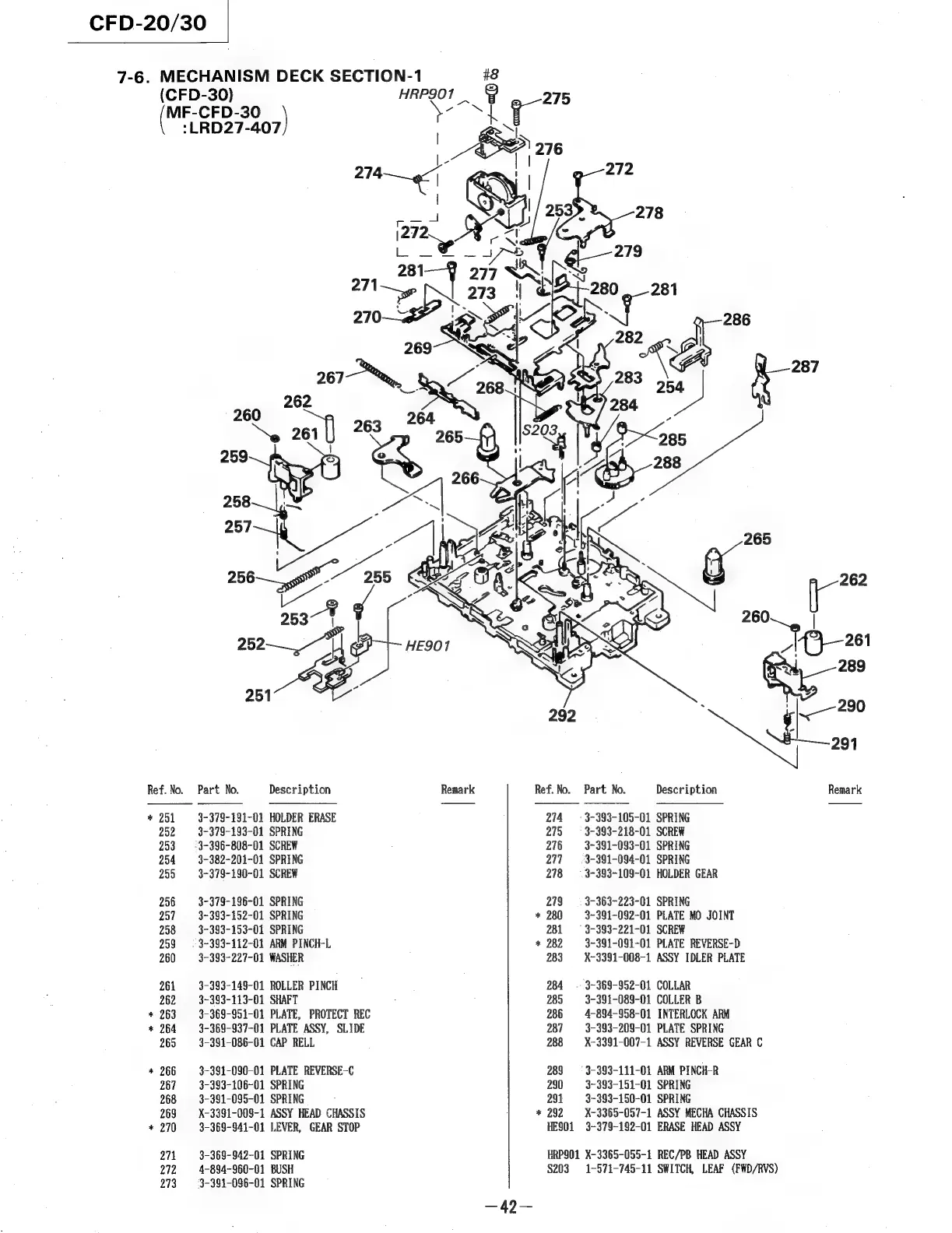

7-6. MECHANISM DECK SECTION-1 #8
(CFD-30) HRP9O1
Gai s a
:LRD27-407
251
Ref. No. Part No. Description Remark Ref.No. Part No. Description Remark
* 251 3-379-191-01 HOLDER ERASE 274 = 3-393-105-01 SPRING
252 3-379-193-01 SPRING 275 = 3-393-218-01 SCREW
253 =: 3-396-808-01 SCREW 276 «=. 3--391-093-01 SPRING
254 3-382-201-01 SPRING 277 =~: 3-391-094-01 SPRING
255 3-379-190-01 SCREW 278 = 3-393-109-01 HOLDER GEAR
256 3-379-196-01 SPRING 279 = 3-363-223-01 SPRING
257 3-393-152-01 SPRING * 280 3-391-092-01 PLATE MO JOINT
258 3-393-153-01 SPRING 281 = 3-383-221-01 SCREW
259 © 3-393-112-01 ARM PINCH-L * 282 3-391-091-01 PLATE REVERSE-D
260 3-393-227-01 WASHER 283 = X-3391-008-1 ASSY IDLER PLATE
261 3-393-149-01 ROLLER PINCH 284 =. 3-369-952-01 COLLAR
262 3-393-113-01 SHAFT : 285 3-391-089-01 COLLER B
* 263 3-369-951-01 PLATE, PROTECT REC 286 4-894-958-01 INTERLOCK ARM
* 264 3-369-937-01 PLATE ASSY, SLIDE 287: 3-393-209-01 PLATE SPRING
265 3-391-086-01 CAP RELL 288 _X-3391-007-1 ASSY REVERSE GEAR C
* 266 3-391-090-01 PLATE REVERSE-C 289 = 3-393-111-01 ARM PINCH-R
267 3-393-106-01 SPRING 290 3-393-151-01 SPRING
268 3-391-095-01 SPRING 291 3-393-150-01 SPRING
269 X-3391-009-1 ASSY HEAD CHASSIS ; * 292 X-3365-057-1 ASSY MECHA CHASSIS
* 270 3-369-941-01 LEVER, GEAR STOP HE901 3-379-192-01 ERASE HEAD ASSY
271 3-369-942-01 SPRING HRP901 X-3365-055-1 REC/PB HEAD ASSY
272 ~=4-894-960-01 BUSH $203 1-571-745-11 SWITCH, LEAF (FWD/RVS)
273 =: 3-391-096-01 SPRING
