| CFD-20/30

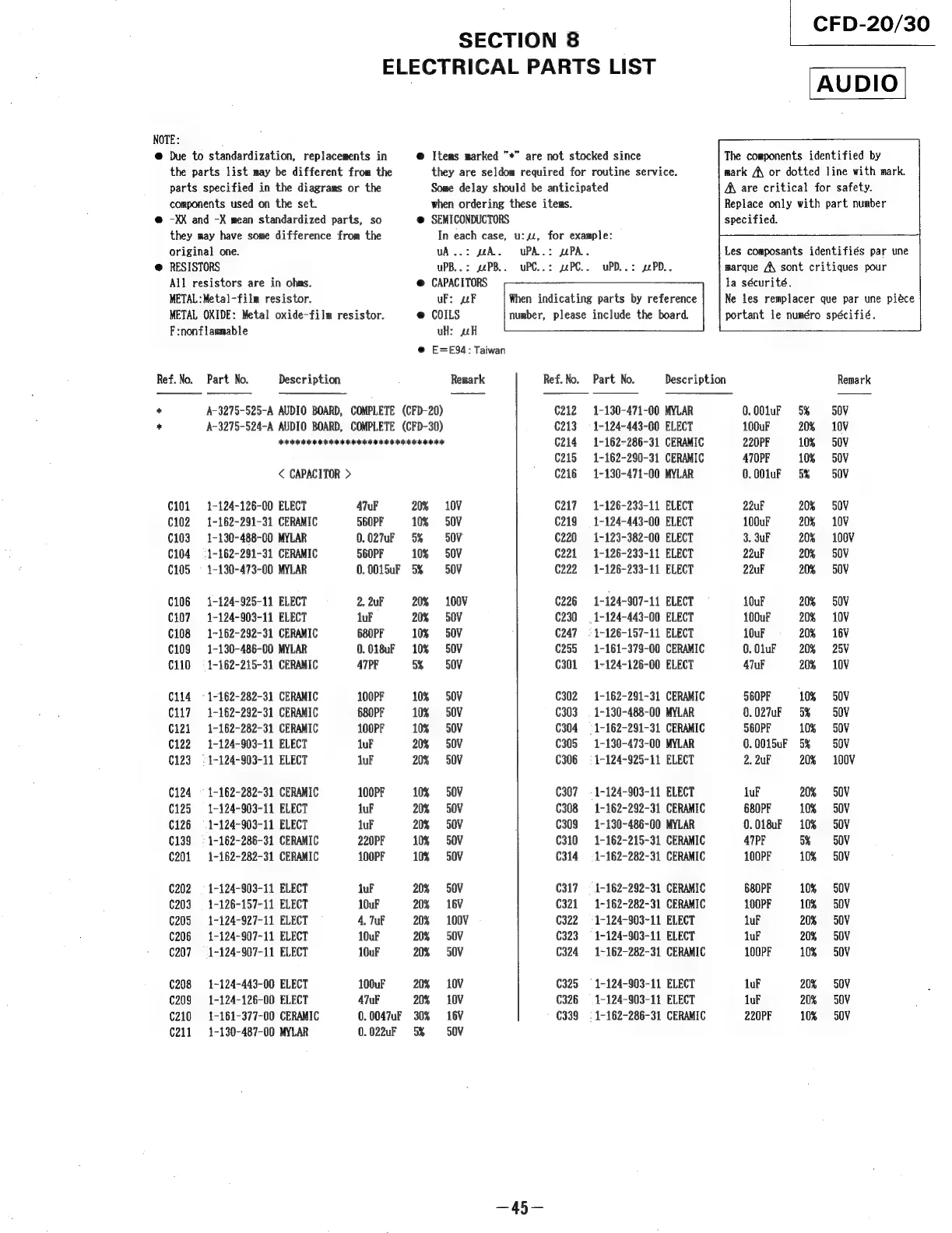

SECTION 8 |_CFD-20/30
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in @ Items marked ”*” are not stocked since The components identified by
the parts list may be different from the they are seldom required for routine service. mark A\ or dotted line with mark.
parts specified in the diagrams or the Some delay should be anticipated A\ are critical for safety.
components used on the set. when ordering these items. Replace only with part number
@ -XX and -X mean standardized parts, so @ SEMICONDUCTORS specified.
they may have some difference from the In each case, u:zt, for example:
original one. vA..: WA. uPA.: “PA. Les composants identifiés par une
@ RESISTORS uPB..: sePB.. uPC..: geP€.. uPD..: sePD.. marque A\ sont critiques pour
All resistors are in ohms. @ CAPACITORS la sécurité.
METAL: Metal-film resistor. uF: uF When indicating parts by reference Ne les remplacer que par une piéce
METAL OXIDE: Metal oxide-film resistor. e@ COILS number, please include the board. portant le numéro spécifié.
F :nonflammable ul: .H J
@ E=£94: Taiwan
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* A-3275-525-A AUDIO BOARD, COMPLETE (CFD-20) (212 = 1-130-471-00 MYLAR 0.001uF 5% 50V
* A-3275-524-A AUDIO BOARD, COMPLETE (CFD-30) C213 = 1-124-443-00 ELECT 100uF 20% 10V
ete ttt ti tte titre tio t error reg C214 1-162-286-31 CERAMIC 220PF 10% 50V
(215 1-162-290-31 CERAMIC 470PF 10% 50V
< CAPACITOR > C216 =©1-130-471-00 MYLAR 0.001uF 5% 50V
C101 1-124-126-00 ELECT 47uF 20% 10V (217 = 1-126-233-11 ELECT 22uF 20% 50V
C102 =1-162-291-31 CERAMIC 560PF 10% 50V C219 = 1-124-443-00 ELECT 100uF 20% 10V
C103 1-130-488-00 MYLAR 0.027uF 5% 50V C220} =1-123-382-00 ELECT 3. 3uF 20% 100V
C104 = 1-162-291-31 CERAMIC 560PF 10% 50V (221 = 1-126-233-11 ELECT 22uF 20% 50V
C105 = 1-130-473-00 MYLAR 0.0015uF 5% 50V (222 = 1-126-233-11 ELECT 22uF 20% 50V
C106 =©1-124-925-11 ELECT 2. 2uF 20% 100V (226 =©1-124-907-11 ELECT 10uF 20% 50V
C107»: 1-124-903-11 ELECT luF 20% 50V C230 = 1-124-443-00 ELECT 100uF 20% 10V
C108 1-162-292-31 CERAMIC 680PF 10% 50V C247 = 1-126-157-11 ELECT 10uF 20% 16V
C109 =1-130-486-00 MYLAR 0.018uF 10% 50V C255 =1-161-379-00 CERAMIC 0.0iuF 20% 25V
C110 = 1-162-215-31 CERAMIC 47PF 5% 50V C301 = 1-124-126-00 ELECT 47uF 20% 10V
C114 = 1-162-282-31 CERAMIC 100PF 10% 50V C302 = =©1-162-291-31 CERAMIC 560PF 10% 50V
C117. 1-162-292-31 CERAMIC 680PF 10% 50V C303 = 1-130-488-00 MYLAR 0.027uF 5% SOV
C121 =1-162-282-31 CERAMIC 100PF 10% 50V C304 = 1-162-291-31 CERAMIC 560PF 10% 50V
C122 ~=1-124-903-11 ELECT luF 20% 50V C305 1-130-473-00 MYLAR 0.0015uF 5% 5S0V
C123) =: 1-124-903-11 ELECT juF 20% 50V C306 = 1-124-925-11 ELECT 2. 2uF 20% 100V
C124 = 1-162-282-31 CERAMIC 100PF 10% 50V C307 = 1-124-903-11 ELECT luF 20% 50V
C125 = 1-124-903-11 ELECT 1uF 20% 50V C308 =©1-162-292-31 CERAMIC 680PF 10% 50V
C126 = 1-124-903-11 ELECT l1uF 20% 50V C309 1-130-486-00 MYLAR 0.018uF 10% 50V
C139 = 1-162-286-31 CERAMIC 220PF 10% 50V C310 = =1-162-215-31 CERAMIC 47PF 5% =d50V
(201 1-162-282-31 CERAMIC 100PF 10% 50V C314 = 1-162-282-31 CERAMIC 100PF 10% 50V
C202 = 1-124-903-11 ELECT luF 20% 50V C317 =: 1-162-292-31 CERAMIC 680PF 10% 50V
C203 = =1-126-157-11 ELECT 10uF 20% 16V C321 =1-162-282-31 CERAMIC 100PF 10% 50V
C205 1-124-927-11 ELECT 4. TuF 20% 100V C322) = 1-124-903-11 ELECT luF 20% 50V
C206 = =1-124-907-11 ELECT 10uF 20% 50V C323 = 1-124-903-11 ELECT luF 20% 50V
C207 =: 1-124-907-11 ELECT 10uF 20% 50V C324 ~=1-162-282-31 CERAMIC 100PF 10% 50V
C208 = =1-124-443-00 ELECT 100uF 20% = 10V C325 = 1-124-903-11 ELECT luF 20% SOV
C209 =1-124-126-00 ELECT 47uF 20% 10V C326 = 1-124-903-11 ELECT 1uF 20% SOV
C210 1-161-377-00 CERAMIC 0.0047uF 30% 16V C339 = 1-162-286-31 CERAMIC 220PF 10% 50V
C211. =1-130-487-00 MYLAR 0.022uF 5% 50V
