Sony CFD-21 - Specifications

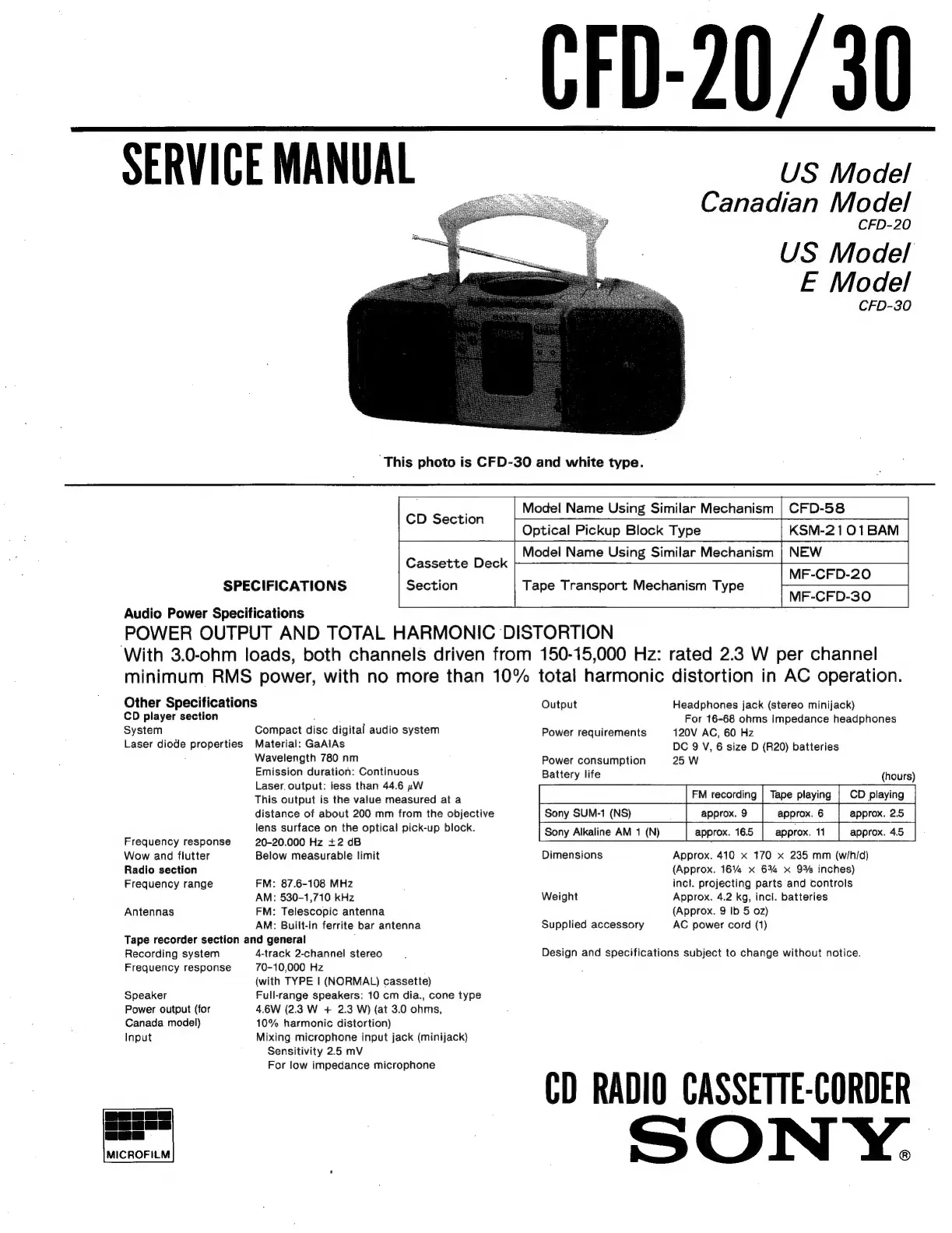

SERVICE MANUAL
CFD-20/30
US Model
Canadian Model
CFD-20
US Model
E Model
CFD-30
‘This photo is CFD-30 and white type.
CD Section
Model Name Using Similar Mechanism | CFD-58
Optical Pickup Block Type KSM-2101BAM
Cassette Deck
Section
SPECIFICATIONS
Audio Power Specifications
Model Name Using Similar Mechanism | NEW
MF-CFD-20
MF-CFD-30
Tape Transport Mechanism Type
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
‘With 3.0-ohm loads, both channels driven from 150-15,000 Hz: rated 2.3 W per channel
minimum RMS power, with no more than 10% total harmonic distortion in AC operation.
Other Specifications
CD player section
System
Laser diode properties
Compact disc digital audio system
Material: GaAlAs
Wavelength 780 nm
Emission duration: Continuous
Laser. output: less than 44.6 .W
This output is the value measured at a
distance of about 200 mm from the objective
lens surface on the optical pick-up block.
20-20.000 Hz +2 dB
Below measurable limit
Frequency response
Wow and flutter
Radio section
Frequency range FM: 87.6-108 MHz
AM: 530-1,710 kHz
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Tape recorder section and general
Recording system 4-track 2-channel stereo
Frequency response 70-10,000 Hz
(with TYPE | (NORMAL) cassette)
Full-range speakers: 10 cm dia., cone type
4.6W (2.3 W + 2.3 W) (at 3.0 ohms,
10% harmonic distortion)
Mixing microphone input jack (minijack)
Sensitivity 2.5 mV
For low impedance microphone
Antennas
Speaker
Power output (for
Canada model)
Input
MICROFILM
Output Headphones jack (stereo minijack)
For 16-68 ohms impedance headphones
120V AC, 60 Hz
DC 9 V, 6 size D (R20) batteries
25 W
Power requirements
Power consumption
Battery life (hours)
FM recording | Tape playing | CD playing
Approx. 410 x 170 x 235 mm (wih/d)
(Approx. 16% x 634 x 9% inches)
incl. projecting parts and controls
Approx. 4.2 kg, incl. batteries
(Approx. 9 Ib 5 oz)
AC power cord (1)
Sony Alkaline AM 1 (N) approx. 16.5 approx. 11
Dimensions
Weight
Supplied accessory
Design and specifications subject to change without notice.
CD RADIO CASSETTE-CORDER
