Sony CFD-21 - Page 21

ger
:LRD27-407
Ref. No. Part. No. Description Remark
* 301 3-393-171-01 LEVER PLAY B
* 302 3-369-944-01 LEVER, REW
303. 3-393-165-01 SPRING
304 3-393-167-01 SPRING
305 3-393-170-01 ARM CUE STOP
306 3-393-158-01 ARM PAUSE
* 307 3-369-943-01 LEVER, FF
308 3-393-159-01 SPRING
309 3-393-160-01 LEVER STOP
310 3-393-156-01 LEVER PAUSE
311 © 3-393-157-01 ARM PAUSE STOP
* 312 3-369-945-01 PLATE, FUNCTION (A)
313 3-393-175-01 SPRING
* 314 3-379-176-01 PLATE FUNCTION-B
315 3-396-801-01 SCREW
* 316 3-396-800-01 HOLDER
* 317 X-3391-013-1 ASSY LEVER HOLDER C
* 318 3-369-948-01 PULLEY
319 3-393-225-01 WASHER
320. =: 3-393-206-01 SPRING
321 4-894-960-01 BUSH
322 3-382-202-01 SPRING
323: 3-393-221-01 SCREW
324 X-3365-056-1 ASSY FLYWHEEL F
325 X-3391-018-1 ASSY FLYWHEEL R
326 3-393-205-01 SPRING
327 X-3391-016-1 ASSY FF TENTION A
328 X-3391-012-1 ASSY FF IDLER PLATE
328 3-393-176-01 LEVER FF IDLER
330 3-393-155-01 PLATE SENSER STOP
331 3-396-773-01 LEVER EJECT
332. 3-393-179-01 SPRING
333 3-393-190-01 ARM SENSER STOP

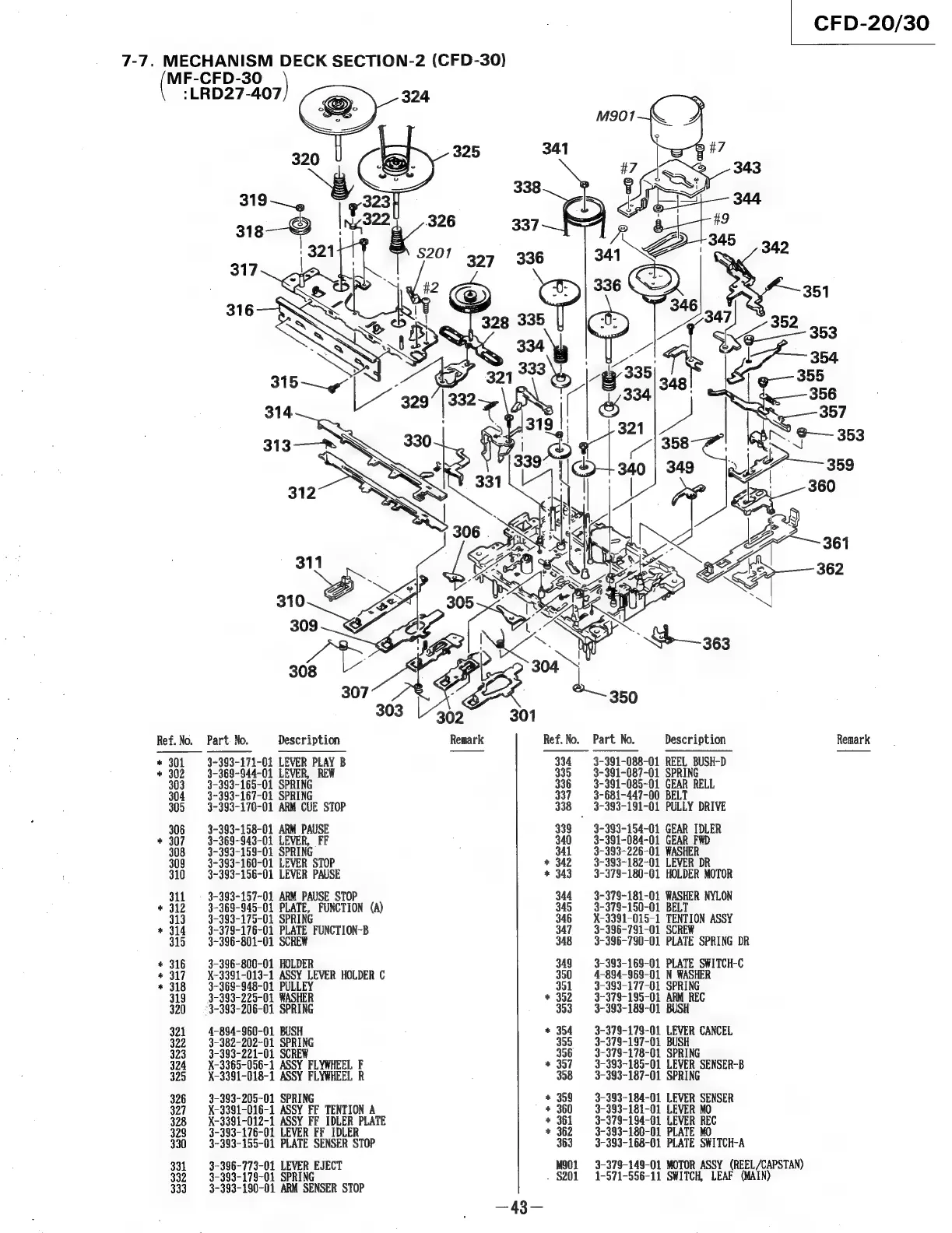

7-7. MECHANISM DECK SECTION-2 (CFD-30)
Ref. No.
* *
w w a a = hte
*
oo ol
~]
eee &
w on pa
| CFD-20/30
Part No. Description Remark
3-391-088-01 REEL BUSH-D
3-391-087-01 SPRING
3-391-085-01 GEAR RELL
3-681-447-00 BELT
3-393-191-01 PULLY DRIVE
3-393-154-01 GEAR IDLER
3-391-084-01 GEAR FWD
3-393-226-01 WASHER
3-393-182-01 LEVER DR
3-379-180-01 HOLDER MOTOR
3-379-181-01 WASHER NYLON
3-379-150-01 BELT
X-3391-015-1 TENTION ASSY
3-396-791-01 SCREW
3-396-790-01 PLATE SPRING DR
3-393-169-01 PLATE SWITCH-C
4-894-969-01 N WASHER
3-393-177-01 SPRING
3~379-195-01 ARM REC
3-393-189-01 BUSH
3-379-179-01 LEVER CANCEL
3-379-197-01 BUSH
3-379-178-01 SPRING
3-393-185-01 LEVER SENSER-B
3-393-187-01 SPRING
3-393-184-01 LEVER SENSER
3-393-181-01 LEVER MO
3-379-194-01 LEVER REC
3-393-180-01 PLATE MO
3-393-168-01 PLATE SWITCH-A
3-379-149-01 MOTOR ASSY (REEL/CAPSTAN)
1-571-556-11 SWITCH, LEAF (MAIN)
