CFD-E75

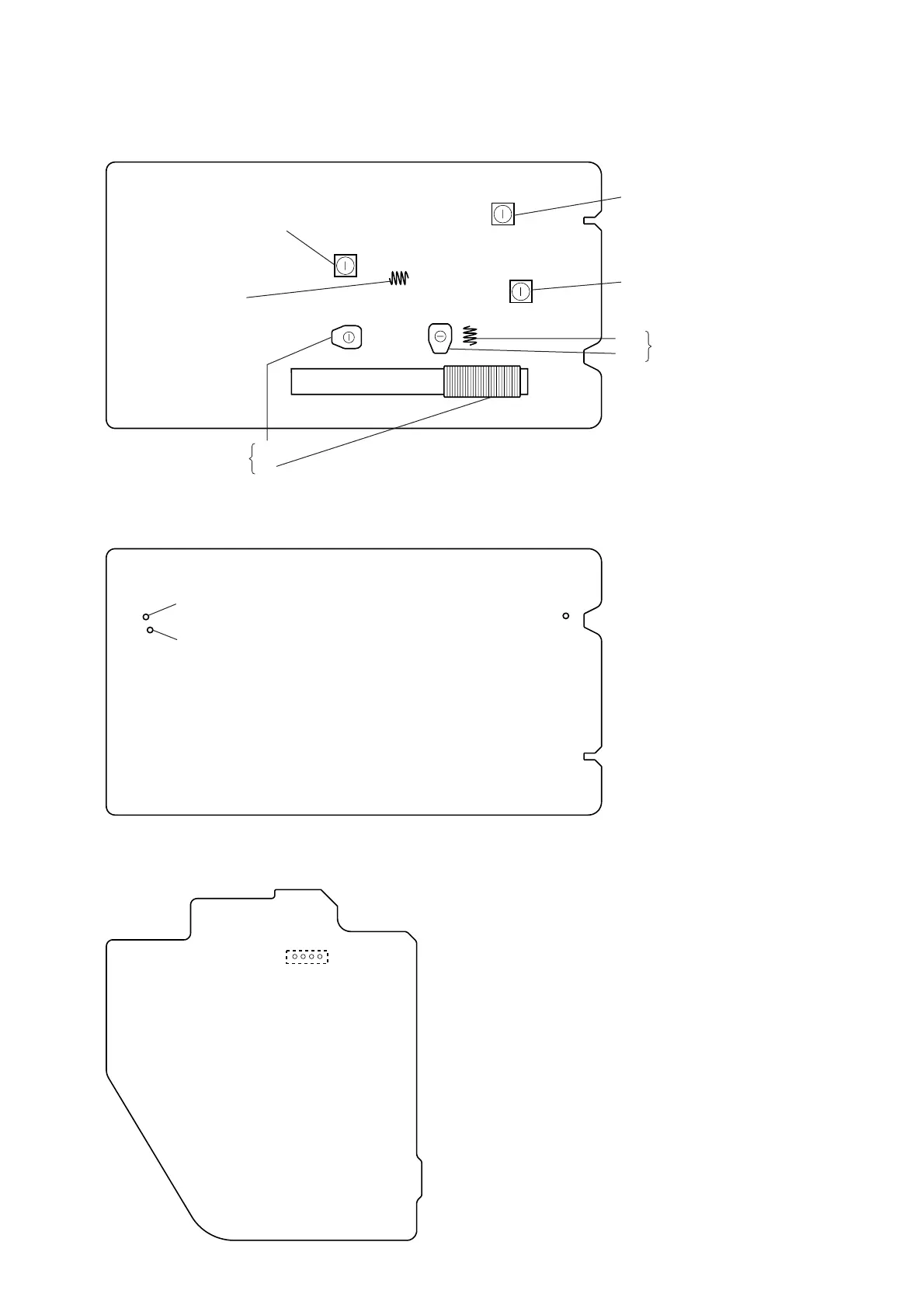

Adjustment Location:
TP
(VT)
TP
(GND)
TP
(ANT)
– TUNER BOARD (Component Side) –
– TUNER BOARD (Conductor Side) –
L4
AM VCO Voltage Adjustment
L2
FM VCO Voltage Adjustment
AM Tracking Adjustment
CT3
L3
FM Tracking Adjustmen
t
T1 AM IF Adjustment
T2 FM IF Adjustment
L1
CT1
– POWER BOARD (Conductor Side) –
14
CNP392
