Sony CFD-E75 - LOWER CABINET AND POWER COMPONENTS

43
CFD-E75
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

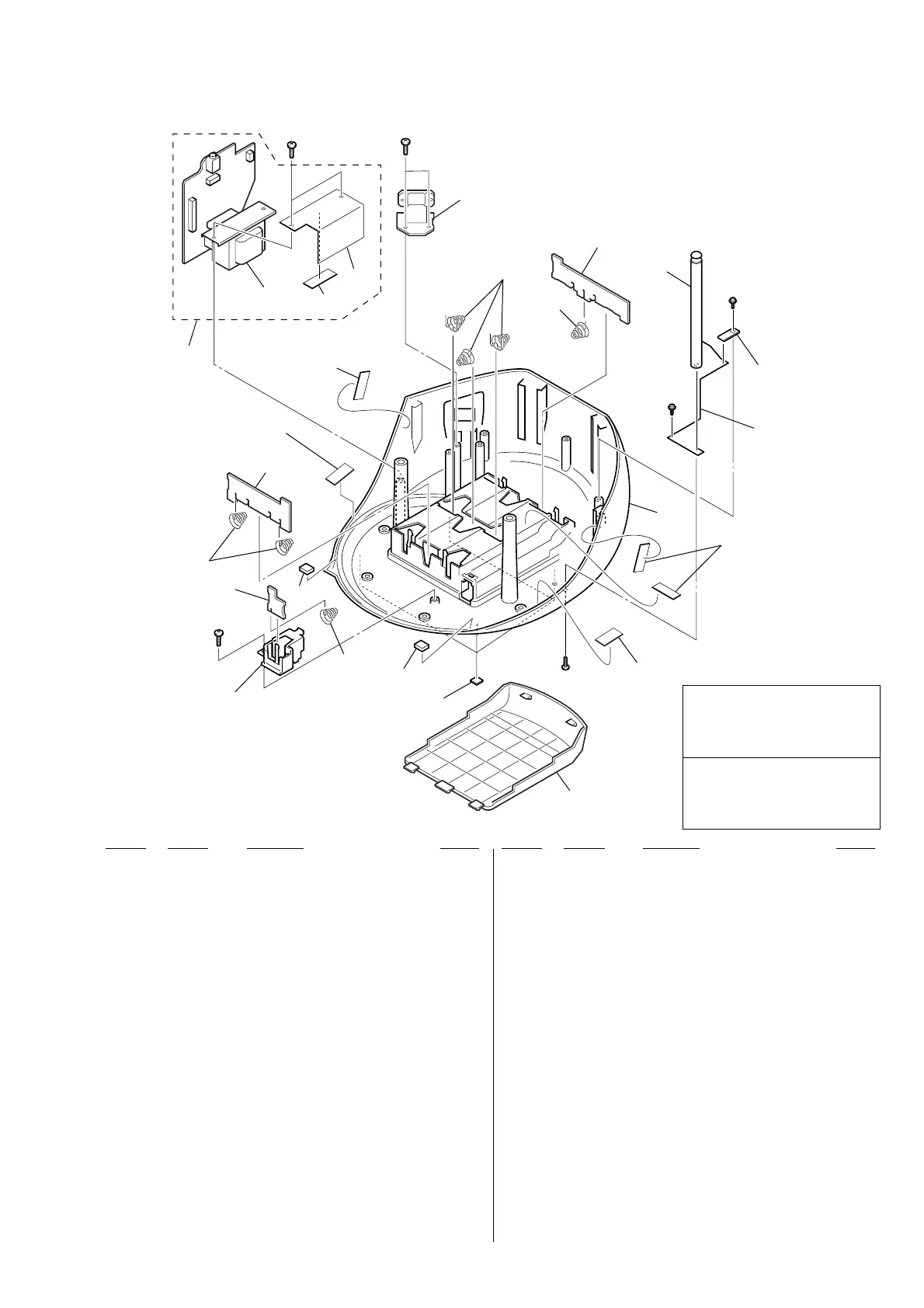

7-4. CABINET LOWER SECTION
151
152
153
#6
not supplied
not
supplied
not supplie
d
not supplied
not supplied
#7
ANT1
#8
#8
#6
#6
T901
155
156
166
157
154
160
159
158
161
162
156
163
164
165
166
151 3-229-970-01 LID BATTERY
(for WHITE, BLUE: ORIGINAL TYPE)
151 3-229-970-11 LID BATTERY (ORANGE: ORIGINAL TYPE)
151 3-229-970-21 LID BATTERY (NAVY BLUE: ORIGINAL TYPE)
151 3-229-970-31 LID BATTERY (YELLOW: ORIGINAL TYPE)
151 3-229-970-41 LID BATTERY (RED: ORIGINAL TYPE)
151 3-229-970-61 LID BATTERY (WHITE: LIV TYPE)
151 3-229-970-71 LID BATTERY
(for RED, BLUE, GOLD: PSYC TYPE)
152 3-232-533-01 FOOT RUBBER
153 3-229-971-01 CASE BATTERY
154 3-229-976-01 SPRING BATTERY (S) (–)
* 155 1-681-678-13 BACK-UP BOARD
156 3-229-975-01 SPRING BATTERY (–)
* 157 1-681-677-13 BATY B BOARD
* 158 A-3062-357-A POWER BOARD, COMPLETE
(US, CND, E92, TW, MX)
* 158 A-3062-740-A POWER BOARD, COMPLETE (SP, KR, AR)
159 3-232-530-01 PLATE SHIELD (TRANS)
160 3-232-531-01 ADHESIVE SHEET (TRANS)
* 161 1-681-679-13 AC INLET BOARD
162 3-229-982-01 SPRING BATTERY (+ –)
* 163 1-681-676-13 BATY A BOARD
164 3-229-974-01 ANTENNA TREMINAL
165 3-229-969-01 CABINET LOWER
(NAVY BLUE: ORIGINAL TYPE)
165 3-229-969-11 CABINET LOWER (YELLOWE: ORIGINAL TYPE)
165 3-229-969-21 CABINET LOWER (RED: ORIGINAL TYPE)
165 3-229-969-31 CABINET LOWER (WHITE: ORIGINAL TYPE)
(US)
165 3-231-491-31 CABINET LOWER (WHITE: ORIGINAL TYPE)
(CND, E92, SP, KR, MX, AR)
165 3-231-491-41 CABINET LOWER (BLUE: ORIGINAL TYPE)
165 3-231-491-51 CABINET LOWER (ORANGE: ORIGINAL TYPE)
165 3-241-094-01 CABINET LOWER (WHITE: LIV TYPE)
165 3-241-094-11 CABINET LOWER
(for RED, BLUE, GOLD: PSYC TYPE) (US)
165 3-241-094-21 CABINET LOWER
(for RED, BLUE, GOLD: PSYC TYPE) (CND)
166 3-233-760-01 CUSHION, PU
ANT1 1-754-191-11 ANTENNA, TELESCOPIC
0 T901 1-437-319-11 TRANSFORMER, POWER
(US, CND, E92, TW, MX)
0 T901 1-437-320-11 TRANSFORMER, POWER (SP, KR, AR)
