Sony CFD-G550CP - Upper Cabinet Exploded Views (Part 2); Upper Cabinet Section (2) Exploded View

46
CFD-G550CP

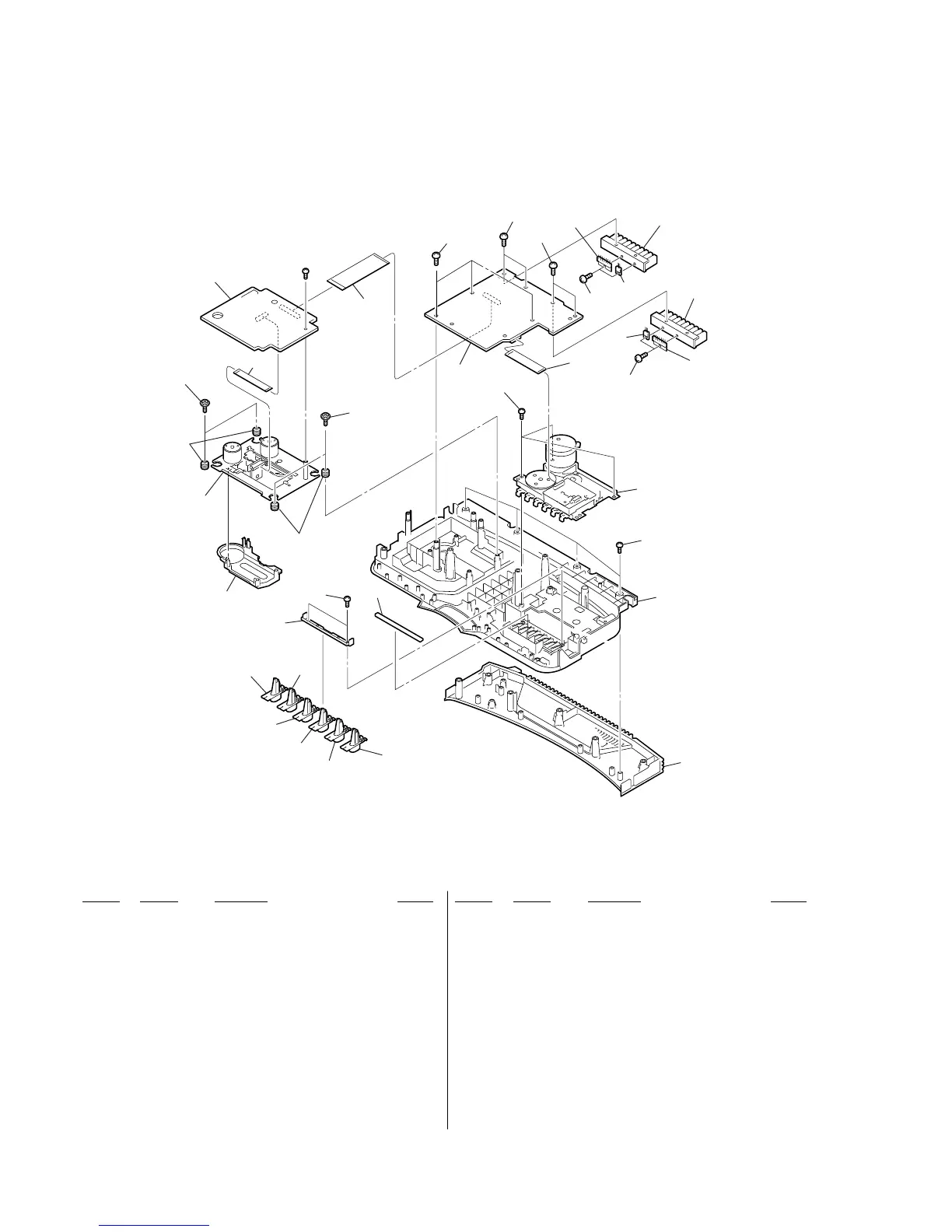

7-5. CABINET (UPPER) (2) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 3-264-890-01 BUTTON (PAUSE)
202 3-264-891-01 BUTTON (STOP/EJECT)
203 3-264-892-01 BUTTON (FF)
204 3-264-893-01 BUTTON (REW)
205 3-264-894-01 BUTTON (PLAY)
206 3-264-895-01 BUTTON (REC)
207 3-923-736-01 COVER, CD
208 3-931-379-21 RUBBER, VIBRATION PROOF
209 3-252-828-01 SCREW (B2.6), (+) PWH TAPPING
210 1-757-689-11 CABLE, FLEXIBLE FLAT (16 CORE)
211 3-931-379-31 RUBBER, VIBRATION PROOF
212 1-829-675-11 CABLE, FLEXIBLE FLAT (20 CORE)
213 3-264-896-01 HOLDER (MD BUTTON)
214 A-1068-203-A MAIN BOARD, COMPLETE (MX)
214 A-1068-212-A MAIN BOARD, COMPLETE (E41)
215 1-829-057-11 CABLE, FLEXIBLE FLAT (11 CORE)
216 3-264-900-11 CABINET (UPPER) (FRONT)
217 3-264-901-01 CABINET (UPPER) (BACK)
218 3-252-613-01 CUSHION (MD BUTTON)
219 3-254-143-01 SCREW (B3), (+) BV TAPPING
220 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
IC351 8-759-426-51 IC BA5417
IC371 8-759-426-51 IC BA5417
Q971 8-729-037-08 TRANSISTOR KTD2058Y
Q972 8-729-037-08 TRANSISTOR KTD2058Y
#1 7-685-853-04 SCREW +BVTT 2X6 (S)
217
206
218
216
219
209
220
213
215
219
214
205
204
202
207
203
201
209
210
212
208
211
219
220
220
220
220
tape mechanism deck
section
IC351
IC371
not supplied
not supplied
Q972
Q971
not supplied
(CD/MP3 board)
CD mechanism
section
#1
