Sony CFD-G550CP - CD Mechanism Exploded View; CD Mechanism Section Parts

48
CFD-G550CP
301 2-626-908-01 SHAFT, SLED
302 2-627-003-01 GEAR (B) (RP)
0303 8-848-483-12 OPTICAL PICK-UP (KSS-213C/C2RP)
304 2-626-907-11 GEAR (A)
305 3-713-786-51 SCREW +P 2X3
306 X-2162-709-2 CHASSIS ASSY (CDP), MOTOR (SPINDLE)
(including M701)
307 2-174-500-01 SCREW (2X3)
M702 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

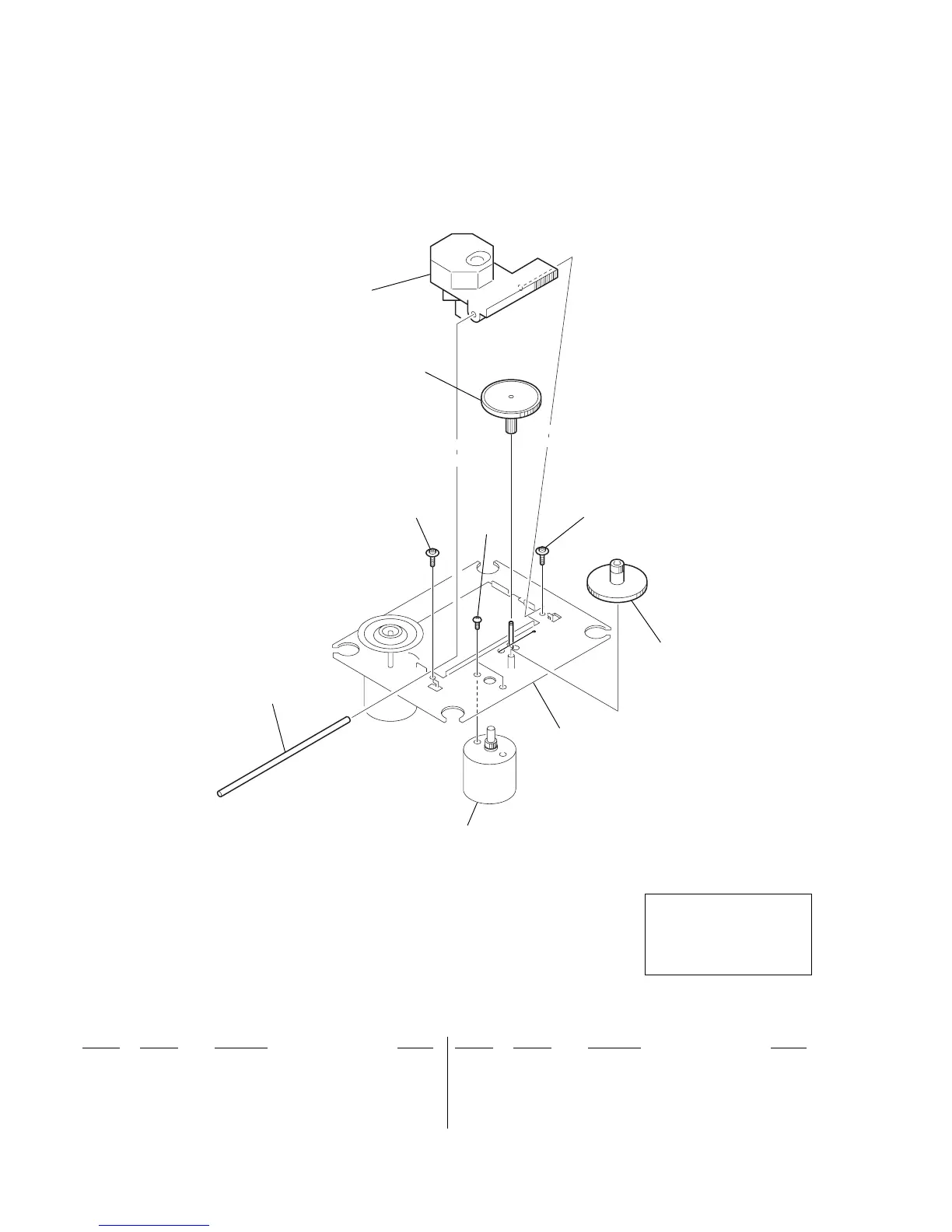

7-7. CD MECHANISM SECTION
(KSM-213RDP)
301
303
305 305
307
304
302
306
(including M701)
M702
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
