Sony CFD-S26 - Printed Wiring Boards - Main Section (New Type)

CFD-S26
37 37
1
A
B
C
D
E
F
G
H
I
J
234567891011
13 14
TP
(VT)
L-CH
R-CH
1-679-592-
1
CD BOARD
CNP702
2
CONTROL (1) BOARD
CNP401
S801
Z PUSH OPEN/CLOSE
L3
AM
FERRITE-ROD
ANTENNA
3
POWER (1) BOARD
CNP902
ANT1
FM
TELESCOPIC
ANTENNA
MAIN BOARD
LCD801
LIQUID CRYSTAL DISPLAY PANEL
US MODEL
1-679-963-
14
(14)
11
(11)
US,E4,AUS,
SP,AR MODEL
SP MODEL
E4,E92,MX,AUS,
SP,AR MODEL
E4,E92,MX,AUS,
SP,AR MODEL
US MODEL
US MODEL
E4,AUS,SP,AR
MODEL

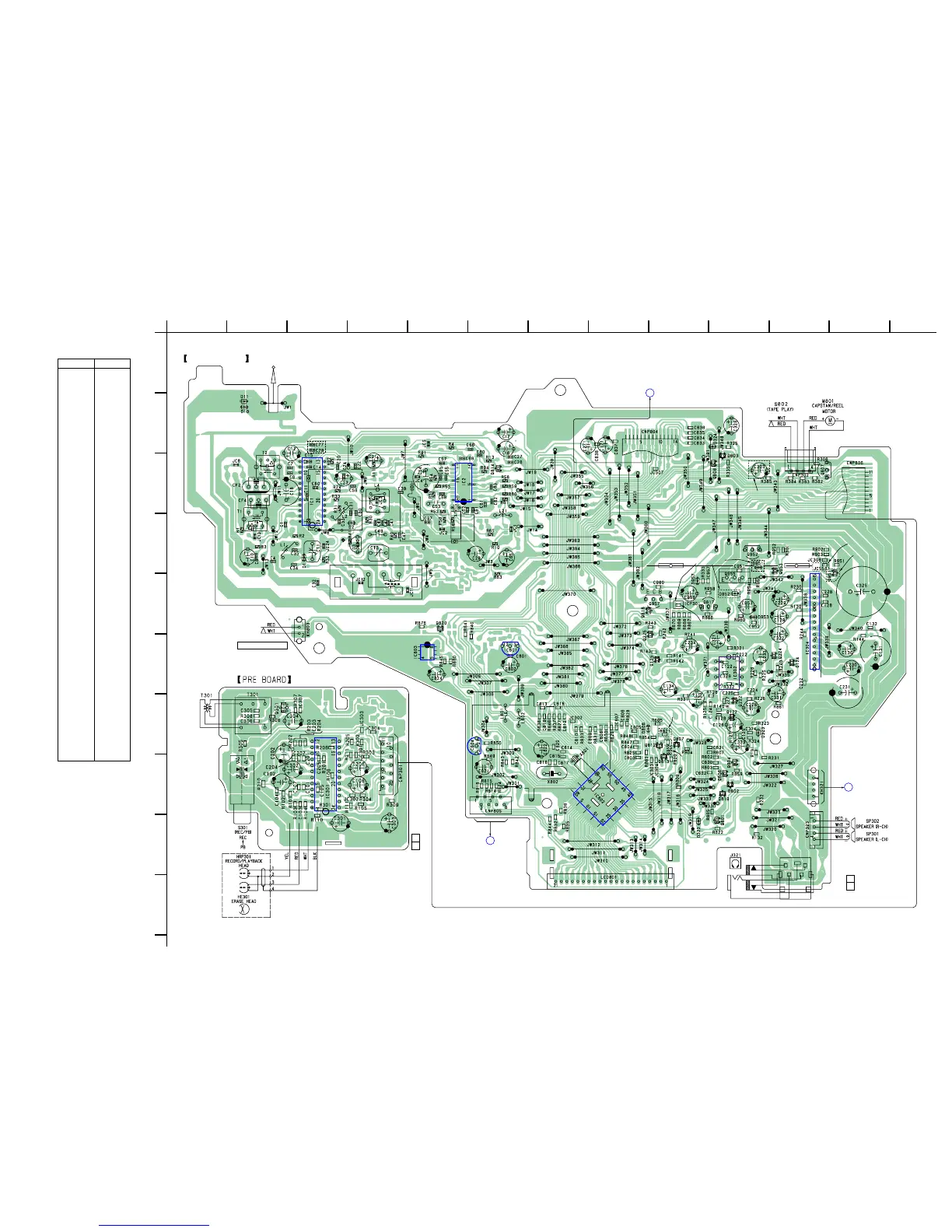

6-20. PRINTED WIRING BOARDS — MAIN SECTION (NEW TYPE) — • Refer to page 19 for Circuit Boards Location and page 22 for Common Note on Printed Wiring Boards.
(Page 35)
(Page 42)
(Page 44)
D1 D-3
D2 D-4
D3 D-4
D10 B-2
D11 B-2
D322 I-9
D323 G-10
D324 B-10
D802 H-10
D803 B-10
D806 G-9
D807 G-9
<D951> D-10
<D952> E-10
D953 E-10
D957 E-9
IC1 C-3
IC2 C-5
(IC301) H-3
IC302 F-10
IC304 E-11
IC801 F-6
IC802 H-8
IC803 F-5
IC804 G-6
Q122 G-10
Q124 F-11
Q125 F-9
Q222 F-10
Q224 F-11
Q225 E-8
(Q301) G-2
Q801 H-10
Q804 G-10
Q806 H-10
Q807 C-11
Q808 C-10
Q812 G-9
Q813 G-9
Q814 C-6
Q817 E-9
Q818 E-8
Q819 H-10
Q820 E-5
<Q951> D-12
Q952 D-10
Q953 D-11
Q955 E-10
Q957 E-9
• Semiconductor
Location
Ref. No. Location
< > : E4, E92, MX, AUS,
SP, AR MODEL ONLY
( ) : PRE BOARD
