Sony CFD-S26 - Schematic Diagram - Main Section (2;4) (New Type)

CFD-S26
39 39
IC B/D

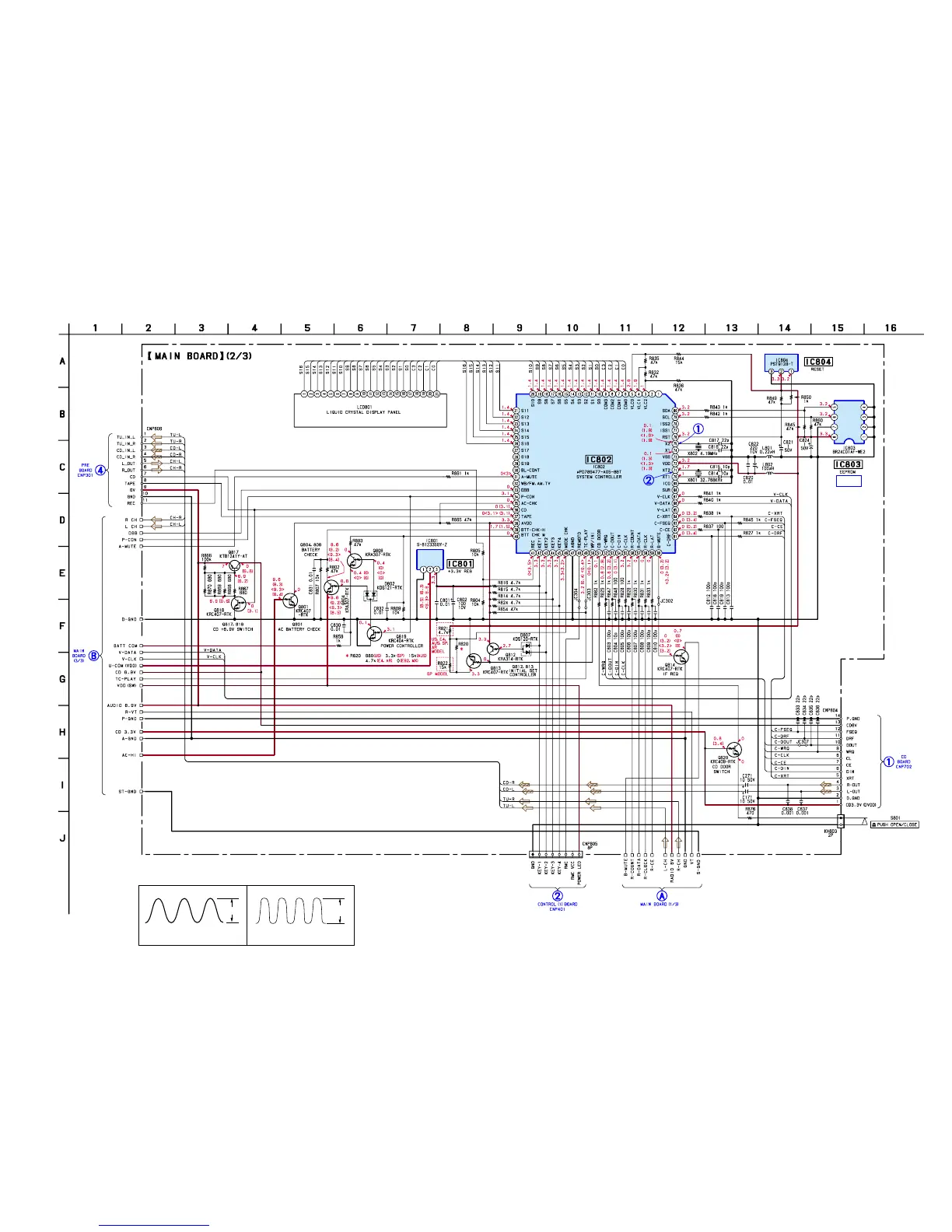

6-22. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) (NEW TYPE) — • Refer to page 22 for Common Note on Schematic Diagrams and page 47 for IC Block Diagrams.
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : PB
< > : REC
[ ] : CD PLAY
(Page 41)
(Page 40)
(Page 43)
(Page 38)
(Page 36)
• Waveforms
5Vp-p
1
IC802
ug
(X2)
2V/div 10µsec/div
4.19MHz
2
IC802
ua
(XT2)
2V/div 10µsec/div
5Vp-p
32.768kHz
