Sony CFD-S26 - Optical Pick-up Section View; Optical Pick-up Components

54
CFD-S26
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

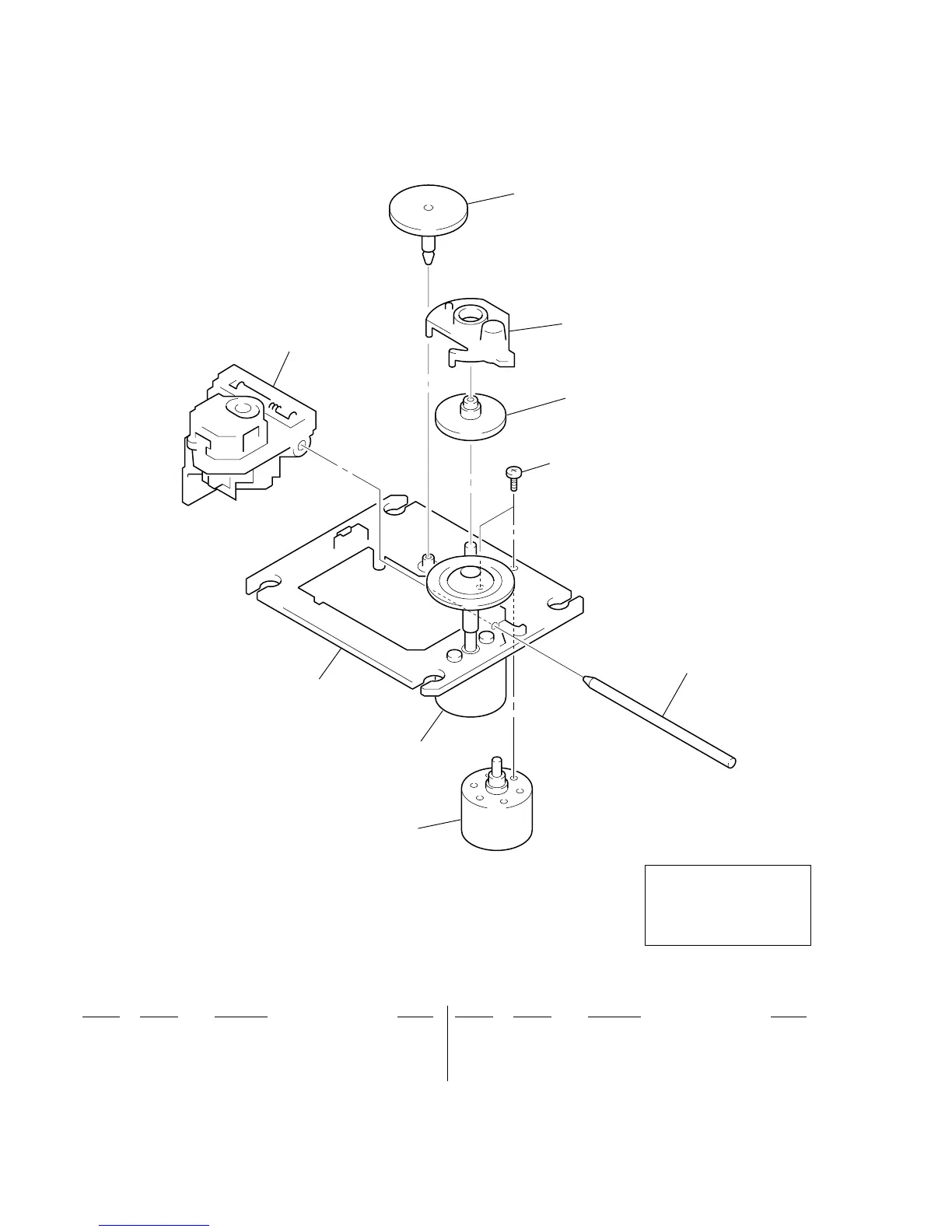

7-6. OPTICAL PICK-UP SECTION
(KSM-213CDP)
not supplied
M702
M701
253
251
252
254
256
255
0 251 8-848-483-05 PICK-UP, OPTICAL KSS-213C/Q-RP
252 3-713-786-51 SCREW +P 2X3
253 2-626-908-01 SHAFT, SLED
254 2-627-003-01 GEAR (B) (RP)
255 X-2162-709-1 CHASSIS ASSY (CDP), MOTOR (SPINDLE)
(including M701)
256 2-625-188-02 GEAR (A)
M702 X-2625-769-1 GEAR ASSY (MB), MOTOR (SLED)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ver 1.2
