Sony CFD-S26 - Schematic Diagram - Main Section (1;4) (New Type)

CFD-S26
3838
IC B/D
IC B/D

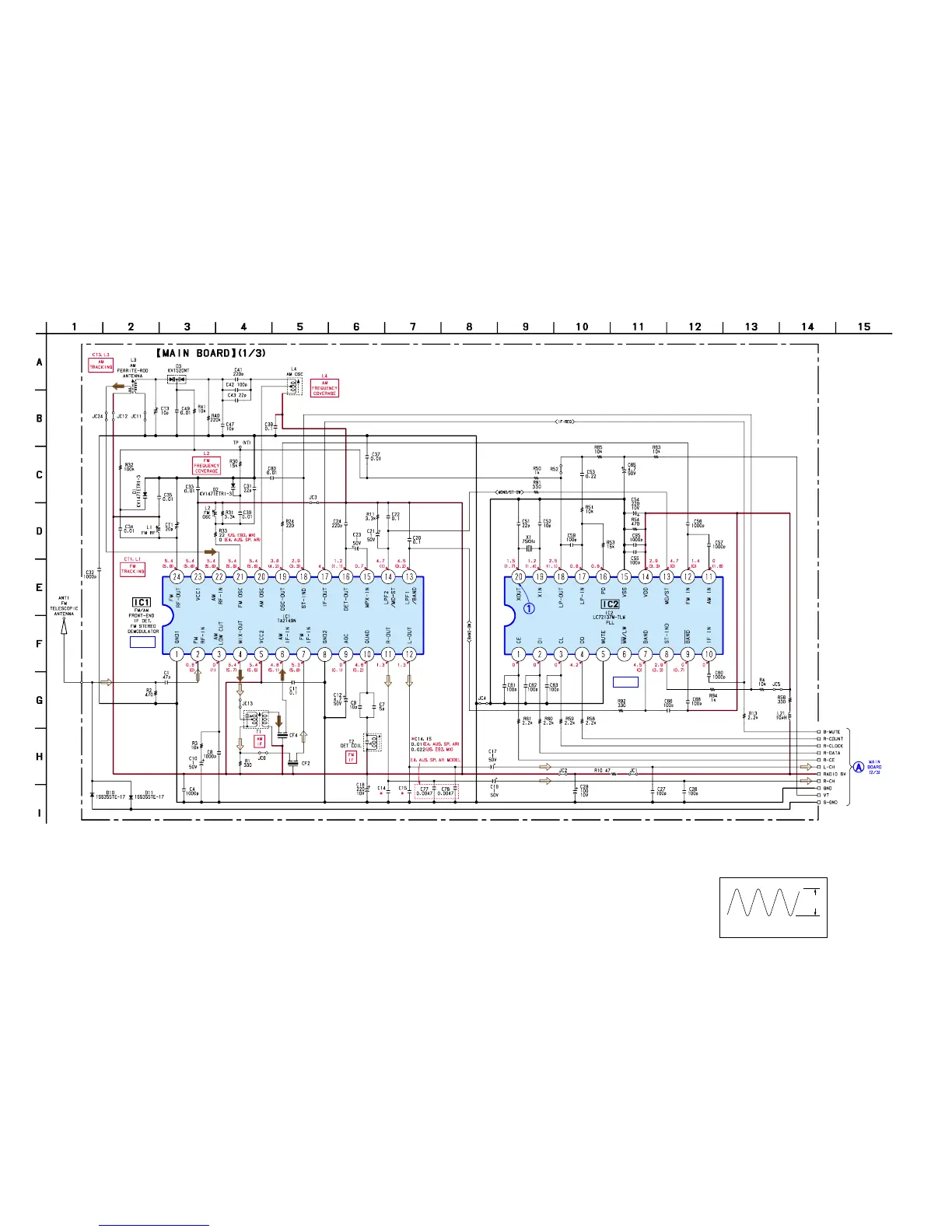

6-21. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) (NEW TYPE) — • Refer to page 22 for Common Note on Schematic Diagrams and page 46 for IC Block Diagrams.
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : AM
(Page 39)
• Waveform
1.5Vp-p
1
IC2
w;
(XOUT)
0.5V/div 5µsec/div
75kHz
