Sony CFD-S26 - Wires; Power (1) Board, Power (2) Board

9
CFD-S26

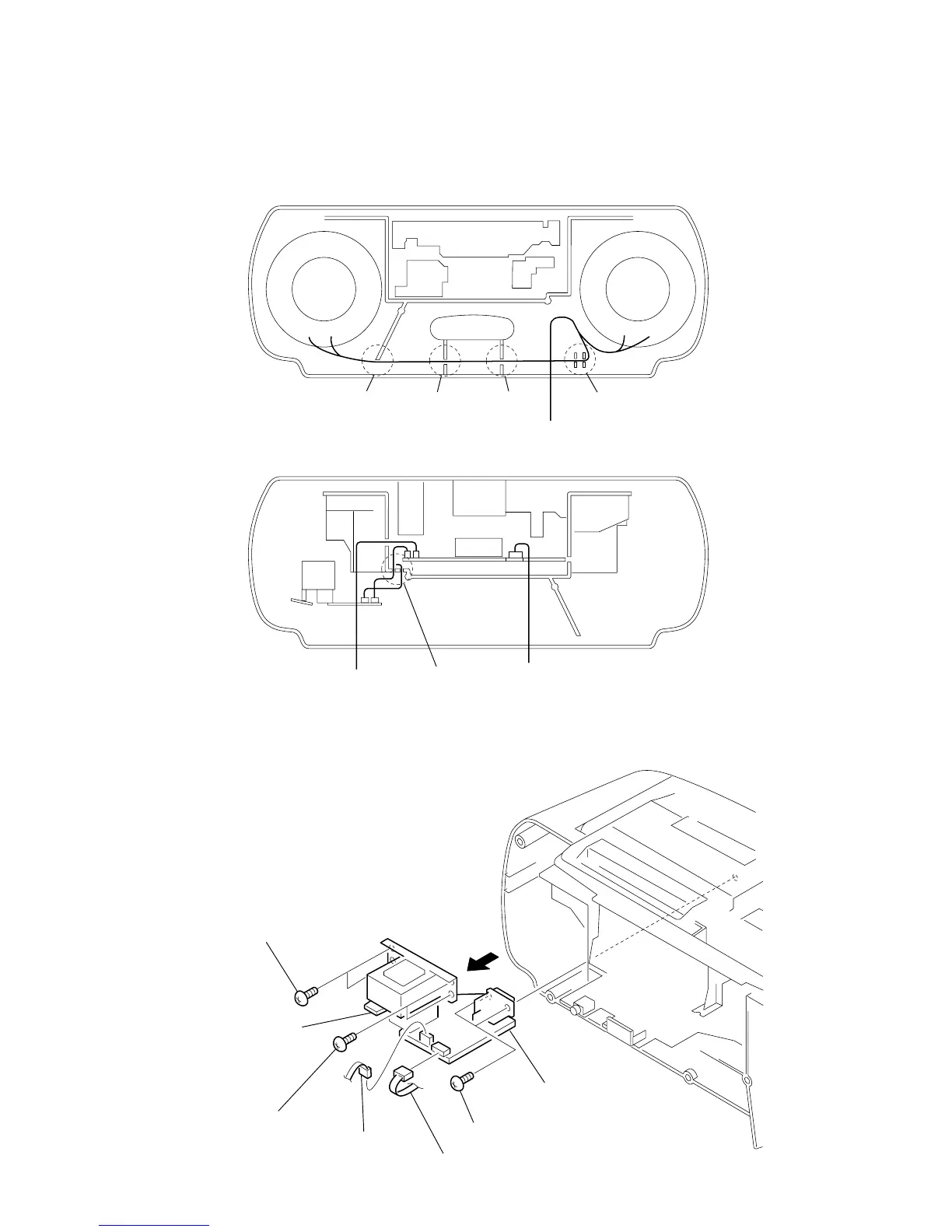

3-2. WIRES
3-3. POWER (1) BOARD, POWER (2) BOARD
Put flat cable and wires between the cabinets and push them in the
grooves located at A to E in the figure to prevent disconnection
before assembling the set.
CABINET (REAR)
CABINET (FRONT
)
AB
E
from speaker
from MAIN board
from CONTROL (1) board
CD
1 BVTP 3x10
2 BVTP 3x10
5 CNP901
6 CNP902
4
7
POWER (1) board
POWER (2) board
3 BVTP 3x10
