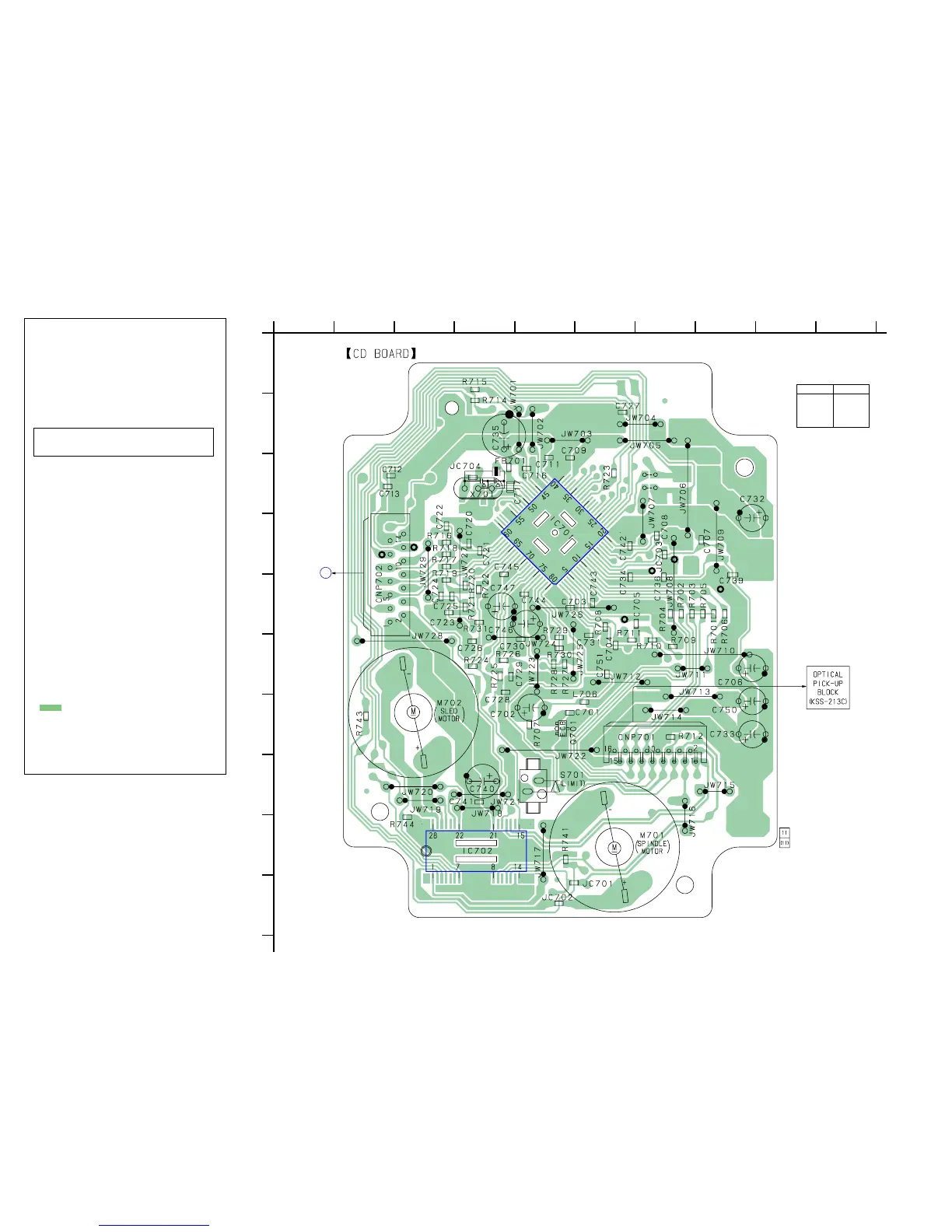

6-5. PRINTED WIRING BOARD — CD SECTION — • Refer to page 17 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
2345678910
TP
(RF)
TP
(FE)
TP
(TE)
TP(L-CH)
TP(R-CH)
TP
(VREF)
1
1-680-943-
MAIN
BOARD
CNP804
FY
TY
FX
TX
IC701 D-5
IC702 I-4
Q701 G-5
• Semiconductor
Location
Ref. No. Location
(Page 22)
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
Common Note on Schematic Diagrams:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
• A : B+ Line.
• H : adjustment for repair.
• Total current is measured with no cassette installed.
• Power voltage is dc 9V and fed with regulated dc power
supply from battery terminal.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : FM
f : AM
E : PB
a : REC
J : CD
• Abbreviation
CND : Canadian model.
E4 : AC 110-120V/220-240V area in E model.
E92 : AC 120V area in E model.
MX : Mexican model.
SP : Singapore model.
AR : Argentina model.
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
Common Note on Printed Wiring Boards:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
f
: internal component.
• : Pattern from the side which enables seeing.
• Abbreviation
CND : Canadian model.
E4 : AC 110-120V/220-240V area in E model.
E92 : AC 120V area in E model.
MX : Mexican model.
SP : Singapore model.
AR : Argentina model.
