Sony CFD-S36 - Exploded Views and Parts; Cabinet (Front) Section Exploded View

34
CFD-S36
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark

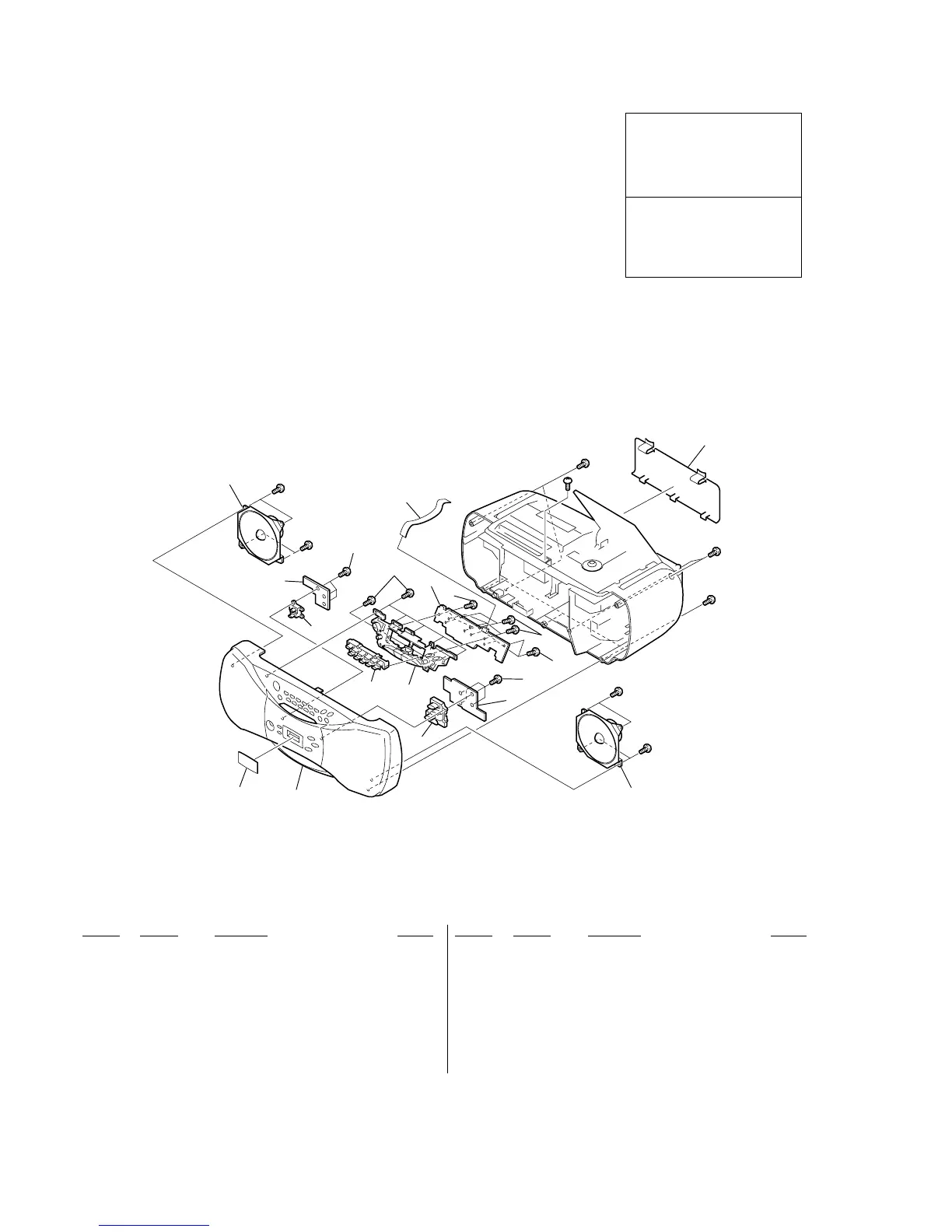

7-1. CABINET (FRONT) SECTION
Ref. No. Part No. Description Remark
1 X-3380-178-1 CABINET (FRONT) SUB ASSY (S)
2 3-224-360-11 WINDOW (LCD)
3 3-224-358-01 BUTTON (FUNCTION)
* 4 1-679-967-11 CONTROL (2) BOARD
5 4-951-620-11 SCREW (2.6X10), +BVTP
6 3-224-359-01 BUTTON (10 KEY)
7 3-224-356-01 BUTTON (POWER)
8 3-224-357-01 BUTTON (MODE)
* 9 1-679-968-11 CONTROL (3) BOARD
* 10 1-679-966-11 CONTROL (1) BOARD
* 11 1-757-559-11 CABLE, FLAT 8P
12 3-224-379-51 LID, BATTERY CASE (CND,E4,E92,MX)
12 3-224-379-61 LID, BATTERY CASE (SP,AR)
SP301 1-529-723-21 SPEAKER (10cm) (L-CH)
SP302 1-529-723-21 SPEAKER (10cm) (R-CH)
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
R
R
1
2
3
4
5
6
7
8
9
10
5
5
5
5
5
11
12
SP302
SP301
#1
#1
#1
#
2
#2
#2
#2
#1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
• Abbreviation
CND : Canadian model
E4 : AC 110-120V/220-240V area in E model
E92 : AC 120V area in E model
MX : Mexican model
SP : Singapore model
AR : Argentina model
