Sony CFD-S36 - Tape Mechanism Section-2 Exploded View

39
CFD-S36

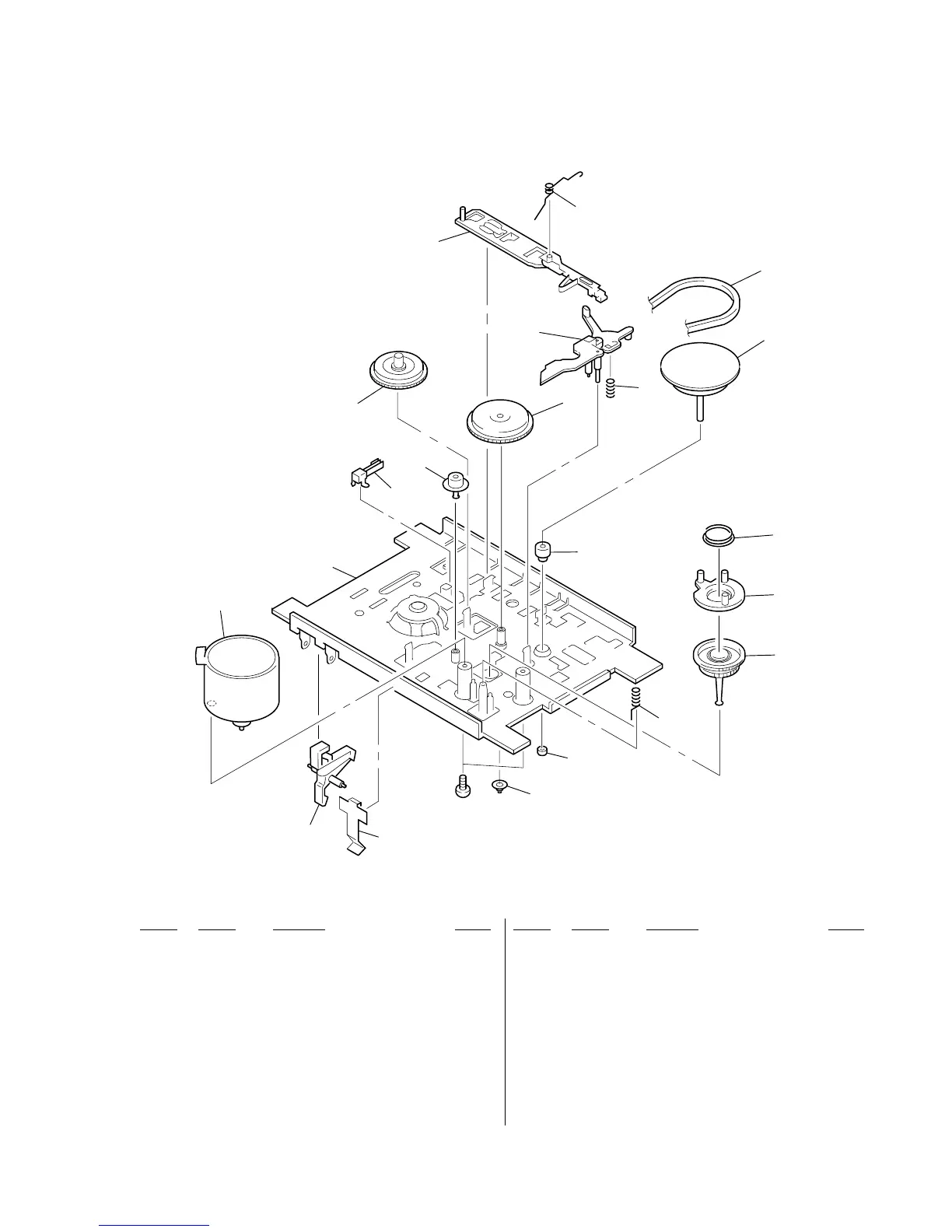

7-5. TAPE MECHANISM SECTION-2
(MF-V5-117)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
M801
S802
207
206
204
203
208
210
219
205
211
212
213
217
214
215
201
202
218
#4
209
216
201 3-933-029-01 LEVER, ERASING PREVENTION
202 3-933-182-01 SPRING, CASSETTE
203 3-932-995-01 GEAR (MID)
204 X-3371-667-1 CLUTCH ASSY
205 3-932-997-01 GEAR (CAM)
* 206 3-932-999-01 SLIDER (SW)
207 3-932-998-01 SPRING (GROUND), TORSION
208 3-009-648-01 LEVER (S.OFF)
209 3-936-438-01 LEVER (K)
210 X-3373-572-1 REEL ASSY (N), T
211 3-933-020-11 BELT
212 X-3377-877-2 FLYWHEEL ASSY
213 3-932-993-01 CHASSIS, OUTSERT
214 3-343-358-01 RING, RETAINING
215 3-223-156-01 SPRING (CAM), COMPRESSION
216 3-009-650-02 SPRING (K), COMPRESSION
217 3-937-760-01 SPRING (GROUND), COMPRESSION
218 3-934-336-01 BEARING
219 3-939-383-02 SPRING, COMPRESSION
M801 A-3320-446-A MOTOR ASSY (CAPSTAN/REEL)
S802 1-762-679-11 SWITCH, LEAF (TAPE PLAY)
