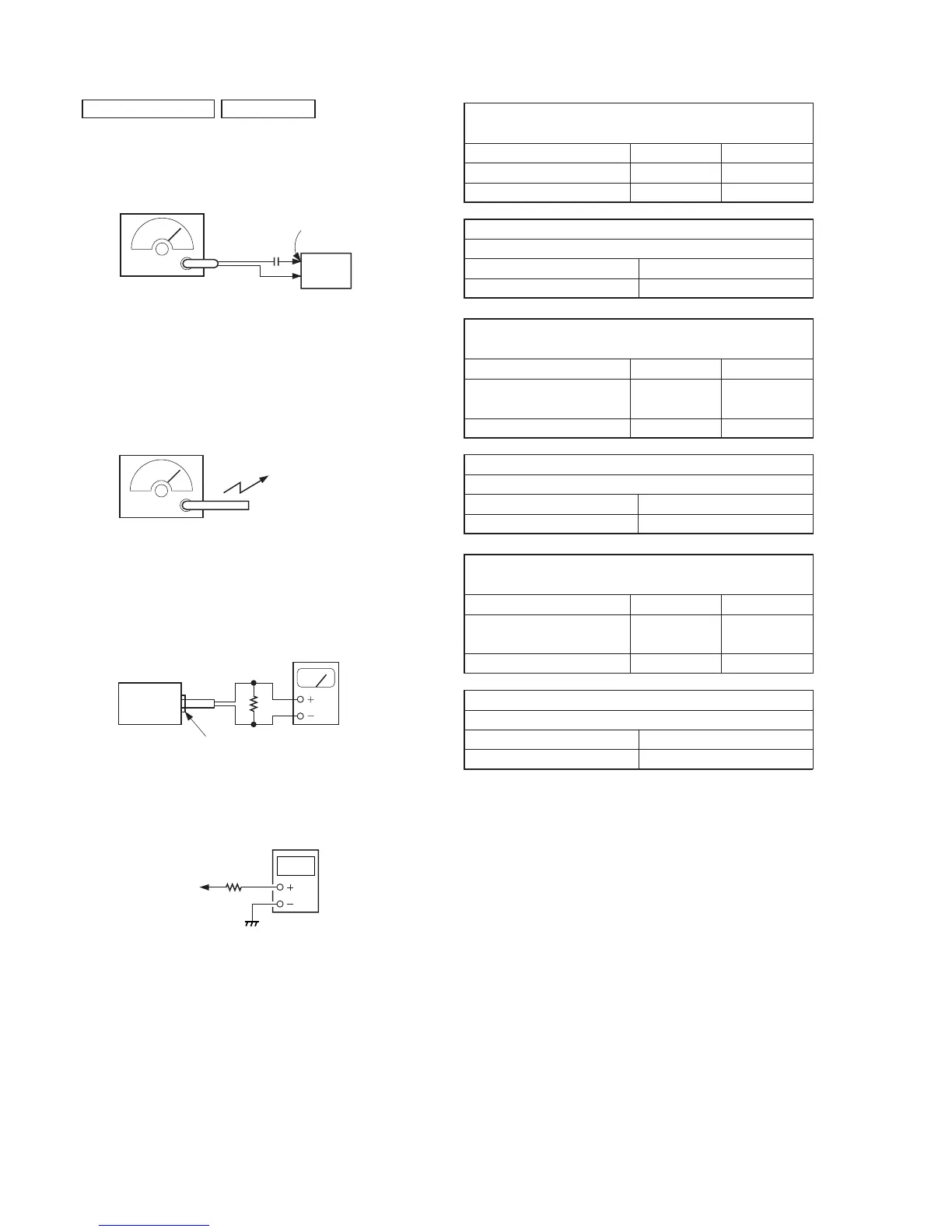

– 14 –
FM FREQUENCY COVERAGE
ADJUSTMENT
Frequency Display 87.5 MHz 108 MHz
Reading on Digital voltmeter 1.25 ± 0.3 V 5.2 ± 0.1V
Adjustment Part <confirmation> L2
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 CT1
87.5 MHz 108 MHz
MW FREQUENCY COVERAGE
ADJUSTMENT
Frequency Display 531 kHz 1,611 kHz
Reading on Digital voltmeter 0.8
+ 0.5 V
5.2
+ 0.5V
– 0.4 V – 0.4 V
Adjustment Part <confirmation> <confirmation>
MW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L3 CT3
621 kHz 1,404 kHz
LW FREQUENCY COVERAGE
ADJUSTMENT
Frequency Display 153 kHz 279 kHz
Reading on Digital voltmeter 0.6
+ 0.4 V
5.5 ± 0.1V
– 0.3 V
Adjustment Part <confirmation> L4
LW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L3 CT5
162 kHz 261 kHz
Adjustment Location: See page 15.
digital
voltmeter
100 k
Ω
TP (VT)
phones jack
set
32
Ω
level meter
(range: 0.5–5 V ac
Put the lead-wire
antenna close to
the supplied MW/LW
loop antenna.
AM RF signal
generator
TP (FM ANT)
FM RF signal
generator
0.01
µ
F
set
TUNER SECTION 0 dB = 1 µV
• FM Section
Setting:
BAND switch: FM
75 kHz frequency
deviation by 1 kHz signal
output level : as low as possible
• MW/LW Section
Setting:
BAND switch: MW or LW
30% amplitude
modulation by
400 Hz signal
• Connecting Level Meter (FM, MW and LW)
• Connecting Digital Voltmeter (FM, MW and LW)
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
To Next Page
