CFD-S45L/S47L

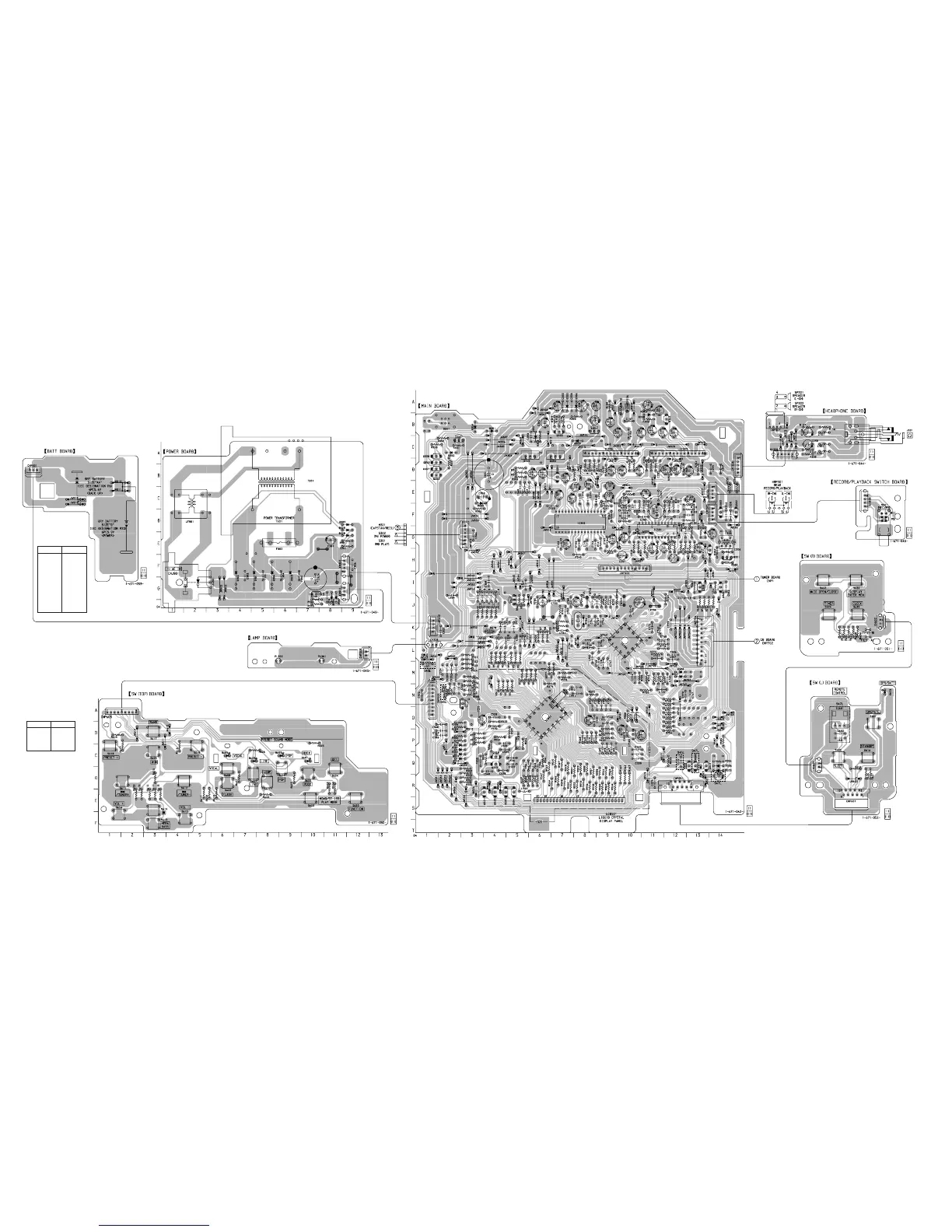

5-9. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 18 for Circuit Boards Location.
• Semiconductor
Location
(POWER Board)
Ref. No. Location
D901 G-5
D902 G-4
D903 G-6
D904 G-5
D905 D-9
D906 G-8
D907 G-8
D908 E-9
D909 D-9
IC901
• Semiconductor
Location
(SW (TOP) Board)
Ref. No. Location
D601 C-10
D602 C-9
D603 C-7
D604 C-6
(Page 24)
(Page 28)
