Sony CFD-V3 Service Manual

8
CFD-V3/V7/V7L

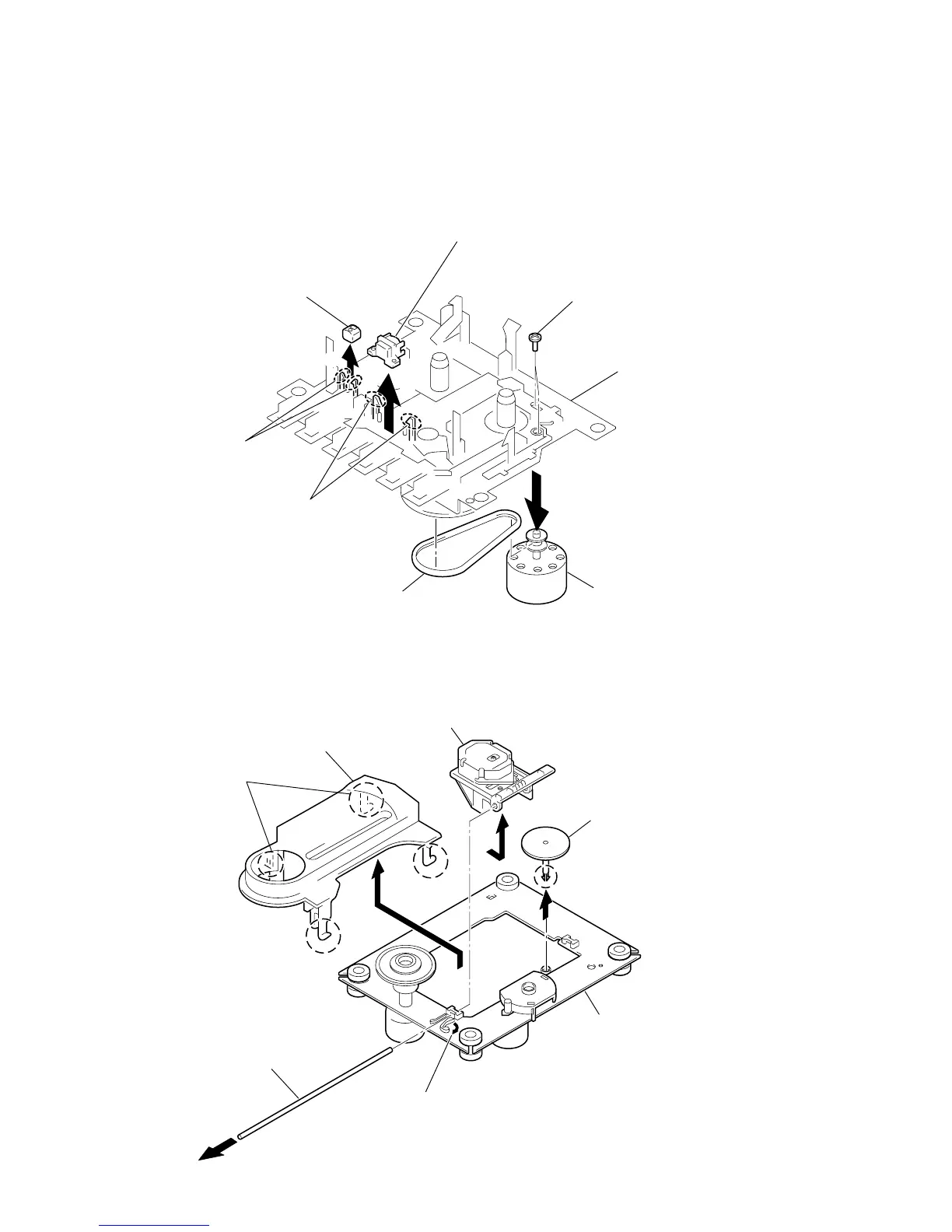

3-7. BELT, M601 (CAPSTAN / REEL MOTOR), “ HRP901 HEAD, MAGNETIC (RECORD/PLAYBACK) ”,
HE901 HEAD (ERASE)
Mechanism deck
HE901 Head (Erase)
HRP901 Head, Magnetic (Record/ Playback)
1 Screws
+B 2.6 × 5
7 Claws
5 Claws
4 M601
(Capstan/reel motor)
2
3 Belt
8
6
Ver 1.1 2001.04
3-8. OPTICAL PICK-UP (KSS-213C)
4
1
2
5
3 Bend the stopper
Chassis ASSY, motor (MB) (spindle
)
Shaft, sled
Claws
Claw
Claw
Claw
Cover, CD
Gear
Optical pick-up (KSS-213C)

Sony CFD-V3 Specifications

General

Brand	Sony
Model	CFD-V3
Category	CD Player
Language	English
