– 9 –
SECTION 4

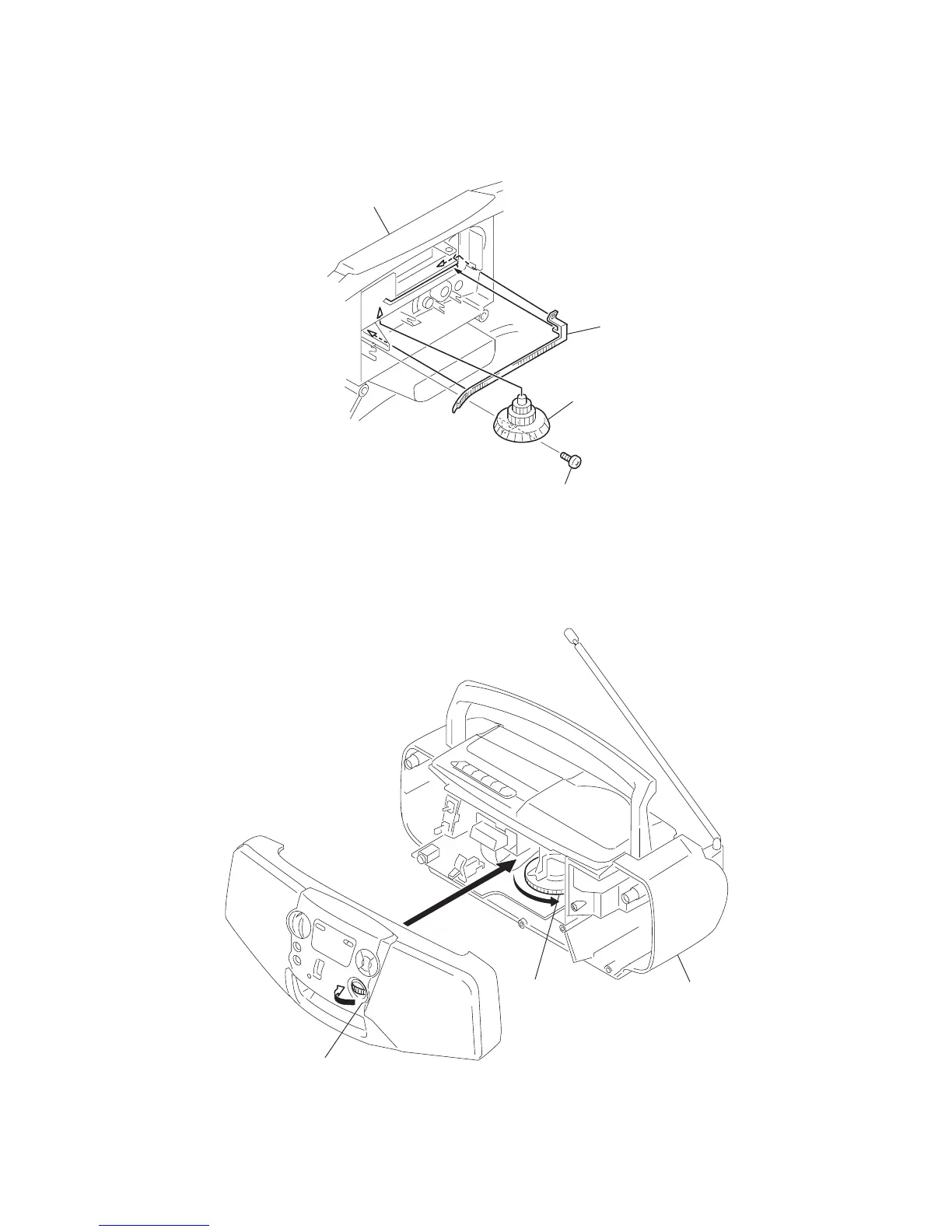

DIAL POINTER INSTALLATION
Note : Follow the installation procedure in the numerical order given.
1 Align the pointer with the groove of “cabinet (front) sub ASSY” and insert it as shown in the illustration.
2 Align knob (TU) with “cabinet (front) sub ASSY” and fasten the screw.
3 Turn the knob (TU) fully in the direction of the allow as shown in the illustration.
4Turn the tuning capacitor gear fully in the direction of the allow as shown in the illustration.
5 Fasten the “cabinet (front) sub ASSY” and cabinet (rear) with the screws.
1
Pointer
knob (Tu)
Cabinet (front) sub ASSY
2
Screw (+BVTP 2.6
×
8)
3
Tuning knob
4
Tuning capacitor gear
5
Cabinet (rear
To Next Page
