Sony CFM-S1 - SECTION 5 EXPLODED VIEWS; 5-1. Front Cabinet Section

16
CFM-S1
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

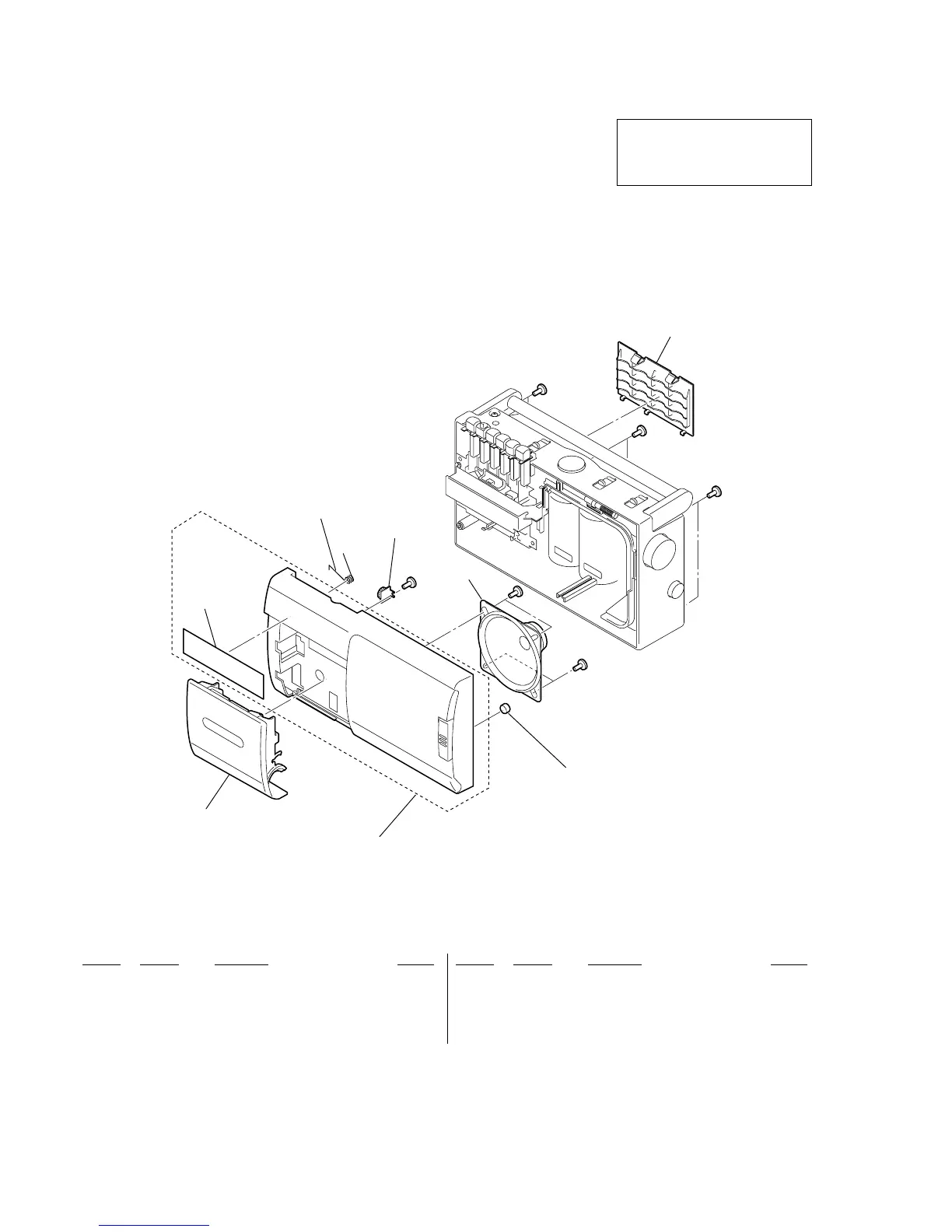

5-1. FRONT CABINET SECTION
#2
#2
#2
#1
#1
#1
ECM101
SP1
4
5
1
2
3
6
1 3-226-090-01 LID, CASSETTE
2 X-3380-354-1 CABINET FRONT SUB ASSY
3 3-226-062-01 SPRING (CAS)
4 3-922-112-31 DAMPER
5 3-226-056-01 LID, BATT
6 X-3380-400-1 WINDOW SUB ASSY(E,UAE)
6 X-3380-568-1 WINDOW SUB ASSY(EA)
ECM101 1-542-118-11 MICROPHONE, ELECTRET CONDENSER
SP1 1-529-973-11 SPEAKER
• Abbreviation
EA : Saudi Arabia
UAE : United Arab Emirates
