Sony CFM-S1 - 2-6. Installation Notes; 2-7. Dial Pointer Setting

5
CFM-S1

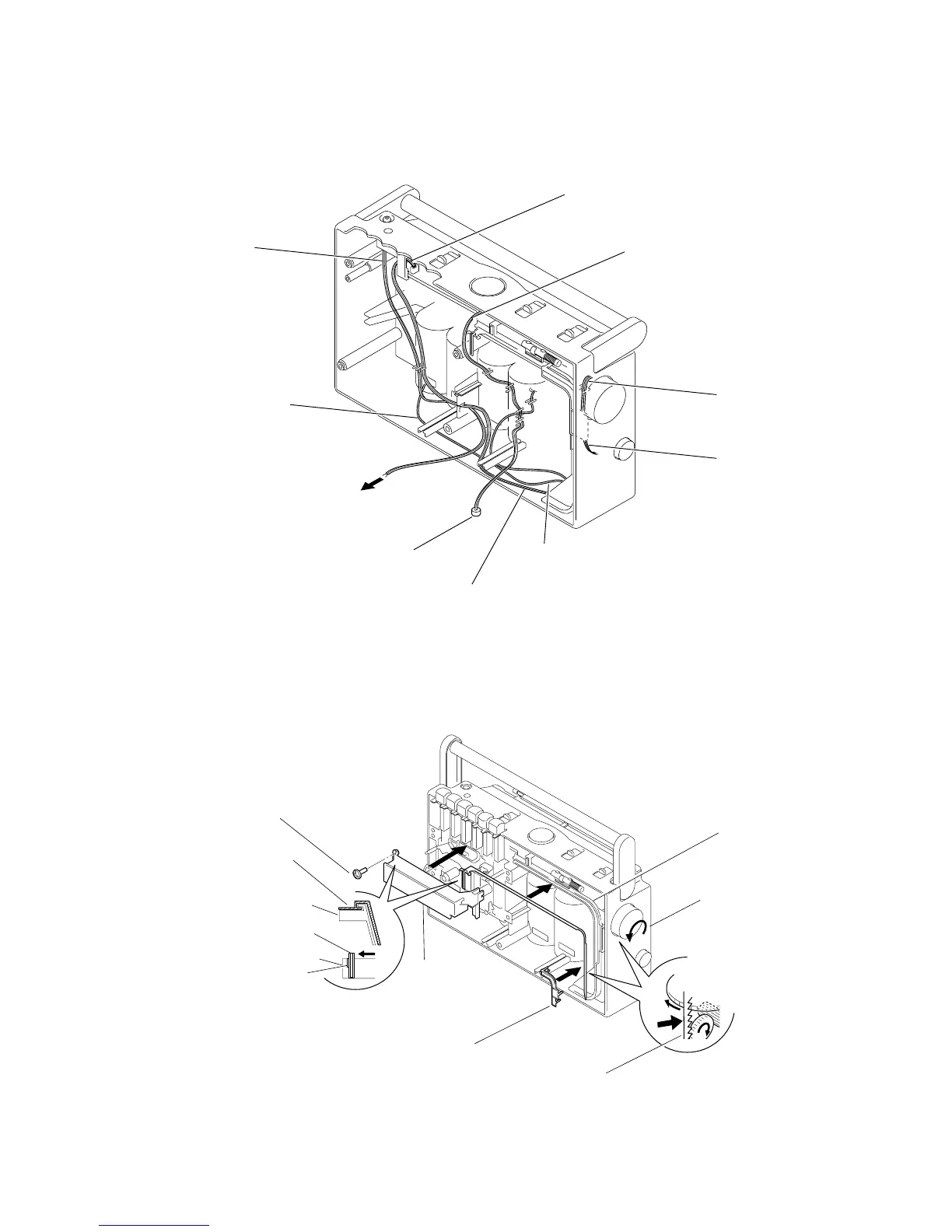

2-6. NOTE ON INSTALATION
To jack board
Power board (CN901)
Fine tune board (KH2
)
Main board (KH1)
Main board (KH101)
Main board (KH102)
To battery terminal board
To speaker
(SP1)
MIC (ECM101)
Power board (KH901)
2-7. DIAL POINTER SETTING
Dress the lead wires as shown in figure.
1
Turn the knob(tune)
fully counterclockwise.
2
Fit the pointer to the
chassis(B).
5
Set the left side of the
pointer to the convex
portion (a) on the
chassis(B).
Pointer
Chassis(A)
Chassis(B)
Chassis(B)
6
6
3
6 Hold the left side of pointer,
then insert the gear section
of pointer to groove of chassis(A).
7
Bracket(P)
4
Screw + BVTP 3X14
Pointer
Chassis(B)
Pointer
(a)
