Sony CFM-S1 - 2-4. Circuit Board Disassembly; 2-5. Battery and Power Board Disassembly

4
CFM-S1

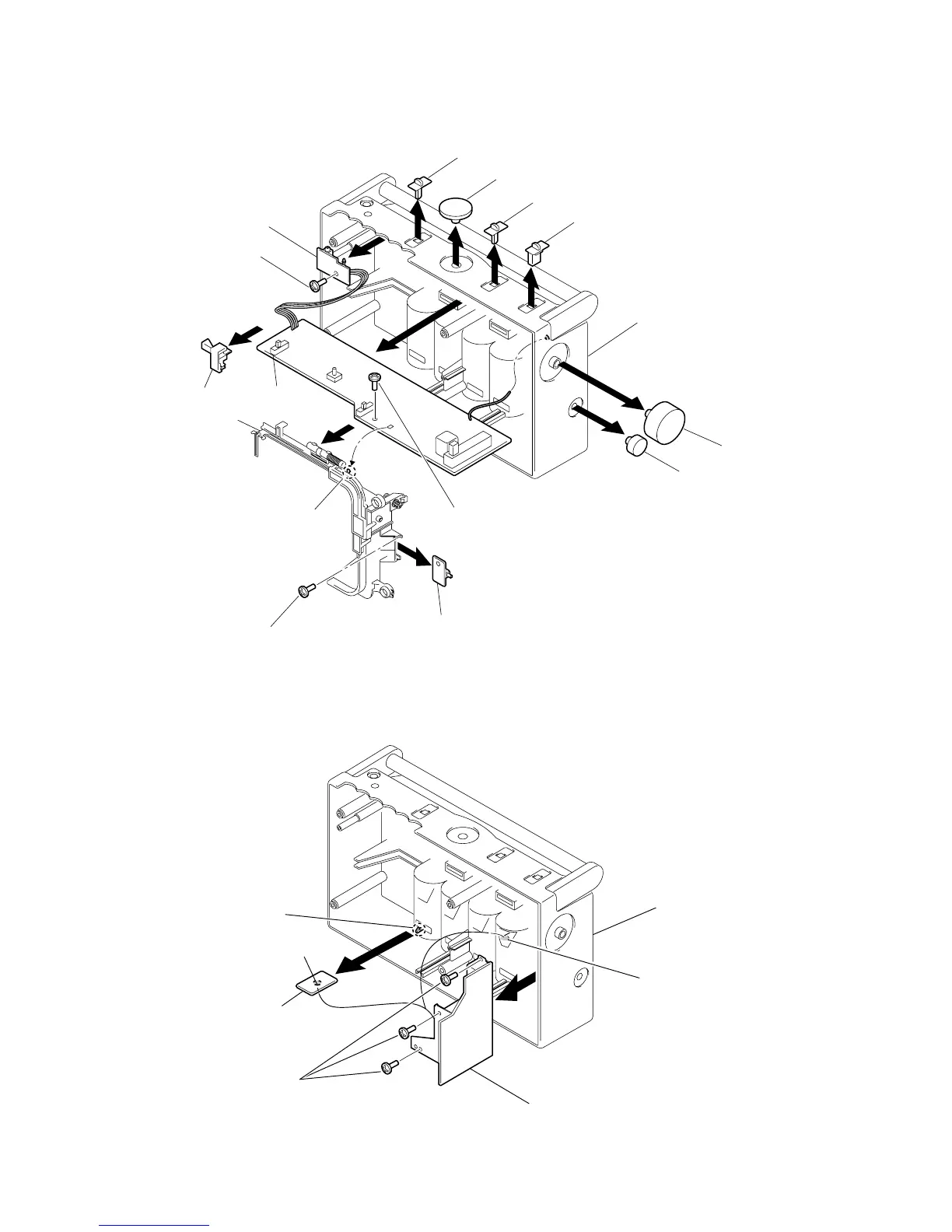

2-4. JACK BOARD, MAIN BOARD, FINE TUNE BOARD
2-5. BATTERY TERMINAL BOARD, POWER BOARD
8
6
3
3
3
Chassis(A)
Main board
7
Screws + BVTP 3X10
2
Screw +BVTP 3X10
5
Claw
Cabi, rear
Fine tune board
1
Knob(FT)
1
Knob(band)
1
Knob(function)
1
Knob(vol)
1
Knob(sound)
4
Screw +BVTP 3X10
Jack board
1
Knob(tune)
Bracket(PWB)
6
2
4 Remove Solde
r
Cabi, rear
Power board
3 Remove solder
Battery terminal board
5 Screws + BVTP 3X10
1 Claw
