Sony CFS-E2 Service Manual

— 19 —
101 3-014-809-01 FW ASSY
102 3-381-880-01 BELT
103 3-905-683-01 SPRING
104 3-381-878-01 SPRING (AZIMUTH)
105 3-014-810-01 LUG, GROUND
106 3-381-884-01 SCREW (HEAD)
107 3-905-687-01 SCREW (HEAD FIXED)
* 108 3-014-805-01 LEVER (REC)
109 3-014-806-01 HEAD, ERASER (HE901)
110 3-014-807-01 SCREW
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101
102
119
M901
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
103
105
106
107
108
109
104
110
S902
114
115
118
116
117
113
HRP901
121

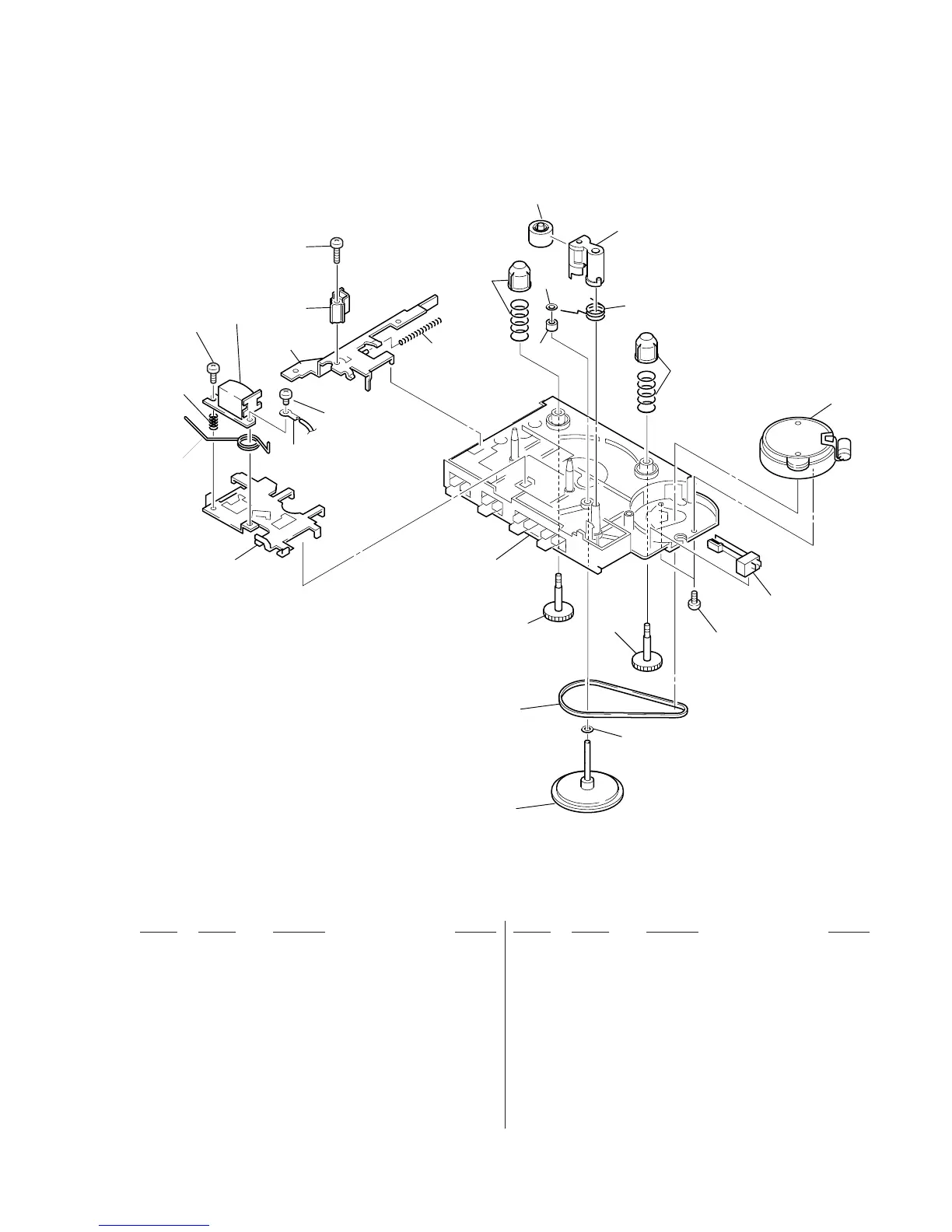

6-3. MECHANISM DECK-1 (MF-E2)
113 3-014-808-01 SPRING
114 3-381-860-01 PINCH ROLLER
115 3-381-850-01 ARM (PINCH) (F)
116 3-381-882-01 WASHER (FWF STOPPER)
117 3-934-907-01 WASHER (UPPER LOWER)
118 3-382-340-01 SPRING
119 3-381-883-01 SCREW (MOTOR)
121 3-934-906-01 WASHER (THRUST)
HRP901 1-500-461-11 HEAD, MAGNETIC (REC/PB)
M901 X-3373-891-1 MOTOR ASSY (CAPSTAN/REEL)
S902 1-692-302-11 SWITCH, LEAF (MD POWER)
