Sony CFS-E2 Service Manual

— 20 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
162
165
164
163
161
160
158
157
171
172
151
152
153
154
156
155
166
167
168
169
not supplied
not
supplied
not supplied
173

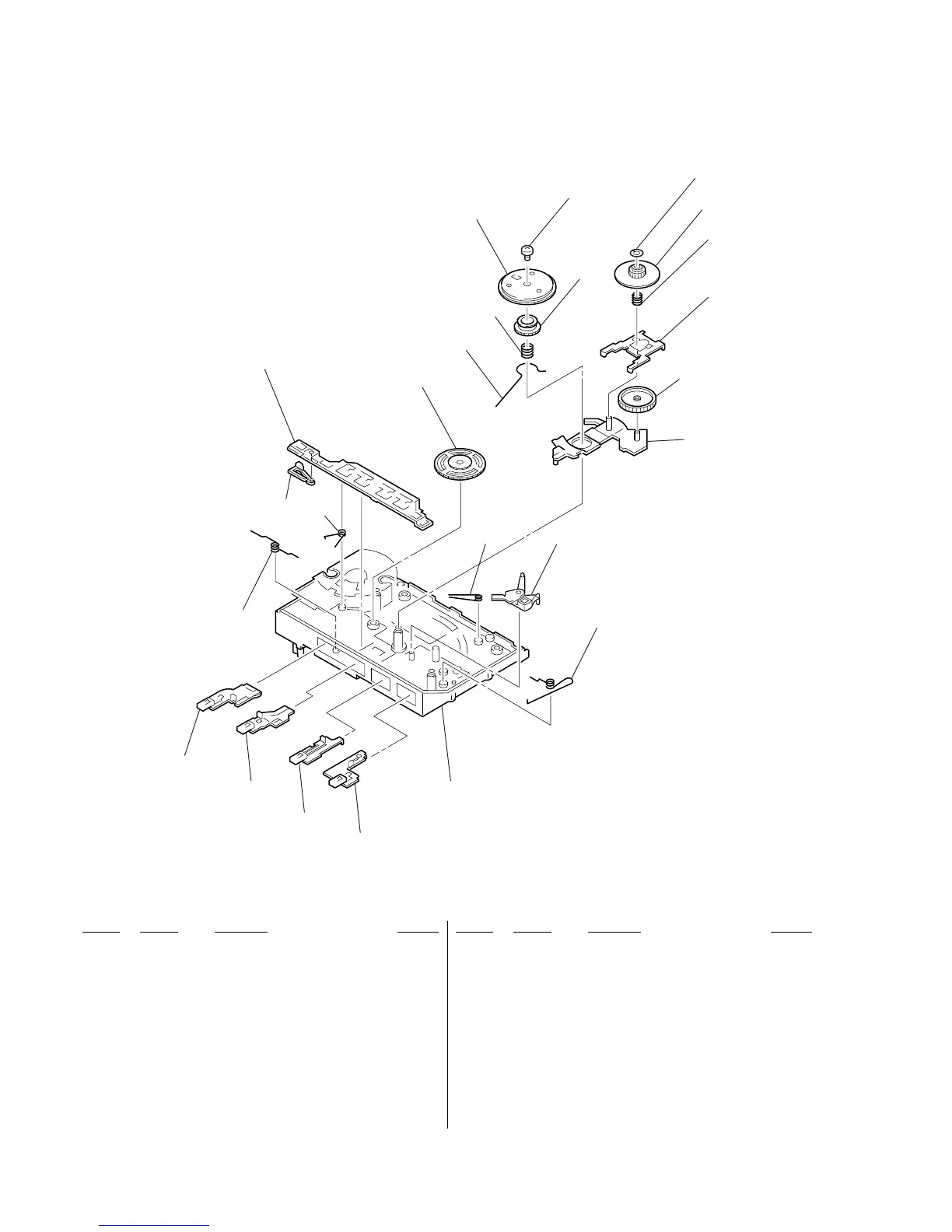

6-4. MECHANISM DECK-2 (MF-E2)
151 3-934-901-01 LEVER (STOP)
152 3-905-686-01 LEVER (PLAY)
153 3-381-854-01 LEVER (REW)
154 3-381-853-01 LEVER (FF)
155 3-381-866-01 SPRING (FR LEVER)
156 3-905-685-01 SPRING (CAPSTAN GROUND)
157 3-388-295-01 ARM (SW)
158 3-905-679-01 PLATE, LOCK
160 3-381-877-01 SPRING (SENSOR)
161 3-934-903-01 SPRING (CLUTCH)
162 3-381-844-01 GEAR (CLUTCH)
163 3-381-841-01 GEAR (CAM)
164 3-381-885-01 BUSHING
165 3-934-907-01 WASHER (UPPER LOWER)
166 3-934-899-01 GEAR (TU)
167 3-934-904-01 SPRING (UPPER LOWER)
168 3-934-902-01 LEVER (WEDGE)
169 3-905-710-01 ARM (TU)
171 3-381-851-01 ARM (CANCEL) (T)
172 3-905-684-01 SPRING (STOP LOCK)
173 3-381-840-01 GEAR (IDLER A)
