Setting Up

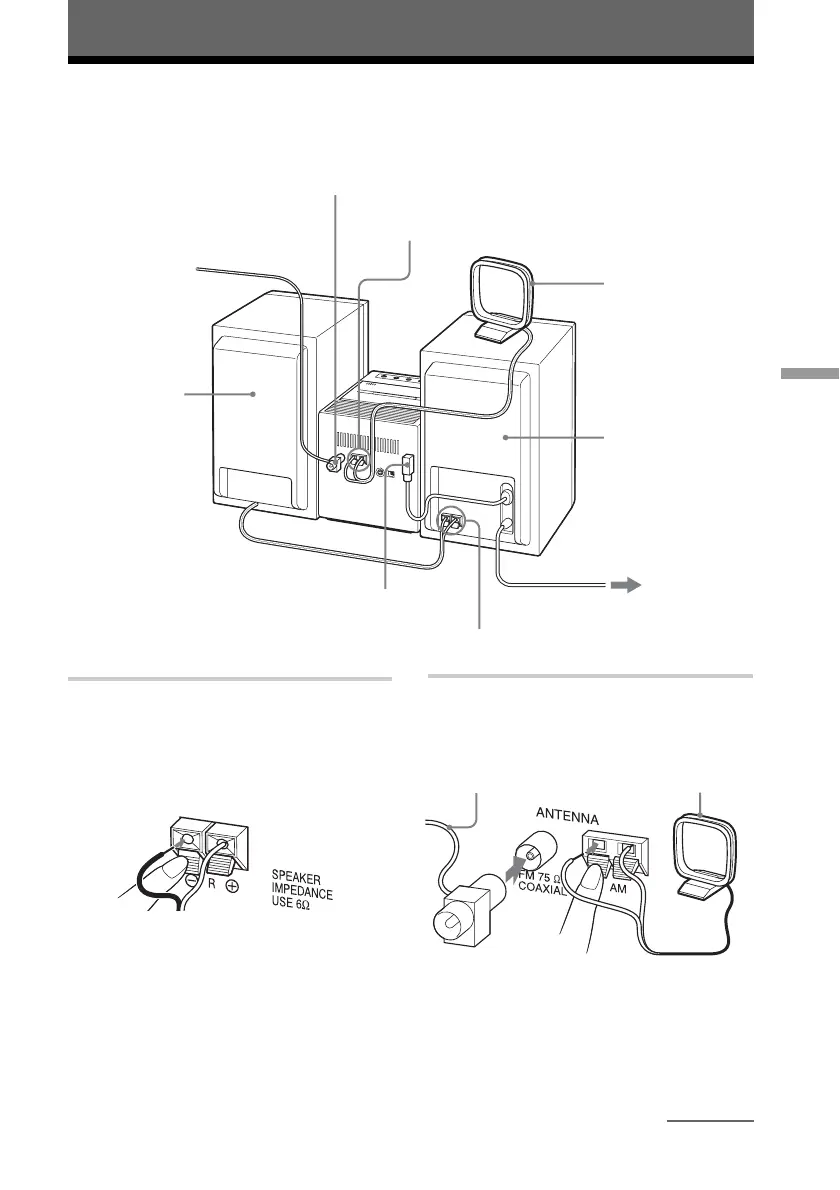

Hooking up the system
Make sure you turn off the power before making any connections.
1 Hooking up the speakers
Connect the speaker cord from the right
speaker to the left speaker; the white
wire to red terminal and the black wire
to the other terminal.
3 To a wall outlet
1 Speaker terminals
AM loop
antenna
2 FM antenna terminal
Speaker cord
Right speaker
Left speaker
FM
antenna
2 AM antenna terminal
2 Hooking up the antennas
* Keep the antennas horizontal as possible.
** Reorient the antenna to improve broadcast
reception.
FM antenna
(supplied)*
AM loop
antenna
(supplied)**
3 Power inlet
