Optional Components
55
GB
To enhance your system, you can connect optional components. Refer to the operating instructions
provided with each component. European model is used for illustration purposes only.
A DVD DIGITAL OUT jack
Use a digital optical cord (square, not supplied)
to connect an amplifier with a digital optical
input jack. Sound is then output when the system
function is set to DVD. By connecting this
system to the optical input jack of the optional
amplifier equipped with Dolby Digital or DTS
decoder, you can enjoy the 5.1 channel sound. If
the jack is covered with a cap, remove it before
use.
Notes
• If you press AUDIO, SOUND FIELD or the buttons
related to karaoke mode, or if you connect or
disconnect headphones, the sound cuts off for a
moment.
• Digital audio cannot be output when playing a Super
Audio CD.
B VIDEO/SAT IN L/R jacks
Use audio cords (not supplied) to connect an
optional analog component (VCR or satellite
tuner, etc.) to these jacks. You can then listen to
the sound from the component through this
system.
C VIDEO/SAT OUT L/R jacks
Use audio cords (not supplied) to connect an
optional analog component (VCR or MD deck,
etc.) to these jacks. You can then output audio to
the component from this system.
Note
If you press AUDIO, SOUND FIELD or the buttons
related to karaoke mode, or if you connect or
disconnect headphones, the sound cuts off for a
moment.

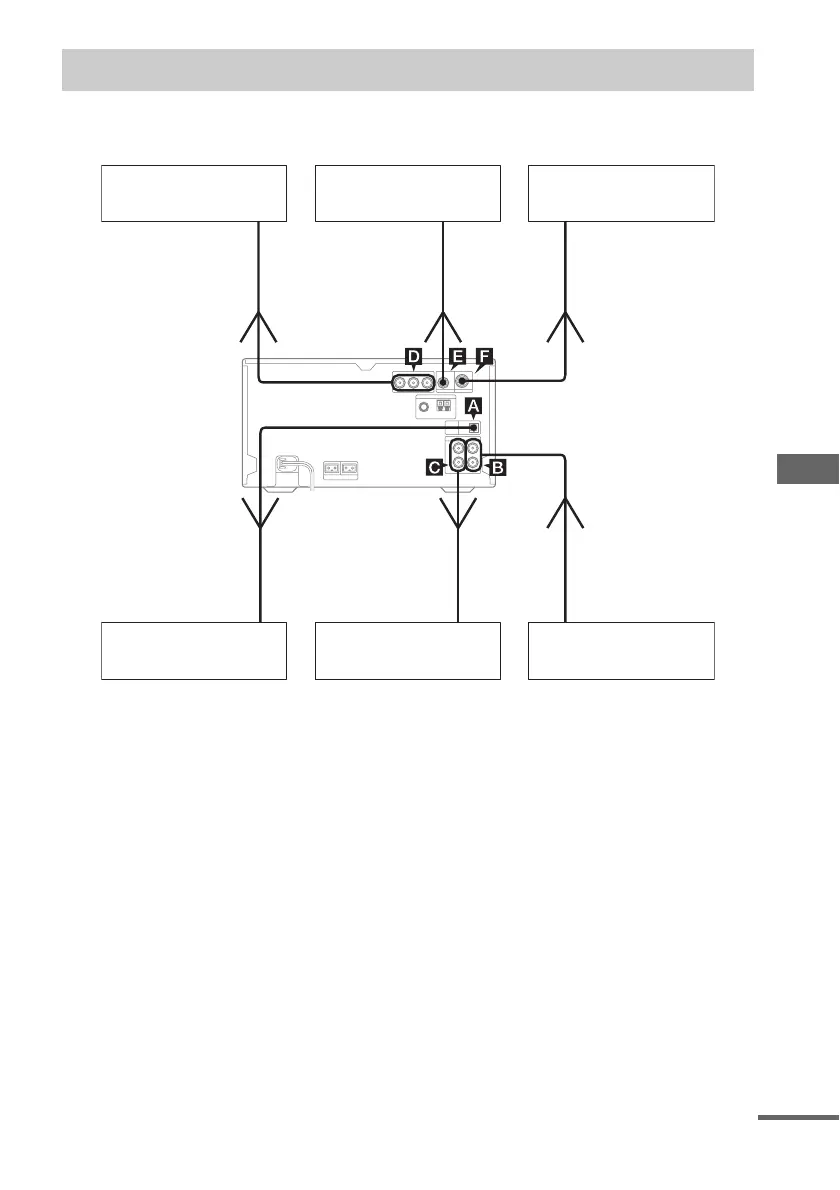

Hooking up optional components
Amplifier
To the component video
input jack of the TV or
projector
To the audio input
jack of the connected
component
From the audio output
jack of the connected
component
VCR or satellite tuner, etc.
TV or projector
To the digital input
jack of the digital
component
VCR or MD deck
TV
To the S video input
jack of the TV
TV
To the video input
jack of a TV
