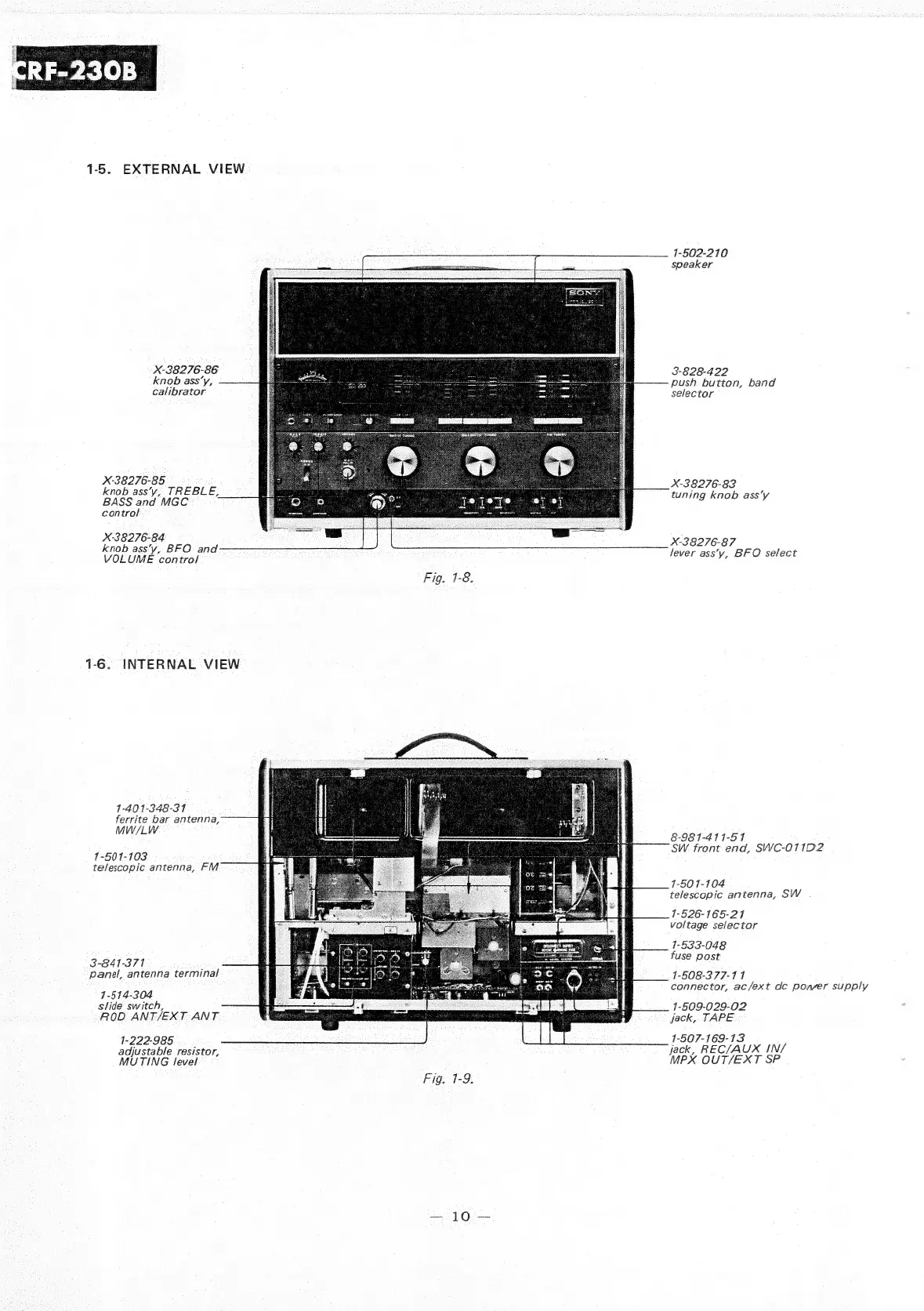

1-5. EXTERNAL VIEW
X-38276-86
knob ass’y,
calibrator
X-38276-85
knob ass’y, TREBLE,
BASS and MGC
control
X-38276-84
knob ass‘y, BFO and
VOLUME control
1-6. INTERNAL VIEW
1-401-348-31
ferrite bar antenna,
MW/LW
7-501-103
telescopic antenna, FM
3-841-371 :
Panel, antenna terminal
717-514-304
slide switch,
ROD ANT/EXT ANT
171-222-985
adjustable resistor,
MUTING level
Fig. 1-8.
7 O.—
171-502-210
speaker
3-828-422
push button, band
selector
X-38276-83
tuning knob ass’y
X-38276-87
lever ass’'y, BFO select
8-981-411-5717
SW front end, SWC-011D2
1-50 1-104
telescopic antenna, SW .
1-526-165-27
voltage selector
1-533-048
fuse post
1-508-377-1711
connector, ac/ext dc poner supply
1-509-029-02
jack, TAPE
1-507-169-13
jack, REC/AUX IN/
MPX OUT/EXT SP
